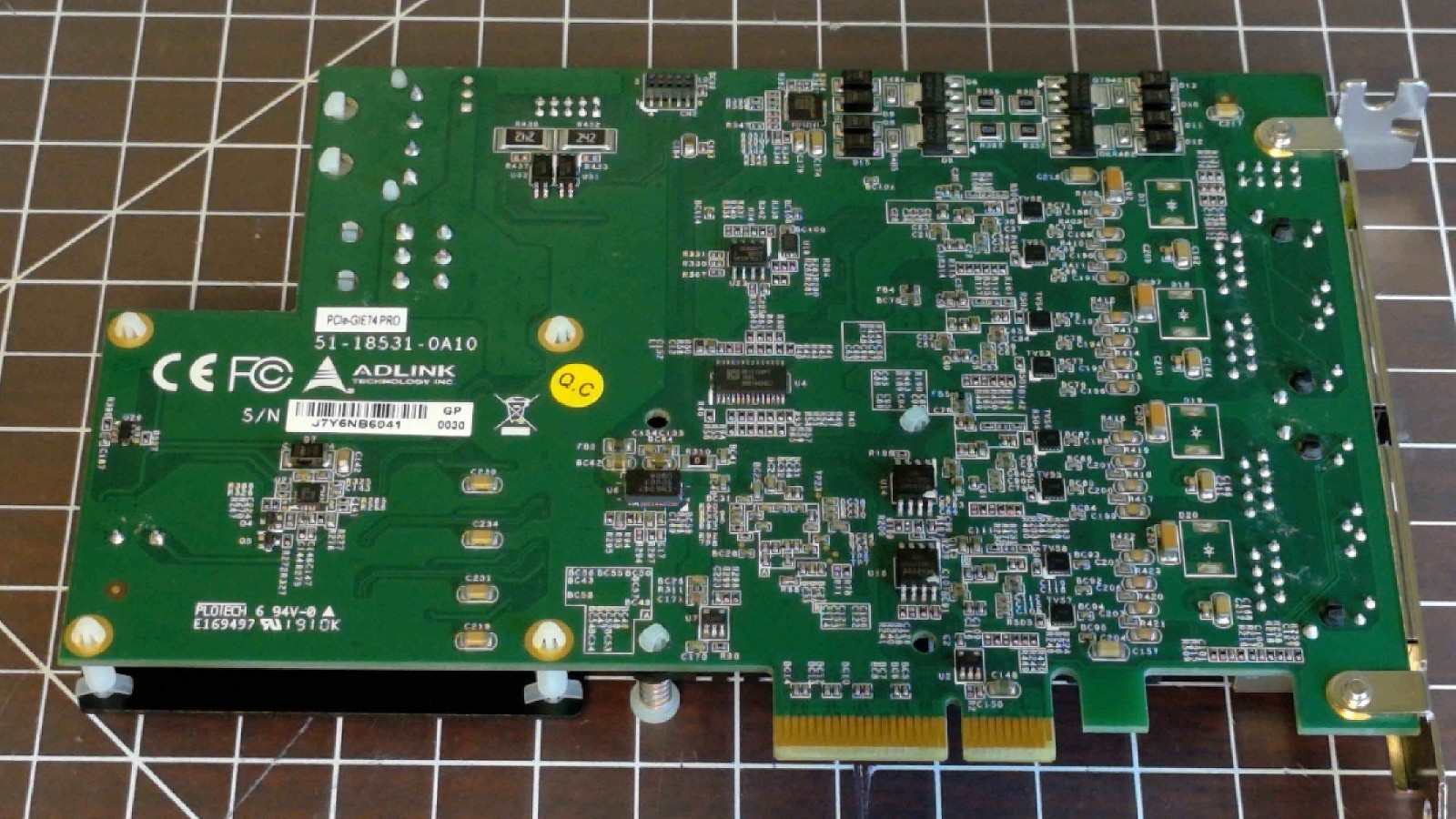

The ADLINK PCIe-GIE74 PRO is a 4-channel PCI Express GigE Vision PoE+ frame grabber designed for machine vision and industrial imaging applications. It features four independent Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support, enabling it to power and capture data from multiple GigE Vision cameras simultaneously. The PRO version includes features like hardware trigger over Ethernet, software license management, and up to 120W PoE power from the PCIe bus, 4-pin, or 6-pin Molex connector. It also provides PoE protection and automated power budget control for enhanced reliability.
Four Gigabit Ethernet Ports:Supports up to four independent Gigabit Ethernet ports for connecting GigE Vision cameras.
PoE+ (Power over Ethernet Plus):Complies with IEEE 802.3at, providing up to 30W per port for powering connected cameras.
PCIe x4 Interface:Uses a PCI Express x4 interface for high-speed data transfer between the frame grabber and the host computer.
High-Speed Data Transfer:Achieves data transfer rates up to 1 Gb/s per port, enabling efficient image capture.
PoE Protection and Management:Includes features for PoE protection, automated power budget control, and easy-to-use utility for PoE power management.
Trigger over Ethernet (PRO):The PRO version supports hardware trigger over Ethernet with Action Command, enabling precise synchronization with other devices.
Software License Management (PRO):Includes software license management features.
Wide Operating Temperature:Operates within a temperature range of 0°C to +70°C, making it suitable for various industrial environments.
Compact Size:Measures 167.6 mm x 106.6 mm (6.6 x 4.2 inches).
Multiple Cameras, Multiple Cards:Can support multiple cameras and multiple cards in a single system for large-scale imaging applications.
PoE Power Options:Offers various PoE power options, including up to 120W from PCIe, 4-pin, and 6-pin Molex connectors.
