Professional Marine DiagnosticsANCEL MR500 Marine Diagnostic Scanner for Yamaha
All-system diagnostics, live data, active tests and 20+ service functions for compatible Yamaha outboards and personal watercraft.
Compatibility Notice
Designed only for compatible Yamaha marine models. Coverage and available functions vary by model, year and installed control module. Please send us the exact model and year before purchase if you are unsure about compatibility.
Product Overview
The ANCEL MR500 is an Android-based diagnostic tool developed for marine maintenance and troubleshooting. Its 5-inch color touchscreen and streamlined diagnostic platform provide automatic vehicle identification, intelligent system search, one-touch response, Wi-Fi updating and built-in help resources.
Key Features
- Complete diagnostic functions: ECU information, read and clear fault codes, live data, freeze-frame data, active tests, settings, coding, operating-hour readings, initialization and more.
- Multiple live-data views: Review data as text, waveforms or gauges for easier fault analysis.
- Record and replay: Save live data for later review to help locate intermittent sensor and component faults.
- 20+ special functions: Includes configuration, maintenance-reset and setup functions where supported.
- Remote technical support: Scheduled remote assistance is available when arranged with the seller.
- Marine applications: Compatible Yamaha outboards, personal watercraft, motorboats, inboard systems and generator engines.
20+ Special Functions
Supported functions may include automatic scan and identification, control-module programming, console quantity setup, steering-control setup, pedal-throttle setup, active-trim setup, auxiliary-joystick setup, instrument and compass configuration, drive initialization, console setup, TDS reset, tilt-limit setup, SMUX configuration, touchpad configuration, key programming, maintenance reset, idle adjustment and engineer-level functions.
Important: Special functions are vehicle-dependent. Not every function is available on every compatible model. Active Test / Bi-Directional Control
The MR500 can send commands to supported components so you can check their response without relying only on visual inspection. This helps isolate faults and verify component operation. Available tests depend on the connected system.
ANCEL MR500 For Yamaha Marine Coverage
Supports many For Yamaha marine outboard and personal-watercraft models from approximately 1998–2024, subject to the vehicle\'s system and connector.
WaveRunner examples: EX, EX Deluxe, EX Sport, EXR, EXR Deluxe, FX, FX 140, FX Cruiser, FZR, FZS, GP1300R, GP1800, GP1800R, VX, VX Cruiser, VX Cruiser HO, VX Deluxe, VX Sport, VXR and VXS.
HPDI outboard examples: XF375, XF425, Z150, Z175, Z200, Z225, Z250 and Z300.
The model names above are examples, not a complete compatibility list. Please verify your exact engine/PWC model, year and connector before ordering. Supported Marine ApplicationsMotorboats and personal watercraft: Powerboats, jet skis, electric jet boats, racing boats, sport boats and other compatible applications.Outboard engines: Compatible engines mounted at the stern of the vessel.Inboard systems: Compatible engines installed inside the vessel with an external propulsion system.Generator engines: Compatible onboard power-generation engines requiring communication diagnostics. All-System Diagnostics
Access supported control modules to retrieve ECU information, read and erase diagnostic trouble codes, view live and freeze-frame data, perform active tests, adjust supported settings, carry out coding, review operating hours and complete supported initialization procedures.
Product SpecificationsOperating SystemAndroidProcessorRK3128 quad-coreBattery2600 mAh lithium-ionStorage13 GB; supports up to 32 GB MicroSD/TF cardDisplay5.0-inch capacitive touchscreen, 800 × 480WirelessWi-FiOperating Temperature−4°F to 131°F (−20°C to 55°C)Storage Temperature−4°F to 158°F (−20°C to 70°C)WeightApprox. 2.87 lb (1.3 kg)Dimensions8.66 × 4.57 × 1.14 in (220 × 116 × 29 mm) Remote Technical Support
With your permission, a technical engineer, colleague or trusted helper can remotely access the tablet through TeamViewer to assist with troubleshooting. Please contact the seller in advance to schedule technical support. Internet access is required.

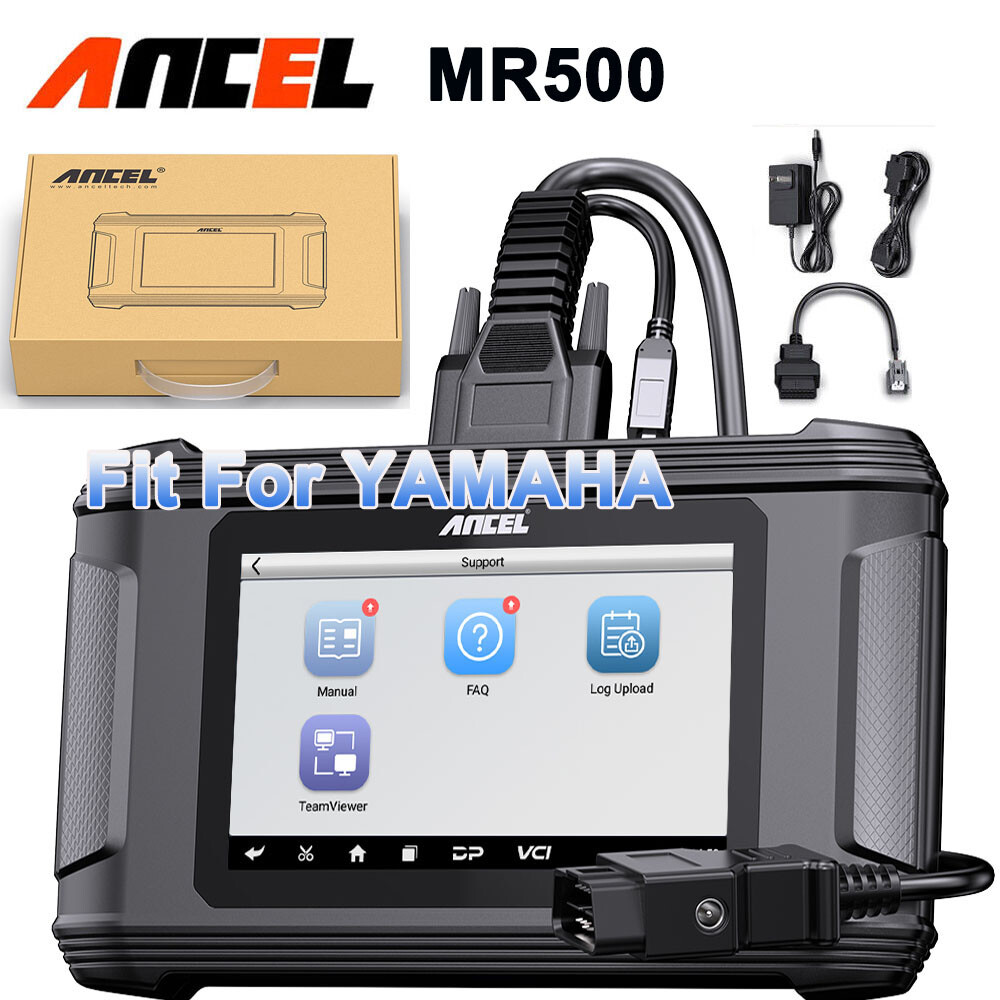

What\'s Included
- ANCEL MR500 main unit
- User manual
- 12V/2A charger
- M062 cable for Yamaha
- M069 cable for Yamaha
- M001B main cable
1-Year Free Software Updates
Update the tool over Wi-Fi with one click. Free software updates are included for one year. After the free-update period ends, the installed software and functions remain available without a subscription. Purchasing future updates is optional and may add coverage or functions released later.
Questions About Compatibility?
Send us your Yamaha model, model year and a photo of the diagnostic connector before purchase. We will help you confirm coverage.
