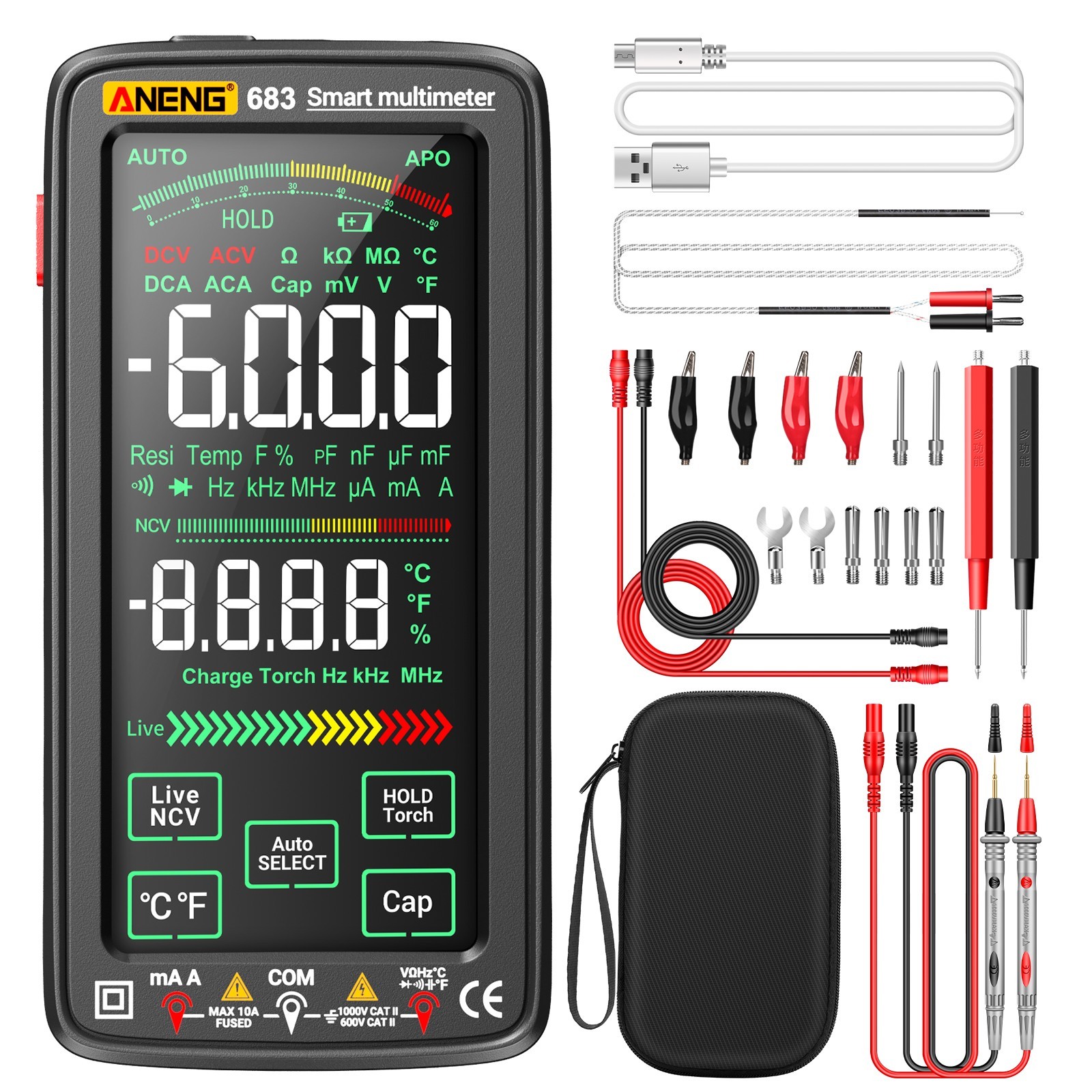

ANENG PROFESSIONAL TEST INSTRUMENTS DIGITAL MULTIMETER SERIES True RMS · Auto Ranging · Electrical Testing · Maintenance 683 622B 620C 628A SZ12 SZ856 ANENG 683 Smart Touch Screen True RMS Digital Multimeter 6000 Counts · VA Color Display · USB Rechargeable SMART TOUCH 6000 COUNTS TRUE RMS USB RECHARGEABLE SMART MEASUREMENT Designed for electricians, technicians and DIY users, the 683 combines touch operation, automatic ranging, multifunction measurement and a high-contrast VA color display. FUNCTIONS Touch Screen VA Color Display True RMS Auto Ranging NCV Live Wire Detection Duty Cycle Continuity Diode Test Temperature Data Hold Flashlight MEASUREMENT PARAMETERS AC Voltage
Range: 0V–750V
Resolution: 0.001V–1.0V
Accuracy: ±(1.0%+10d) DC Voltage
Range: 0V–1000V
Resolution: 0.001V–1.0V
Accuracy: ±(0.8%+10d) AC Current
Range: 0mA–10A
Resolution: 1mA–0.01A
Accuracy: ±(2.5%+10d) DC Current
Range: 0mA–10A
Resolution: 1mA–0.01A
Accuracy: ±(2.5%+10d) Resistance
Range: 0Ω–60MΩ
Resolution: 0.1Ω–0.01MΩ
Accuracy: ±(2.5%+5d) Capacitance
Range: 0nF–100mF
Resolution: 0.01nF–0.1mF
Accuracy: ±(5.0%+5d) Frequency
Range: 0Hz–999.9kHz
Resolution: 0.001Hz–0.1kHz
Accuracy: ±(0.8%+3d) Temperature
Range: -40°C–1000°C / -40°F–1832°F
Resolution: 1°C
Accuracy: ±(1.9%+5d) ANENG 622B Smart True RMS 9999 Counts Digital Multimeter 9999 Counts · 10MHz Frequency · VA Color Reverse Display 9999 COUNTS 10MHz MAX / MIN INFRARED LASER HIGH-RESOLUTION TESTING The 622B combines 9999-count resolution, True RMS measurement, automatic ranging, 10MHz frequency testing and a VA color reverse display for electrical, automotive and electronics work. FUNCTIONS True RMS 9999 Counts Auto Ranging NCV Live / Neutral Detection MAX / MIN Duty Cycle Temperature Continuity Diode Test Infrared Laser Flashlight Data Hold MEASUREMENT PARAMETERS DC Voltage
Range: 0mV–999.9V
Resolution: 0.1mV–0.1V
Accuracy: ±(0.5%+3d) AC Voltage
Range: 0mV–999.9V
Resolution: 0.1mV–0.1V
Accuracy: ±(0.8%+5d) DC Current
Range: 0mA–10A
Resolution: 0.01mA–0.01A
Accuracy: ±(1.0%+5d) AC Current
Range: 0mA–10A
Resolution: 0.01mA–0.01A
Accuracy: ±(1.0%+8d) Resistance
Range: 0Ω–99.99MΩ
Resolution: 0.1Ω–0.01MΩ
Accuracy: ±(0.8%+3d) Capacitance
Range: 0nF–99.99mF
Resolution: 0.001nF–0.01mF
Accuracy: ±(10%+40d) Frequency
Range: 0Hz–10MHz
Resolution: 0.001Hz–0.001MHz
Accuracy: ±(3.0%+5d) Duty Cycle
Range: 1–99%
Resolution: 0.1%
Accuracy: ±(3.0%+3d) Temperature
Range: -40°C–1000°C / -40°F–1832°F
Resolution: 1°C / 1°F
Accuracy: ±(1%+3°C) / ±(1%+3°F) ANENG 620C True RMS 6000 Counts Auto-Ranging Digital Multimeter AC/DC 10A · 60MΩ · 60mF · Temperature · Rechargeable 6000 COUNTS 10A AC/DC 60mF USB RECHARGEABLE PRACTICAL PERFORMANCE The 620C focuses on everyday electrical testing with True RMS measurement, 6000-count resolution, auto ranging, 10A AC/DC current measurement and a rechargeable design. FUNCTIONS True RMS 6000 Counts Auto Ranging AC/DC 10A NCV Zero Firewire Detection Continuity Diode Test Frequency Temperature Data Hold Flashlight Backlight MEASUREMENT PARAMETERS DC Voltage
Range: 0.5V–600V
Resolution: 0.001V–0.1V
Accuracy: ±(0.5%+3) AC Voltage
Range: 0.5V–600V
Resolution: 0.001V–0.1V
Accuracy: ±(0.8%+5) DC Current
Range: 20mA–10A
Resolution: 1mA–0.01A
Accuracy: ±(1.0%+8) AC Current
Range: 20mA–10A
Resolution: 1mA–0.01A
Accuracy: ±(1.0%+8) Resistance
Range: 0Ω–60MΩ
Resolution: 0.1Ω–0.01MΩ
Accuracy: ±(0.8%+5) Capacitance
Range: 0nF–60mF
Resolution: 0.001nF–0.01mF
Accuracy: ±(2.5%+20) Frequency
Range: 40Hz–1000Hz
Resolution: 0.1Hz–1KHz
Accuracy: ±(1.0%+5) Temperature
Range: -40°C–1000°C / -40°F–1832°F
Resolution: 1°C / 1°F
Accuracy: ±(1.0%+3) ANENG 628A True RMS 6000 Counts Rechargeable Digital Multimeter 1000V DC · 750V AC · Large Backlit Display 1000V DC 750V AC 6000 COUNTS RECHARGEABLE WIDE-RANGE MEASUREMENT 628A combines True RMS measurement, automatic ranging, broad voltage capability, rechargeable power and a large backlit display for everyday electrical, automotive, HVAC and electronics testing. FUNCTIONS True RMS 6000 Counts Auto Ranging NCV Live / Neutral Detection AC/DC Current Hz / % Temperature Diode Test Continuity Data Hold Backlight Flashlight MEASUREMENT PARAMETERS DC Voltage
Range: 0.8V–1000V
Resolution: 0.001V–1V
Accuracy: ±(0.8%+10) AC Voltage
Range: 0.8V–750V
Resolution: 0.001V–1V
Accuracy: ±(1.0%+10) AC / DC Current
Range: 0mA–10A
Resolution: 1mA–0.01A
Accuracy: ±(2.5%+10) Resistance
Range: 0Ω–60MΩ
Resolution: 0.1Ω–0.01MΩ
Accuracy: ±(2.5%+5) Capacitance
Range: 0nF–100.0mF
Resolution: 0.01nF–0.1mF
Accuracy: ±(5.0%+10) Temperature
Range: -40°C–1000°C / -40°F–1832°F
Resolution: 1°C / 1°F
Accuracy: ±(1.9%+5) / ±(1.9%+6) ANENG SZ12 True RMS 20,000 Counts High-Resolution Digital Multimeter 10MHz Frequency · 1000V DC · 20A AC/DC · 100MΩ 20,000 COUNTS 20A AC/DC 10MHz 100MΩ HIGH-RESOLUTION PERFORMANCE SZ12 is built around 20,000-count resolution, True RMS measurement, 10MHz frequency testing, 20A AC/DC current measurement and broad resistance, capacitance and temperature capability. FUNCTIONS 20,000 Counts True RMS Auto Ranging 1000V DC 750V AC 20A AC/DC 100MΩ 20mF 10MHz Duty Cycle NCV Live / Neutral MAX / MIN Temperature Flashlight Backlight MEASUREMENT PARAMETERS DC Voltage
Range: 200mV–1000V
Resolution: 0.01mV–0.1V
Accuracy: ±(0.08%+5) AC Voltage
Range: 200mV–750V
Resolution: 0.01mV–0.1V
Accuracy: ±(0.5%+25) DC Current
Range: 200μA–20A
Resolution: 0.01μA–0.001A
Accuracy: ±(0.8%+15) AC Current
Range: 200μA–20A
Resolution: 0.01μA–0.001A
Accuracy: ±(1.0%+25) Resistance
Range: 0Ω–100MΩ
Resolution: 0.01Ω–0.01MΩ
Accuracy: ±(3.0%+25) Capacitance
Range: 0nF–20mF
Resolution: 0.0001nF–0.001mF
Accuracy: ±(4.0%+50) Frequency
Range: 5Hz–10MHz
Resolution: 0.01Hz–0.001MHz
Accuracy: ±(3.0%+30) Duty Cycle
Range: 1–99%
Resolution: 0.1% Temperature
Range: -40°C–1000°C / -40°F–1832°F
Resolution: 0.1°C / 1°F
Accuracy: ±2.0% ANENG SZ856 True RMS 6000 Counts Digital Multimeter 600V AC/DC · 10A · 10MHz · 60MΩ · Dual Fuse Protection 6000 COUNTS 10MHz 10A AC/DC DUAL FUSE FIELD-READY TESTING SZ856 combines True RMS measurement, 6000-count resolution, broad multifunction measurement and dual tube anti-burn fuse protection for electrical inspection, automotive maintenance, DIY and troubleshooting. FUNCTIONS True RMS 6000 Counts Auto Ranging NCV AC/DC Current 60MΩ 6mF 10MHz 10–95% Duty Cycle Temperature Continuity Diode Test Backlight Data Hold Dual Fuse Protection MEASUREMENT PARAMETERS DC Voltage
Range: 0mV–600V
Resolution: 0.1mV–1V
Accuracy: ±(1.0%+5d) AC Voltage
Range: 0mV–600V
Resolution: 0.1mV–1V
Accuracy: ±(1.2%+5d) DC Current
Range: 0μA–10A
Resolution: 0.1μA–10mA
Accuracy: ±(2.0%+10d) AC Current
Range: 0μA–10A
Resolution: 0.1μA–10mA
Accuracy: ±(2.5%+10d) Resistance
Range: 0Ω–60MΩ
Resolution: 0.1Ω–10KΩ
Accuracy: ±(1.0%+10d) Capacitance
Range: 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF
6mF measurement: 10 sec
Accuracy: ±(8.0%+5d) Frequency
Range: 10Hz–10MHz
Resolution: 0.01Hz–10kHz
Accuracy: ±(1.5%+5d) Duty Cycle
Range: 10%–95%
Resolution: 0.1%
Accuracy: ±2.0% Temperature
Range: -40°C–1000°C / -40°F–1832°F
-40°C–150°C: ±(1%+4°C)
150°C–1000°C: ±(2%+4°C)
-40°F–302°F: ±(5%+4°F)
302°F–1832°F: ±(2.5%+4°F) ANENG DIGITAL MULTIMETER SERIES 683 · 622B · 620C · 628A · SZ12 · SZ856 US STOCK · FAST SHIPPING · TRACKING PROVIDED Measurement ranges and specifications shown above are based on the selected model configuration. Please refer to the included manual for operating instructions and measurement conditions.
