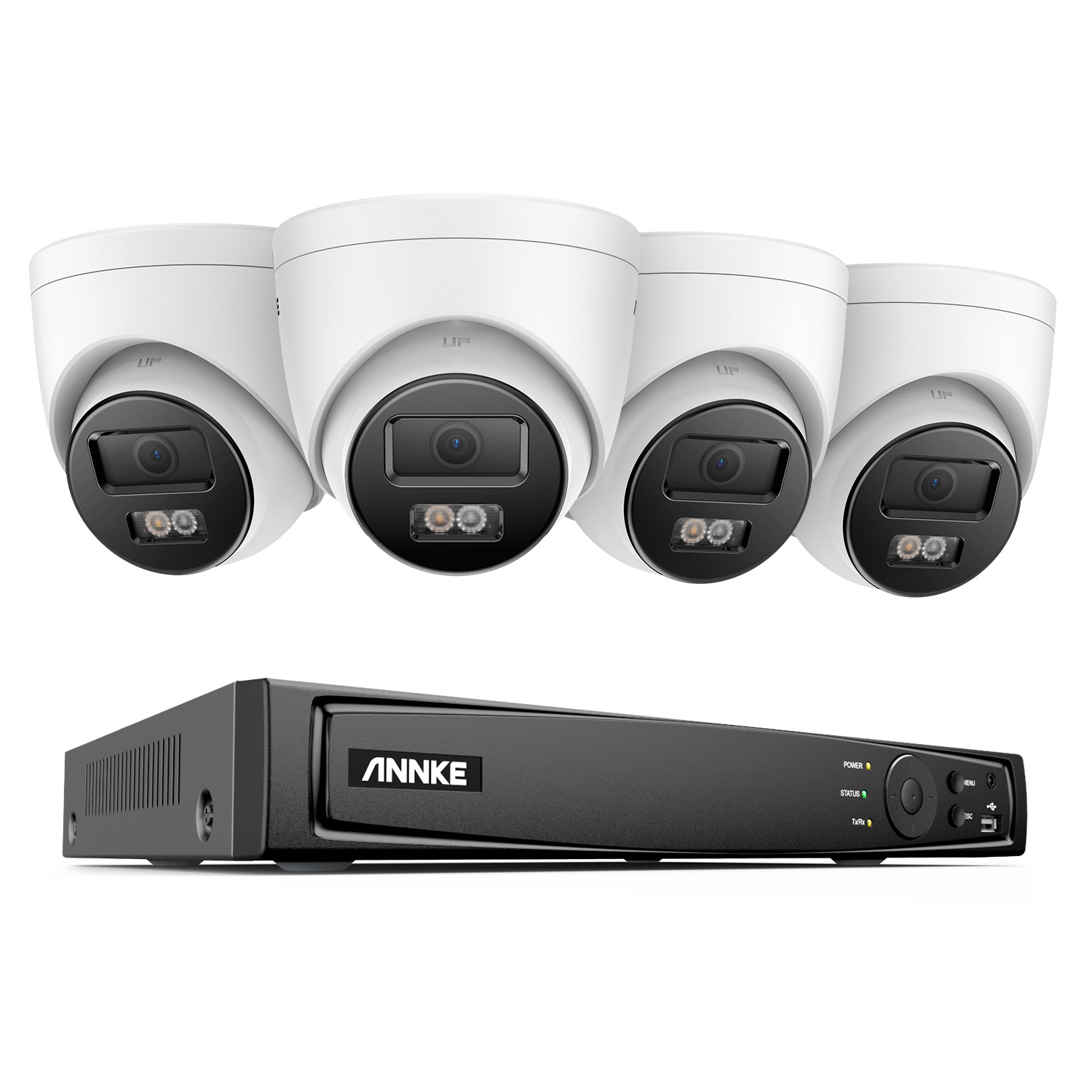

2023ANNKE H800 4K Color Night PoE Turret Security System with16CH 12MP NVR
Improved 4K Sharpness. Flawless Details
Best 4K Def. in 16:9 Image Scale
The 1/2.4\" progressive scan BSI CMOS image sensor delivers 4K resolution (3840*2160), not only bringing clearer image quality with finer details but a 16:9 image scale that is perfectly matched with the screen without distortion.
Accurate Human & Vehicle Detection
Motion Detection 2.0 recognizes and extracts key objects quickly like human beings and vehicles, reducing up to 99% of false alarms.
Hi-Fi Audio Recording
Level up the security by recording videos with voice information. The built-in noise-cancelling microphone enables high-fidelity audio recording by filtering out external sounds for immersive listening. Audio record enhances security coverage and helps interpret events.
From Black & White to Colored Night
With the default IR night vision, human&vehicle triggered and turned the vision into color. Remains color night vision even in dark environments, turns to B&W when less than 0.005Lux. Also supports IR night vision and color night vision mode switching. (100ft IR & color night vision distance)
TF Card & NVR Storage
Record videos onto the NVR (an HDD is needed for video record, built-in 2 SATA interfaces, support up to 2 8TB HDD for maximum 16 TB capacity) or onto a TF card up to 512 GB (not included) for local video storage without paying monthly cloud storage fees.
Real-Time App Pushes & Email Alerts
When the system detects any difference, it will push instant app notifications and email alerts to you, so that you can access the system to check the motion events and take actions to prevent possible intrusion.
Unlimited Smart Search&Playback
24/7 non-stop recording and auto-overwritten recording are default, or motion detection recording and schedule recording are up to you to choose.
For the playback, instant playback, ordinary playback or event smart playback are supported. And extra user-friendly functions like private recording setting, lost video finding and 4 CH line crossing detection are all ready for you. Locate vital videos in countable seconds.
- Customized Motion Areas & Privacy Mask
You can always customize motion detection with specific motion zones, like doorsteps, garages. You will receive instant alerts only when motion events happen in the customized areas. To protect your privacy, you may set up the privacy mask. The system will ignore the masked zones when recording videos.
- Outdoor IP67 Weatherproof
Rated as IP67 weatherproof, the camera continues to function even being immersed in 1 m of water for 30 minutes. It has been tested in the most frigid conditions, ensuring seamless performance in torrential downpours, freezing/broiling temperatures (-22 °F – 140 °F).
- 120 dB True WDR & 3D DNR
The 120 dB true WDR automatically adjusts the brightest & darkest points of the videos, resulting in optimized & highly-detailed footages in the high-contrast lighting conditions. 3D DNR filters out digital noise to provide a cleaner and more accurate image in low-light H.265+ Video Format
Keep the exceptional 4K Ultra HD footages without the 4K file sizes thanks to the ANNKE\'s exclusive leading H.265+ video format. It recordes longer videos, a 80% increase in storage than H.264 coding, and provides smooth 4K stream without using all the data.
- 24/7 Recording Even Without Internet
This PoE security camera system can provide 24/7 non-stop video recording even without Internet access. For remote access via smartphones, tablets or computers and motion alerts, Internet connection is required.
NVRVideo & AudioVideo CompressionH.264+/H.264/H.265/H.265+IP Video Input16CH PoEVideo OutputHDMI up to 4K, VGA up to 1080pAudio Input/Output1/1 RCAIncoming/Outgoing Bandwidth160/80 MON-VIF ProtocolsSupportMax Recording ResolutionUp to 12MP(4096 X 3072)Max Playback ResolutionUp to 12MP(4096 X 3072)Max Playback Channel16CHMax Playback Capacity1-ch@12 MP,3-ch@4 MP,6-ch@1080pHard DriveHDD2 SATA InterfaceHDD CapacityUp to 8 TB Capacity for each disk
External InterfaceNetwork InterfaceRJ45 X1 (10/100/1000 M)PoE16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/atUSB2X USB 2.0Smart FunctionDeep learning16-ch Human and vehicle targets detection(Need IP camera support)Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)GeneralOperating PowerAC 100-240 VPower Consumption≤15 W (Without HDD and PoE)Working Temperature14 °F ~ 131 °F/-10 °C ~+55 °CPoE: Max 25.5 W for Single PortDimensions (W X H X D)15.2” X 12.4” X 2.0”/385 X 315 X 52 mmWeight (Without Hard Disk)6.6 lbs./3 kgCameraCameraImage Sensor1/2.4\" Progressive Scan CMOSVideo CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEGMax resolution3840*2160(8MP)Audio AAC-LCMain Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)Sub Stream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)Video Bitrate32 Kbps～16 MbpsLens4 mmAudio InputBuilt-in Microphone, record with audioAngle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IRMotion detection 2.0Supoort, include Human & Vehicle detectionSupplement Light TypeSmart Dual-Light, IR, White LightSupplement Light RangeUp to 30 mImage EnhancementBLC, HLC, 3D DNRWide Dynamic Range120 dB WDRProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTPAPIOpen Network Video Interface Version (Profile S, Profile T, Profile G)Region of Interest
(ROI)1 fixed region for main streamPrivacy Mask4 programmable polygon privacy masksGeneral FunctionRotate mode, mirror, password protection, remote accessEthernet1 RJ45 10 M/100 M self-adaptive Ethernet portGeneralHousingMetal & PlasticColorWhiteStorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GBHardware ResetYesOperating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 WOperating Temperature-22 °F – 140 °F/-30 °C – 60 °CIndoor/Outdoor UseIndoor/OutdoorInterface ProtectionIP67Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3\" × 3.5\")Weight0.7 lb./340 g
