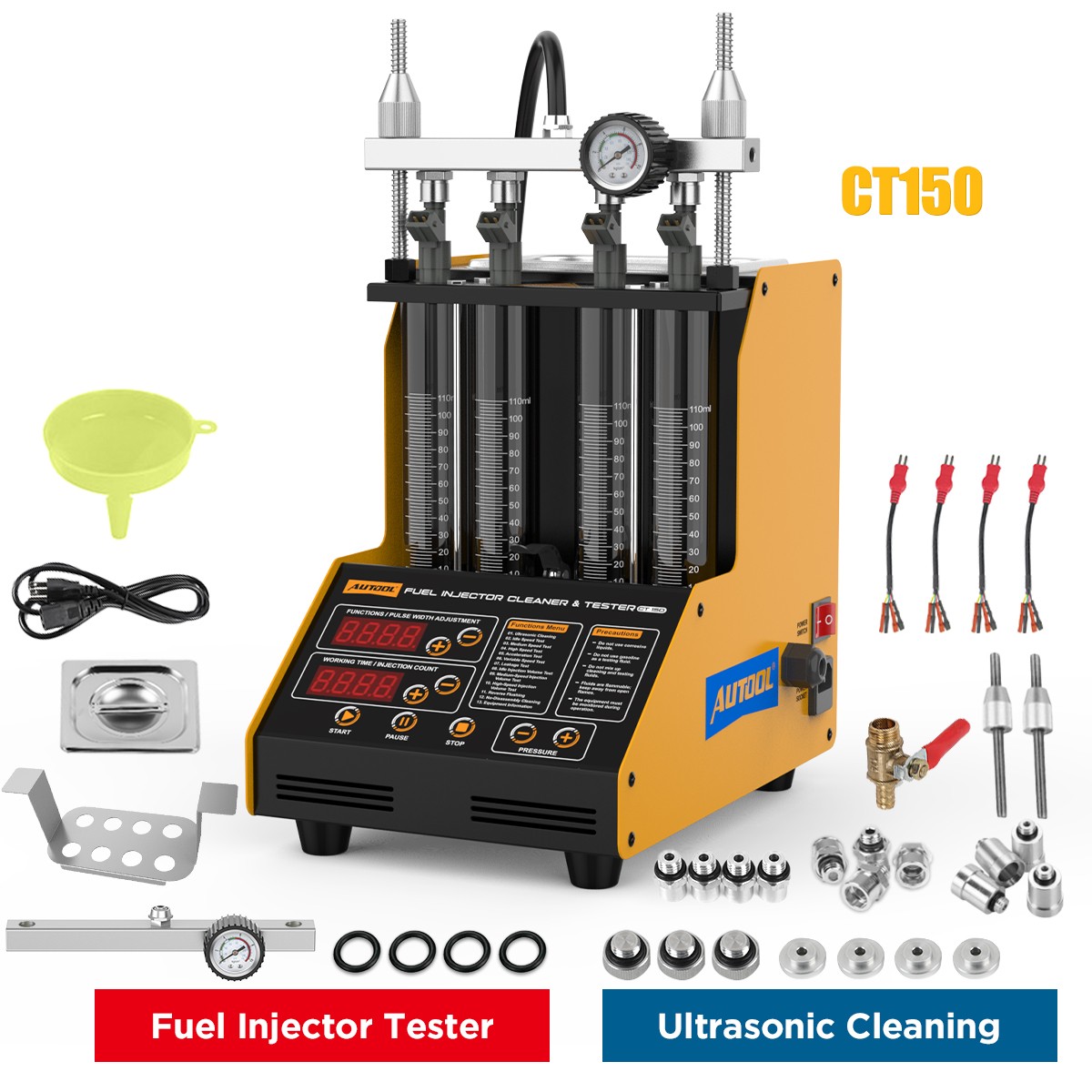

AUTOOL CT150 Fuel Injector Cleaner & Tester

The AUTOOL CT150 is an integrated 4-cylinder fuel injector machine that combines advanced ultrasonic cleaning technology with microcomputer-controlled oil pressure closed-loop control. Housed in a durable, drop-resistant, and shockproof casing with a modern three-dimensional design, this unit delivers stable, reliable performance and user-friendly operation, backed by a 3-year warranty. It is engineered to effectively resolve a wide range of fuel injector issues through years of technological refinement.

The system offers a comprehensive suite of 12 functions, centered on powerful ultrasonic cleaning that thoroughly removes carbon deposits from injectors. The cleaning process is supported by additional capabilities including reverse flushing and a no-disassembly cleaning option. For performance evaluation, the device provides various testing modes (such as idle, medium speed, high speed, acceleration, and leak checking) to simulate different engine operating conditions.

Key Applications:

• Automotive Repair Shops– Ideal for professional mechanics servicing gasoline-powered passenger vehicles.

• Motorcycle Service Centers– Suitable for maintaining and diagnosing fuel injectors on motorcycles.

• General Maintenance Garages– A versatile tool for workshops that handle a variety of vehicle makes and models.

Important Operational Note:

• Theultrasonic cleaningfunction is applicable for cleaningall types of fuel injectors, including both gasoline and diesel variants.

• Thetesting functions(e.g., idle, speed, leak, and spray value tests) are designed and supportedonly for gasoline fuel injectors.

12 Functions Available:

1. Ultrasonic Cleaning– Uses high-frequency vibrations to effectively remove carbon deposits from injectors.

2. Idling Test– Simulates injector operation at engine idle speed (0~20ms pulse width).

3. Medium Speed Test– Simulates injector operation at medium engine speed (0~7.5ms pulse width).

4. High Speed Test– Simulates injector operation at high engine speed (0~4ms pulse width).

5. Accelerating Test– Simulates fuel injection response during vehicle acceleration.

6. Shifting Speed Test– Simulates fuel injection response during gear shifting.

7. Leak Checking Test– Detects whether injectors drip or leak when closed, ensuring proper sealing.

8. Idling Spray Value Test– Measures fuel spray volume at idle speed to evaluate injector performance.

9. Medium Speed Spray Value Test– Measures fuel spray volume at medium speed to evaluate injector performance.

10. High Speed Spray Value Test– Measures fuel spray volume at high speed to evaluate injector performance.

11. Reverse Flushing– Uses reverse fluid flow to clear stubborn blockages inside Cleaning – Equipped with various adapters and couplers that facilitate cleaning on the injectors on vehicle.

Ultrasonic Cleaning
The strong shaking produced by ultrasonic waves can quickly strip off the carbon deposits to achieve the effect of comprehensive cleaning of the injector.4-Cylinder Design
This tool can clean and test up to four fuel injectors simultaneously, providing efficient service. lt allows for easy observation and accurate evaluation of the injectors' condition through comparison.Cleaning fluid drain valve: For recycling used cleaning fluidTesting Fluid Level Gauge: For observing the current test fluid capacityPressure Gauge: Observable work pressureGlass Measuring Cylinder: Visual testing statusSpecification:
Fuel Tank Capacity: 1000 ml
Cylinder Capacity :110 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ
Power supply: AC110V±10%
Frequency: 60HZ±0.5
Environment Temperature: Field:＜400Ａ/m
Package Weight: about 10kgPackage Include:
1x CT150 Fuel Injector Cleaner Tester
1x Oil Separator
1x Oil Funnel
2x Pulse Signal Cable
1x Cleaning Fluid Drain Valve
2x Fixing Bolt
4x 14mm Cleaning Connector
4x 17mm Cleaning Connector
4x Washer
3x Plug4x Sealing Ring
1x Ultrasonic Cleaning Cover
1x Ultrasonic Cleaning Bracket
1x Power Cable
1x User ManualHow to Choose Cleaning Fluid:It is recommended to use professional engine fuel injector cleaning fluid. You can search the fuel injector cleaner on .How to Choose Test Fluid:
The test fluid is a colorless and transparent liquid with no irritating odor, non-corrosive.It's recommended that medical alcohol with an alcohol content of more than 75% can be used as the test fluid.Warm Tips:It is forofferen to fill the injector cleaning fluid into the glass tubes. Because the fuel injector cleaning fluid is corrosive, it will damage the oil pump. The cleaning liquid can be only added into the ultrasonic tank. Glass tubes can be only filled into industrial alcohol as the test liquid.PaymentDelivery detailsTerms of salesAbout usContact usPayment1. We accept PayPal only.
