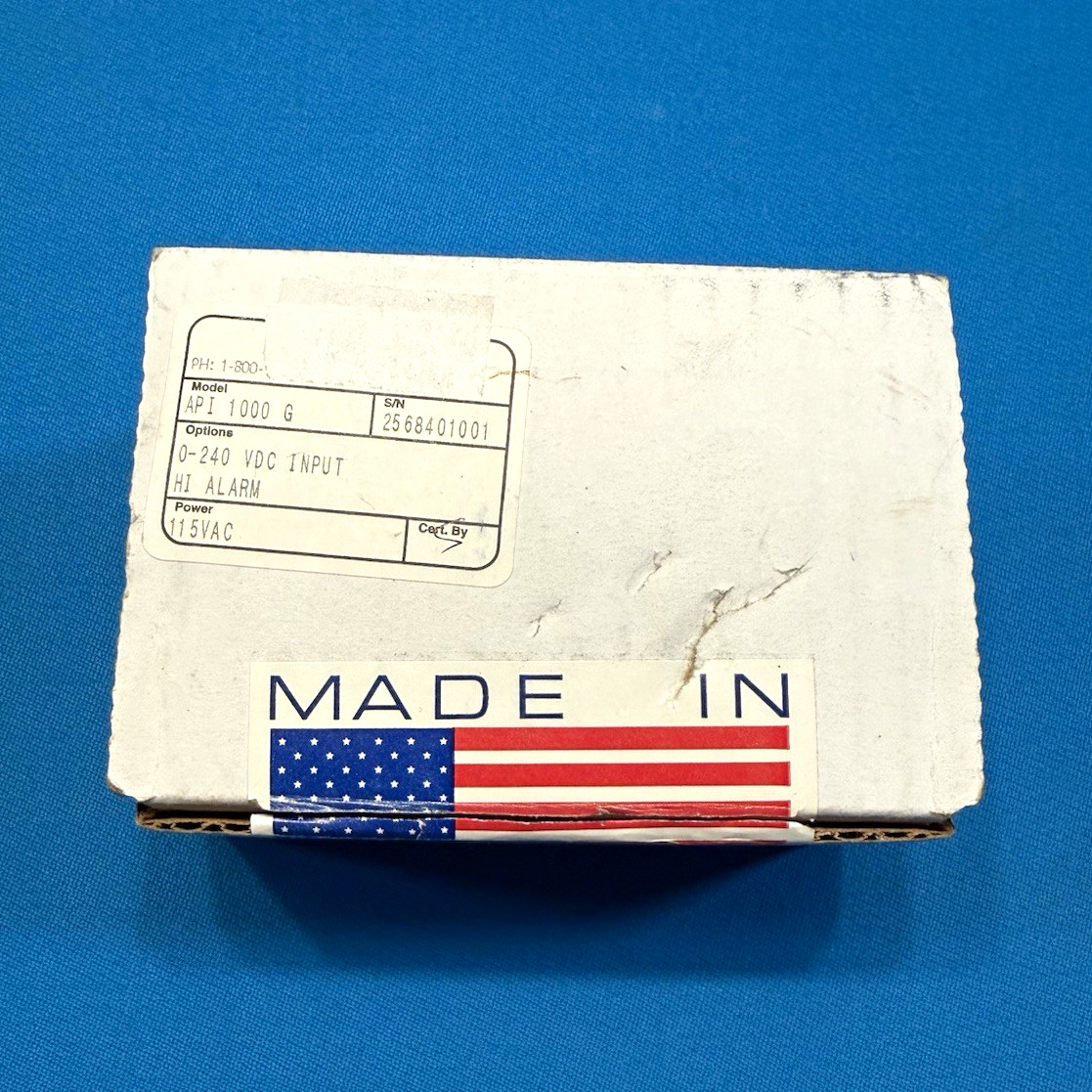

Absolute Process Instruments API 1000 G:
$100.00
The API 1000 G is a factory-configured DC Input Single Alarm Trip manufactured by Absolute Process Instruments, Inc.. It is a rugged industrial signal conditioner designed to monitor standard DC voltage or current loops and trigger external control systems or safety devices when a specific limit is reached.Core Specifications & FeaturesInput Ranges: Factory-configured for DC voltages ranging from 0–100 mVDC to 0–300 VDC, or sinking DC currents from 0–1 mADC to 0–900 mADC.Output Control: Equipped with one DPDT (Double-Pole Double-Throw) relay rated at 8 Amps for directly handling high-capacity industrial loads.Mounting Type: Uses a standard industrial 11-pin socket (API-011 base) for hot-swappable, plug-in field deployment.Visual Indicators: Features API\'s signature Input LoopTracker® LED along with distinct Alarm Status LEDs to allow instant visual diagnostics of system health and trip conditions.Calibration & Diagnostics: Provides a single-setpoint adjustment knob, an adjustable deadband, and an integrated Output Test Button to manually override and test the relay operations during commissioning.
