- Water Resistant and UV Stable Enclosure with Fully Gasketed Lid for NEMA Type 4, 4X / IP66 Rated Protection. Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13, IP65 and IP66 Specifications. CE Certified.
- Heavy Duty Compression Molded Fiberglass Reinforced Polyester (FRP) Construction with UL94-5V Flame Rating. Dent Proof, Rust Free, Corrosion and Chemical Resistant. Non-Conductive and RF Transparent for WiFi, RFID and Antenna Equipment.
- Stainless Steel Quick Release Latches with Padlock Hasps and Stainless Steel Continuous Door Hinge for Years of Rust-Free Outdoor Operation.
- Outer Dimensions: 11.7 x 9.8 x 8.7 Inches (297 x 250 x 223 mm). Inner Dimensions: 9.7 x 7.9 x 8.0 Inches (247 x 200 x 206 mm). Weight 6.3 lbs. Includes (4) Stainless Steel Wall Mounting Feet with Stainless Screws. Raised Bosses with Brass Inserts for Back Panel Mounting.
- Weatherproof and Vandal Resistant Protection for Security Cameras, SCADA and Remote Terminal Units, Solar Equipment, Telephone and Industrial Control Equipment. Easily Drilled and Modified with Conventional Tools.

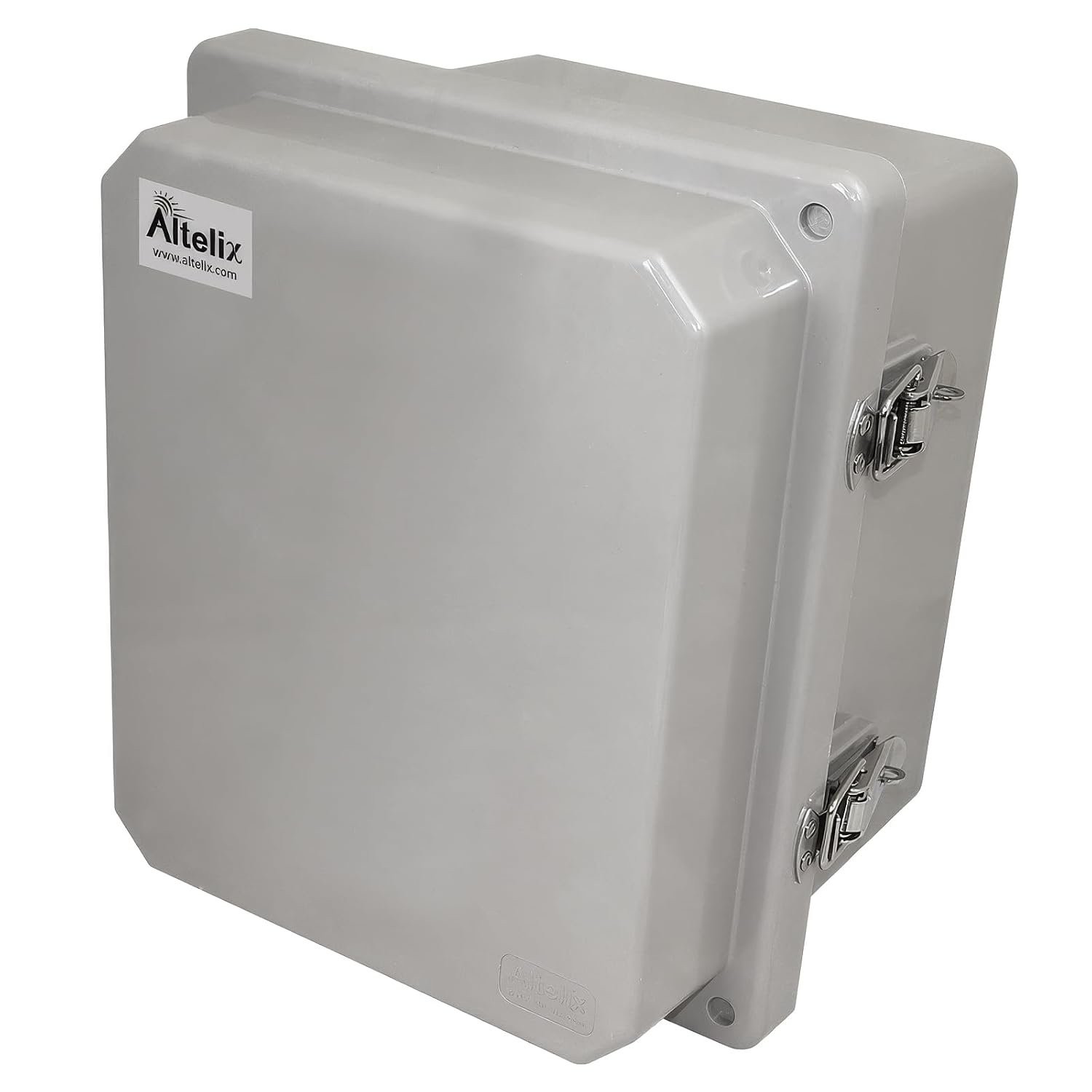

The Altelix NF100808 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is compression molded from durable, UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a fully gasketed door with a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.
This JIC style enclosure is dent proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent, making it well suited to wireless and antenna equipment. It is built for the harshest outdoor environments and can be drilled and modified by the installer to suit unique site requirements.
Back Panel Mounting
Raised bosses with brass inserts are molded into the enclosure body to accept a back panel for equipment mounting. The enclosure and panel can be drilled and modified on site.
Specifications
Outer Dimensions: 11.7 x 9.8 x 8.7 in. (297 x 250 x 223 mm)
Inner Dimensions: 9.7 x 7.9 x 8.0 in. (247 x 200 x 206 mm)
Material: Fiberglass Reinforced Polyester (FRP), Grey
Weight: 6.3 lbs. (2.9 kg)
Ratings: NEMA Type 4, 4X / IP66, CE Certified
Mounting
Four removable stainless steel mounting feet and stainless screws are included for secure wall cameras and surveillance systems, SCADA and remote terminal units, solar equipment, telephone equipment, building automation and industrial controls.
