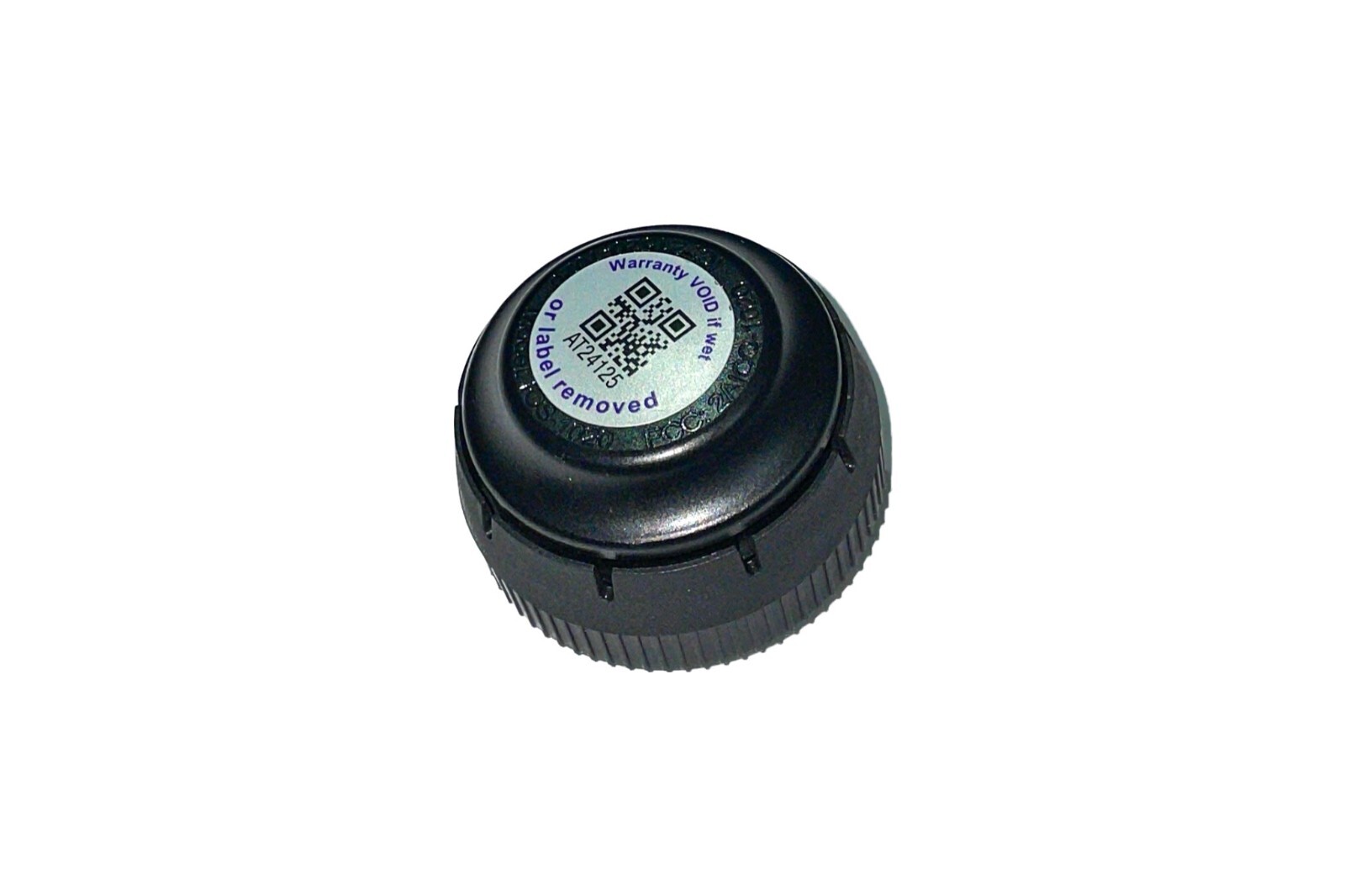

IO-1020 Micro ELD
The sleek and reliable design of the IOSiX Micro ELD makes it a breeze to track hours and meet FMCSA requirements.
Designed to handle a large number of known vehicle-specification deviations in the field, the Micro ELD provides robust data acquisition across a wide range of makes and models.
Data gathered by the Micro ELD can be transferred to a phone or tablet via a Bluetooth or WiFi connection, enabling trouble-free hours-tracking and document submission. You can connect this device directly to the J1939 port found in most heavy-duty trucks, or easily adapt it to RP1226, OBD-II, or J1708 with a converter cable.
KEY SPECIFICATIONSBuilt-in J1939 Type II 9-pin connector supporting both new and legacy vehiclesWiFi 801.11b/g/n up to 150Mbps and simultaneous AP and Station modesBluetooth 4.2 Class 1 supporting BR/EDR and LE dual-modeMulti-constellation GNSS receiver with built-in high-gain antenna
FeaturesWiFi 801.11b/g/n up to 150Mbps and simultaneous AP and Station modesBluetooth 4.2 Class 1 supporting BR/EDR and LE dual-modeMulti-constellation GNSS receiver with built-in high-gain antennaHigh-efficiency switching power supplies for low temperature operationOver-, under-, and reverse-voltage protection exceeding automotive standardsESD protection exceeding automotive standardsFull-color RGB LED for status indicationDual-core 32-bit Tensilica processor at 240MHzBuilt-in J1939 Type II 9-pin connector supporting both new and legacy vehiclesPhysical layer and protocol auto-detection/auto-baudingDual-wire CAN interface supporting 1Mbps [1]Dual-wire J1708 interfaceJ1939 protocol supportISO 15765 and ISO 14229 (OBD-II) protocol supportJ1587 protocol supportBuilt-in flash memorySupport for IOSiX ELD APIs for Android and iOSSupport for IOSiX Advanced Vehicle Parameter DatabaseFCC/IC (US/Canada and other countries)CE (Europe and other regions)Dimensions: 40x40x28mmMass: 28gTemperature range: -40 to +125 CMaterial: Nylon/Polycarbonate
