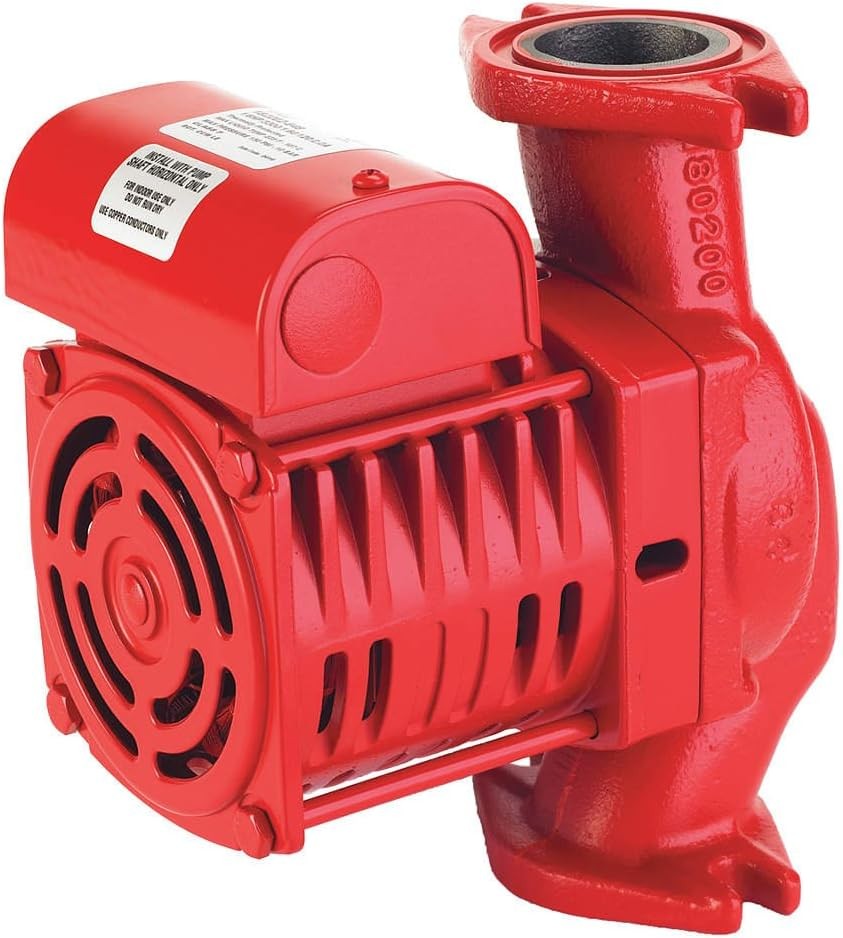

Armstrong 182202-659 Flanged Circulation Pump E9 1/6 HP 120V:
$448.51
Product Description The Armstrong Flanged Circulation Pump E9 Series, model 182202-659, is suitable for various hydronic applications such as heating and cooling systems. Its design emphasizes energy efficiency, making it an optimal choice for residential and light commercial installations. - High efficiency circulator, 120V
- Compact motor design, 30% smaller than traditional models
- Durable with field-repairable mechanical seal
Product Highlights This pump features advanced motor technology and hydraulic design, achieving efficiency up to 41% better than similar pumps. Its compact size allows installation in tight spaces, and it operates quietly, enhancing overall user experience. Product InformationStandard Information - Brand: Armstrong
- MPN: 182202-659
Technical Specifications - HP Rating: 1/6 hp
- Voltage Rating: 120 VAC
- Amperage Rating: 2 A
- Flow Rate: 38 gpm
- Maximum Head: 42.4 ft
- Frequency Rating: 60 Hz
- Weight: 14.09 lbs
- Dimensions: 7.1 in W x 6.4 in H x 4.2 in D
- Material: Cast Iron
- Impeller Material: 30% Glass-Filled Noryl
- Temperature Rating: 32 - 230 deg F
- Pressure Rating: 150 psi
- RPM: 3250
|
|
