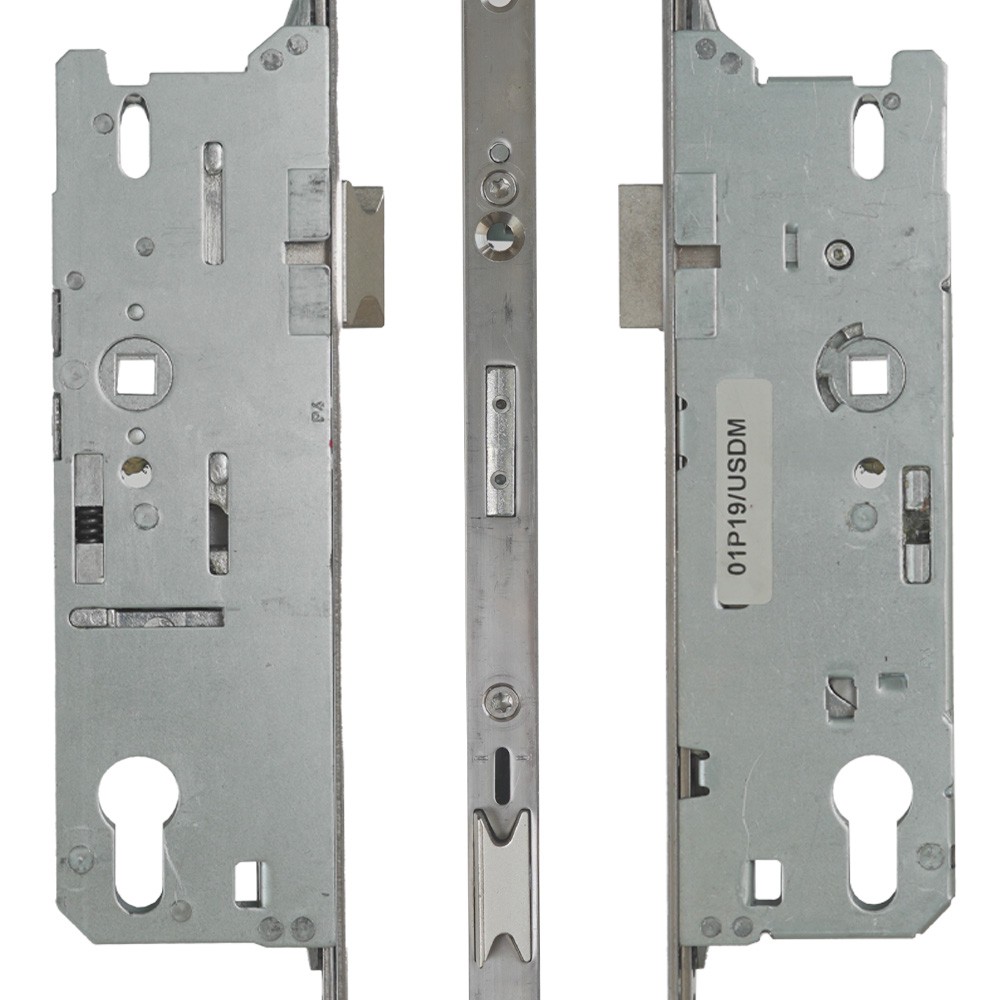

Atrium 35/92 Tongue Multipoint Lock Replacement for Old Style GU Tripact
Atrium 16 mm manual tongue version multipoint lock replacement kit of old style GU Tripact locks.
This is a 3 point locking system that features two tongue latches and a deadbolt.
All three locking points are engaged by lifting the handle.
This is NOT a direct replacement for the Atrium door lock. It requires minor modifications. See additional pictures of Atrium old-style and Atrium replacement lock comparisons.
Overall Length: 69-3/4 Inch
Backset: 35 mm (1-3/8 inch)
Handle Height: 31-1/8 inch
Handle Spacing (PZ): 92 mm
Top Tongue Position: 32-1/2 inch above handle
Bottom Tongue Position: 26-3/4 inch below handle
Ends: Radius / Rounded
See additional information tab for important notes regarding modifications and handing.
Priced and sold as a package.
