Welcome to the UpBeat Store, your ultimate destination for top-tier automotive aftermarket installations, covering both OEM and aftermarket radios with precision and finesse. With extensive experience in the industry, trust us to elevate your driving experience seamlessly. Don\'t forget to follow us and visit frequently for the latest deals. Our dedicated customer service team is here to assist you promptly and professionally as we turn your automotive aspirations into reality!

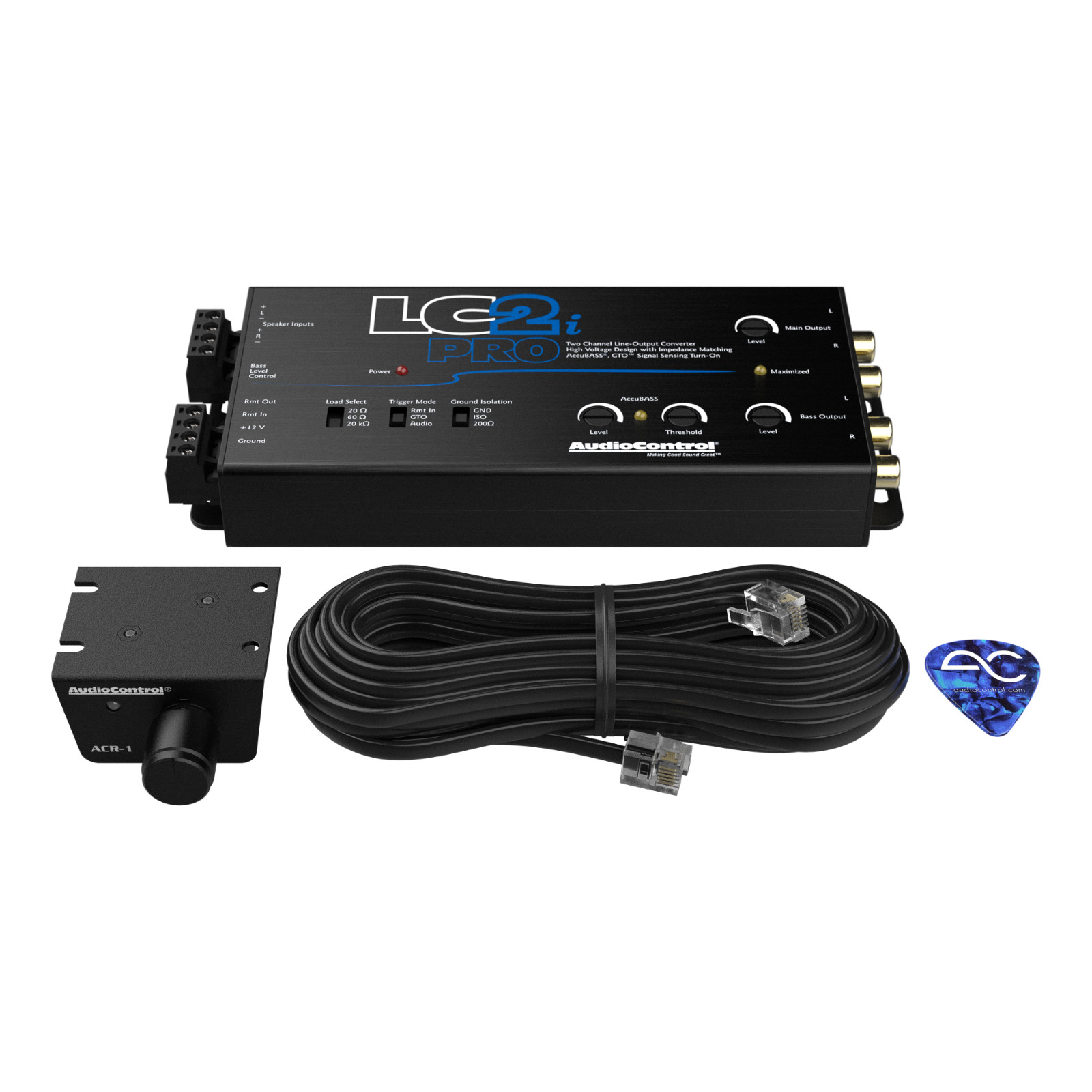

This listing includes a newAudioControlLC2i PRO 2-channel activeline output converter and line driver with ACR-1 remote control designed to work withmost factory systems.
- AudioControl LC2i PRO converter
- Two 4-pin captive-screw connector(installed)
- ACR-1 Level control
- 16.5\' Level-control cable
- Quality Control Certificate
- Owner\'s manual
- Warranty
Features:
- Two channels of active speaker level inputs (up to 40V inputhandling)
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTO™Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote included
- Compact design
Looking for great sound from your factory radio? Would you like to upgrade yourcar\'s premium system? AudioControl\'s LC2i PRO line output converter takesamplified speaker-level signals and converts them into high-quality preampsignals that can be fed to another processor or amplifier. In other words, itlets you create an awesome car audio system without disturbing your factorycontrols or features.
Some factory radios dial down the bass as you turn up the volume to protecttheir speakers. The problem is, they don\'t give it back when you upgrade to anice set of aftermarket speakers. AudioControl packs the LC2i PRO with theirAccuBASS™ circuitry that reverses the factory bass rolloff, giving you the bassyou need to enjoy your music to the fullest. Place the LC2i PRO between yourfactory system and your bass amp, and you\'ll hear a huge difference in bassresponse.
Some premium systems use multi-wire speaker cables for systems with multiplespeakers. The LC2i PRO features two speaker-level inputs that let you connectamplified signals up to 400 watts, including cables from Bose® and otherpremium factory systems. The LC2i then sends out a high-powered preamp signal —up to 9.5 volts RMS — that helps every amp perform to its maximum ability.
This active,high-voltage OEM line converter features a compact chassis for an unobtrusiveinstallation.Two Channel Speaker-Level Input
Accepts up to 400-watt per channel signals. The two-channel line-outputconverter features removable set-screw Phoenix terminals for quick connection.9.5V Preamp Outputs
Equipped with 9.5-volt RMS (13-volt peak) preamp outputs w/ level matchingcontrols. It features a pair of Main preamp outputs (for full-range amplifiers)and a pair of Bass preamp outputs (for subwoofer amplifiers).
The pre-amp output level can easily adjust to its optimum level using the Leveldial and Maximized LED indicator. As the Level control is turned up duringplayback, the Maximized LED will light to indicate the signal is close toclipping and will need to be backed down from that point. This allows you toget the loudest clean signal out to your amp without distortion.
- 20Ω: Best suited for late model Dodge/Chrysler/Jeep/RAM/Fiat vehicles with a non-amplified OEM sound system.
- 60Ω: Best suited for late model Dodge/Chrysler/Jeep/RAM/Fiat vehicles with an amplified, or \"Premium\", sound system.
- 20kΩ: Used for most other vehicle applications.
- GTO (Great Turn On) Signal Sense: This turn-on method can sense a DC offset when the factory radio is powered on.
- Audio: Activates when a sound source is played, regardless of factory radio already being powered on.
- Remote In: Uses the \"traditional\" method of activation, with a +12V input on the Remote In terminal.
Three signal-ground options are provided for eliminating grounding noiseproblems:
- GND: Power ground and audio ground are tied together.
- ISO: Power ground and audio ground are separated.
- 200Ω: Provides 200 ohms of resistance between power ground and audio ground.
Allow users to optimize the bass response to match their speaker system.GTO (Great Turn On)
The LC2i PRO utilizes selectable GTO auto sensing turn-on circuitry so noremote wire is needed. The LC2i PRO turns on using the unit\'s speaker-levelinputs. It also provides a 12-volt trigger output to turn on your amplifier.
TheLC2i PRO requires a hardwired power and ground connection to your vehicle\'s12-volt electrical system. The line-output converter features removableset-screw Phoenix terminals for quick connection.
Includesan ACR-1 wired remote level control for adjusting the Bass Output from thefront seat. A 16.5\' cable, terminated in RJ-14 connectors, is provided forconnection.
- Note: The ACR-1 won\'t increase the Bass Output level past where the top-panel Bass Output Level dial is set to, preventing overloading of the output signal.
- Maximum Input Handling: 40V/400W (20kΩ setting)
- Maximum Output Level: 9.5Vrms
- Output Gain: ± 12dB
- Frequency Response: 20Hz - 50kHz
- THD: 0.01%
- Signal to Noise: >110dB
- ACR-1 Attenuation Range: 0dB to -19dB
- Input Impedance: Selectable - 20Ω, 60Ω, and 20kΩ
- Output Impedance: 150Ω
- Power Draw: 200mA
- Recommended Fuse Rating: 1A (not included)
- Width: 6-15/16\"
- Height: 1\"
- Depth: 3\"
- Weight: 0.75 lb
AudioControl products are designed, engineered, and tested at our facilitylocated in the Pacific Northwest, USA. Given our huge commitment to quality,AudioControl comfortably warranties all materials and workmanship on ourproducts for a period of five years from the date of purchase, provided it isinstalled by an authorized AudioControl dealer. Should you choose to install ityourself, your warranty is one year from the date of purchase from anauthorized AudioControl dealer.
People are scared of warranties. Lots of fine print. Months of waiting around.Well, fear no more, this warranty is designed to make you rave about us to yourfriends. It’s a warranty that looks out for you and helps you resist thetemptation to have your friend, “…who’s good with electronics”, try to repairyour AudioControl product. So go ahead, read this warranty, then take a fewdays to enjoy your new AudioControl processor before registering the warrantycard and comments.
1.You have to go online and register your AudioControlproducts. Alternatively, you may fill out the Warranty Registration card thatcame with your product and mail it to us.
2.You must keep your sales receipt for proof of purchaseshowing when and from whom the unit was bought. We’re not the only ones whorequire this, so it’s a good habit to get into with any major purchase.
3.Your AudioControl products must have originally beenpurchased from an authorized AudioControl dealer. You do not have to be theoriginal owner, but you do need a copy of the original sales slip.
4.You cannot let anybody who isn’t: (A) the AudioControlfactory; (B) somebody authorized in writing by AudioControl to service yourproduct. If anyone other than (A) or (B) messes with your AudioControl product,that voids your warranty.
5.The warranty is also void if the serial number is altered orremoved, or if your AudioControl component has been used improperly. Now thatsounds like a big loophole, but here is all we mean by it. Unwarranted abuseis: (A) physical damage (don’t use it to level your RV); (B) improperconnections (120 volts AC into a 12 volt DC power jack can fry the poor thing);(C) sadistic things (your imagination is best kept private).. This is the bestproduct we know how to build, but if you mount it to the front bumper of yourcar or use it as a counter-weight for your daughter’s trebuchet project,something will go wrong.
6.If an authorized United States AudioControl dealer installsyour component, the warranty is five years.
We recommend having a professional certified technician handle the installation. For any questions or concerns about the product, please contact us through the \"Contact Seller\" feature for technical support or customer assistance.
