B2 Audio 8\" Carbon Fiber Subwoofer RAMPAGE8 V3 1000W RMS Dual 2 Ohm For Sale

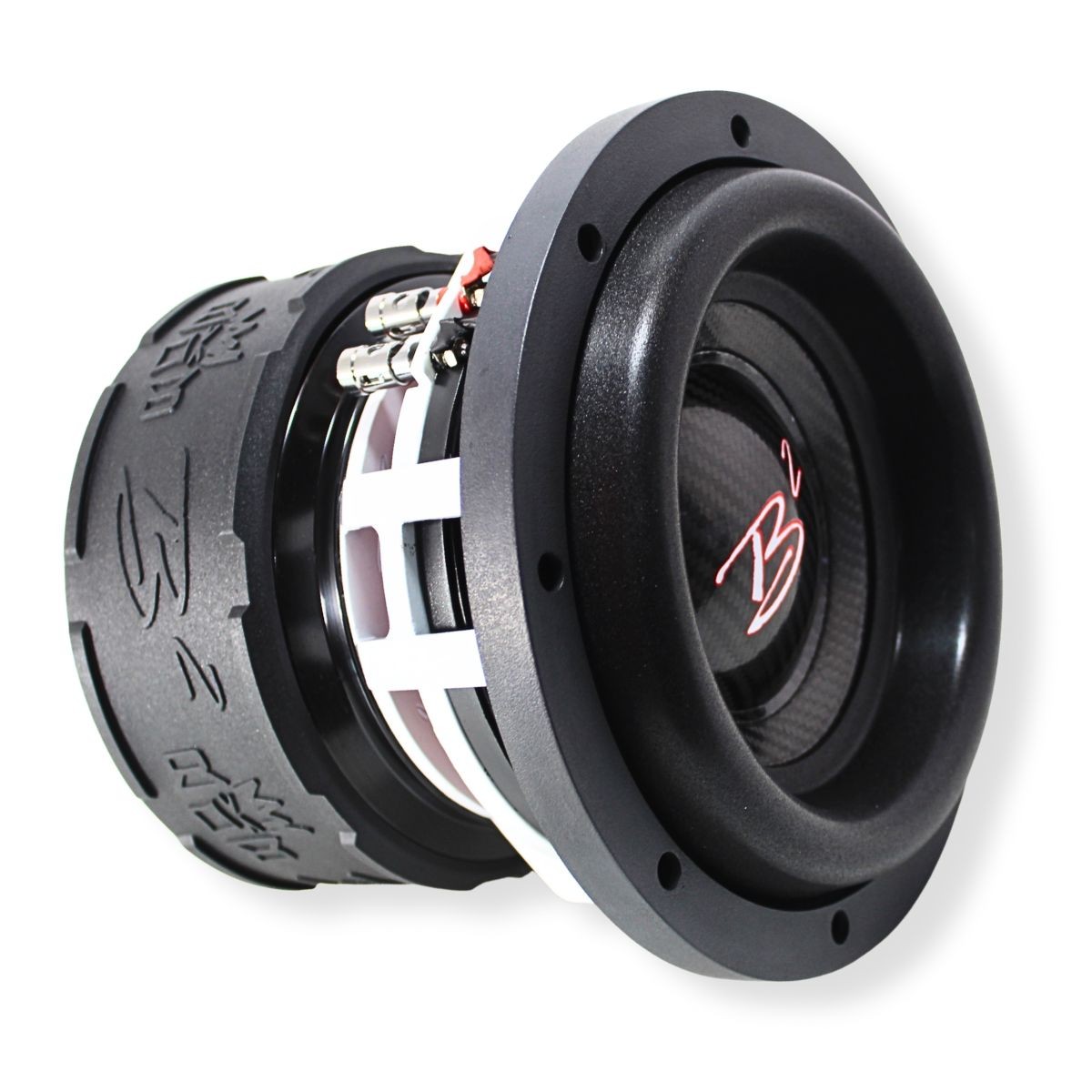

B2 Audio 8\" Carbon Fiber Subwoofer RAMPAGE8 V3 1000W RMS Dual 2 Ohm

B2 Audio RAMPAGE 8 V3 8\" Dual 2-Ohm 2\" Voice Coil 1000W RMS Subwoofer

This Listing Includes:

• (1) B2 Audio Rampage 8\" V3 Dual 2 Ohm Subwoofer

B2 Audio Rampage 8\" V3 packs 1000W RMS and 2000W Max into a compact, durable design. Featuring a carbon fiber cone, dual 2\" aluminum voice coils, and a massive 330 oz ferrite motor, it delivers deep, clean bass with precision. Ideal for sealed, ported, or bandpass enclosures, it\'s built for both daily and SPL setups.

Specifications:

• MAX Power: 2000 Watts
• RMS Power: 1000 Watts
• Impedance: Dual 2 Ohm (DVC 2 ohm)
• Resonance Frequency (Fs): 37.7 Hz
• Frequency Response: 10 Hz - 500 Hz
• Sensitivity: 82.8 dB
• Voice Coil Diameter: 2\" / 50.4 mm
• Winding Material: Copper
• Magnet Type: Ferrite
• Motor Assembly Weight: 330 oz
• Cone Material: Carbon Fiber
• Surround Type: Tall U Shaped Foam
• Push Terminal Gauge: 8 Ga

Thiele/Small Parameters:

• Fs: 37.7 Hz
• Vas: 5.5 L
• Re: 3.8 Ohm
• Qms: 6.14
• Qes: 0.62
• Qts: 0.56
• Cms: 100 μm/N
• MMS: 176 g
• Xmax (one way): 15 mm
• SD: 196.8 cm²
• EBP: 72.5

Dimensions:

• Overall Diameter: 8.66\" / 220 mm
• Baffle Cutout Diameter: 7.28\" / 185 mm
• Total Depth: 6.49\" / 165 mm
• Mounting Depth: 5.90\" / 150 mm
• Magnet Diameter: 6.42\" / 163 mm
• Net Weight: 25.35 lbs / 11.5 kg
• Shipping Weight: 27.56 lbs / 12.5 kg
• Shipping Box: 10.63\" x 10.63\" x 10.63\" / 270 x 270 x 270 mm

Enclosure Suggestions:

• Sealed: 9.2 L / 0.33 ft³, Qtc/F3 = 0.488 / 67 Hz
• Ported Compact: Fb = 45 Hz, Port Area = 18 in², Port Length = 15.7\"
• Ported: Fb = 38 Hz, Port Area = 7.49 in², Port Length = 12.6\"
• Bandpass 4th Order Ratio: 2:1

Upgrade your bass game today - feel the power, hear the difference!

Product Details BrandB2 AudioColorWhiteSize8 inchesStyleRAMPAGEManufacturerB2 AudioProduct Type8\" SubwooferMpnB2-RAMPAGE8-D2-V3

• High Power Handling – 1000W RMS / 2000W Max for hard-hitting bass in daily and SPL applications.
• Premium Build – Carbon fiber cone and tall U-shaped foam surround for strength, control, and durability.
• Massive Motor – 330 oz ferrite magnet and 2\" aluminum voice coil for high output and thermal stability.
• Versatile Performance – Wide frequency range from 10 Hz to 500 Hz with 82.8 dB sensitivity.
• Flexible Enclosure Options – Works in sealed, ported, or bandpass boxes for customizable sound.
