Specification:
Position: Mid Motor
Construction: Geared Motor
Nominal Voltage: 36V
Rated Power: 250W / 350W / 500W
RPM: 78-83
Max Torque:80N.m
Efficiency: 80%
PAS SENSOR: Speed sensor
Weight:3.8kg
Gearsensor Function:Yes
Reduction Ratio: 1:21.9
Noise: <55dB

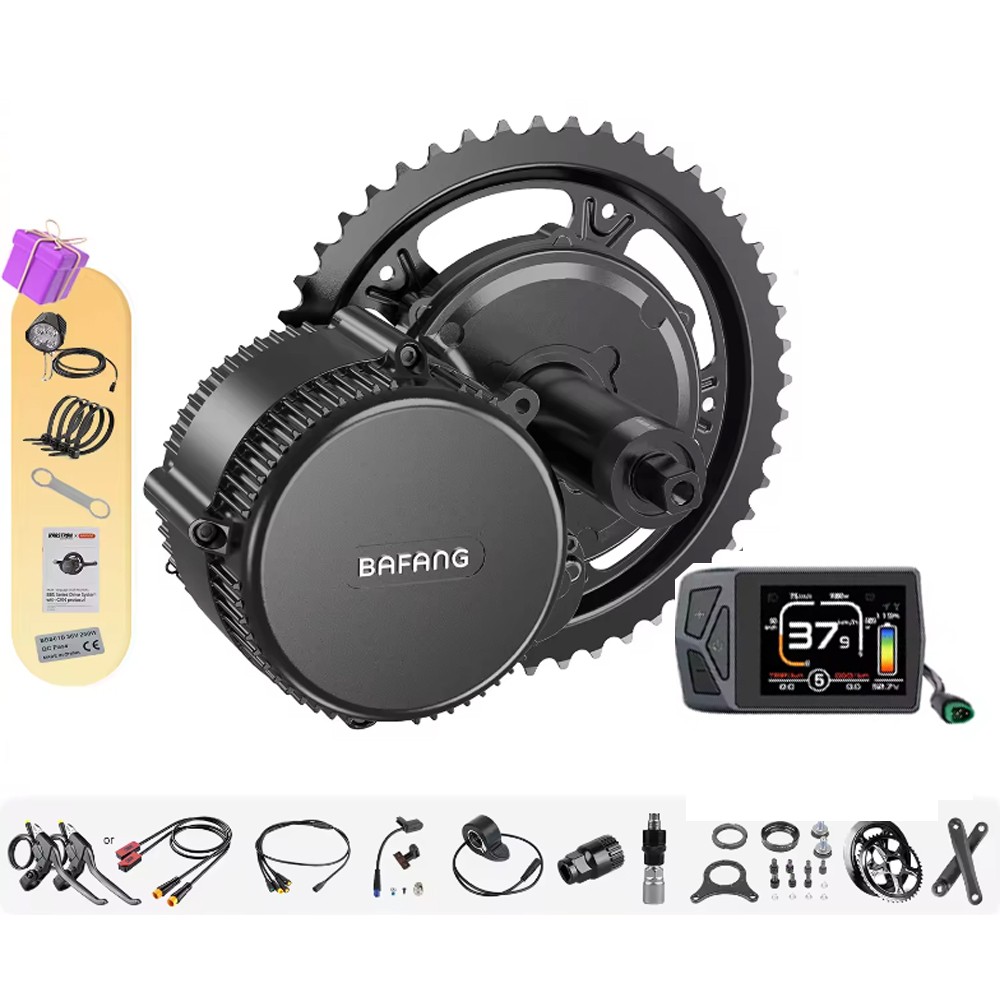

Connector: WaterproorPacking List:1 * 36V Mid drive Motor
1 * Display (Optional, if you choose \"not have\", the parcel will not include)1 * Brake levers or Brake sensor
1 * Thumb throttle
1 * Cranks
1 * Speed sensor
1 * 1T4 cable
1 * Screw and Nut Accessories SetFree gift~1 * Headlight
1 * Wrench
1 * User Manual
1 * 44T Chainring (Email us if you want to change it be 36T/42T)
Note: The motor is designed to fit bottom brackets with a width of68-73mmand an inner diameter of34-36mm.Please note that the motor kit does not include screws for 73mm bottom bracket.If you require, please contact us for assistance.1. CAN Bus Technology & Powerful Performance:
Experience superior control and smooth power delivery with the advanced CAN Bus system. Upgraded dual Hall sensors and current output stability provide a safer, more reliable, and exceptionally responsive riding experience.2. Unmatched Compatibility & Easy Installation:
Designed for a universal fit, this motor seamlessly installs on bikes with 68-73mm wide bottom brackets. It is the perfect conversion solution for most mountain, road, and commuter bikes.Note: Not compatible with carbon fiber frames or coaster brake (pedal brake) systems.3. Ultimate Programming Flexibility:
This CAN bus motor offers unprecedented programming flexibility, significantly enhancing your DIY experience. If your display (such as the VD03, VD618, or VD61,VD18MT) is not programmable, Purchase a CANBUS USB programming cable to customize all parameters via a computer. With a programmable display like the DPC080, DPC010 or EKD01, you can adjust settings wirelessly from the screen or app—no wires required. Both options let you tailor performance to your style.4. Universal Battery Compatibility and Flexibility:
Enjoy freedom of choice. This motor is compatible not only with Bafang batteries, but also with standard, universal 36 e-bike batteries. We offer a range of 15.6Ah e-bike Downtube Battery for you to choose from (if you select the \"not have\" option, your package will not include a battery); The motor is equipped with an XT60 male connector, so ensure your battery connector is compatible with this motor.5. A fully functional and reliable kit:
Your kit includes everything you need to complete your conversion: motor, 44T sprocket, crankshaft, throttle, brake sensor or brake lever, speed sensor, installation tools, and 1T4 cables.
