BAFANG 48V 500W Rear Hub Motor Kit 26\"27.5\"700C Wheel EBike Conversion kits For Sale

BAFANG 48V 500W Rear Hub Motor Kit 26\"27.5\"700C Wheel EBike Conversion kits

Ebike-run Advantages:

1.Global Service: United States warehouse, 2-7 working days fast delivery and local return.

2.Warranty:1 year quality warranty for motor, free repair or replacement if there is any quality Rear Drive System:This Bafang hub motor, which is compatible with the disc brake, has a rated power of 500W, providing ideal power for vehicles.

Two riding modes:Pure electric bikes & pedal bicycle, switch between pure electric mode and assist mode at will.

Super Cost-Efficient:Speed up to 38-40 KMH, efficiency ≥ 80%.

Universal Compatible:It\'s compatiable with mountain bike,road bike, racing bike ect bikes with 135-142mm rear drop out and 100mm front drop out.

Motor Specification:

Model: RM G020.500.DC

Brake Type: V-Brake

Wheel Diameter (Inch): drive

Rated Voltage (DCV): 48

Rated Power (W): 500

Max Torque: 65 N.m

Efficiency (%)≥ 80

Color: Black

Weight (kg): 3.5kg

Noise Grade (dB)< 55

Operating Temperature: -20-45℃

Controller Specification:

Voltage: 48V

Power: 500W

Current: 18A± 1

Battery Specification:

48V 20Ah HaiLong Max Downtube Specification:

Normal Voltage: 48V

Rated Capacity:20AH

Battery Cell: LG / Samsung 21700 5000mah

Array mode:13S4P

Battery size: 365*90*127mm

Battery Weight:5KG

BMS:30A

Peak current: 60A

Charge voltage:54.6V

Discharge cut off voltage:36.4V

Way of Charge:CC/CV

Cycle Life:1000 times

Charge Temperature:-15-65℃

Discharge Temperature:-15-65℃

Protection Function:Over charge, Over discharge,Over current, Short circuit,Balance

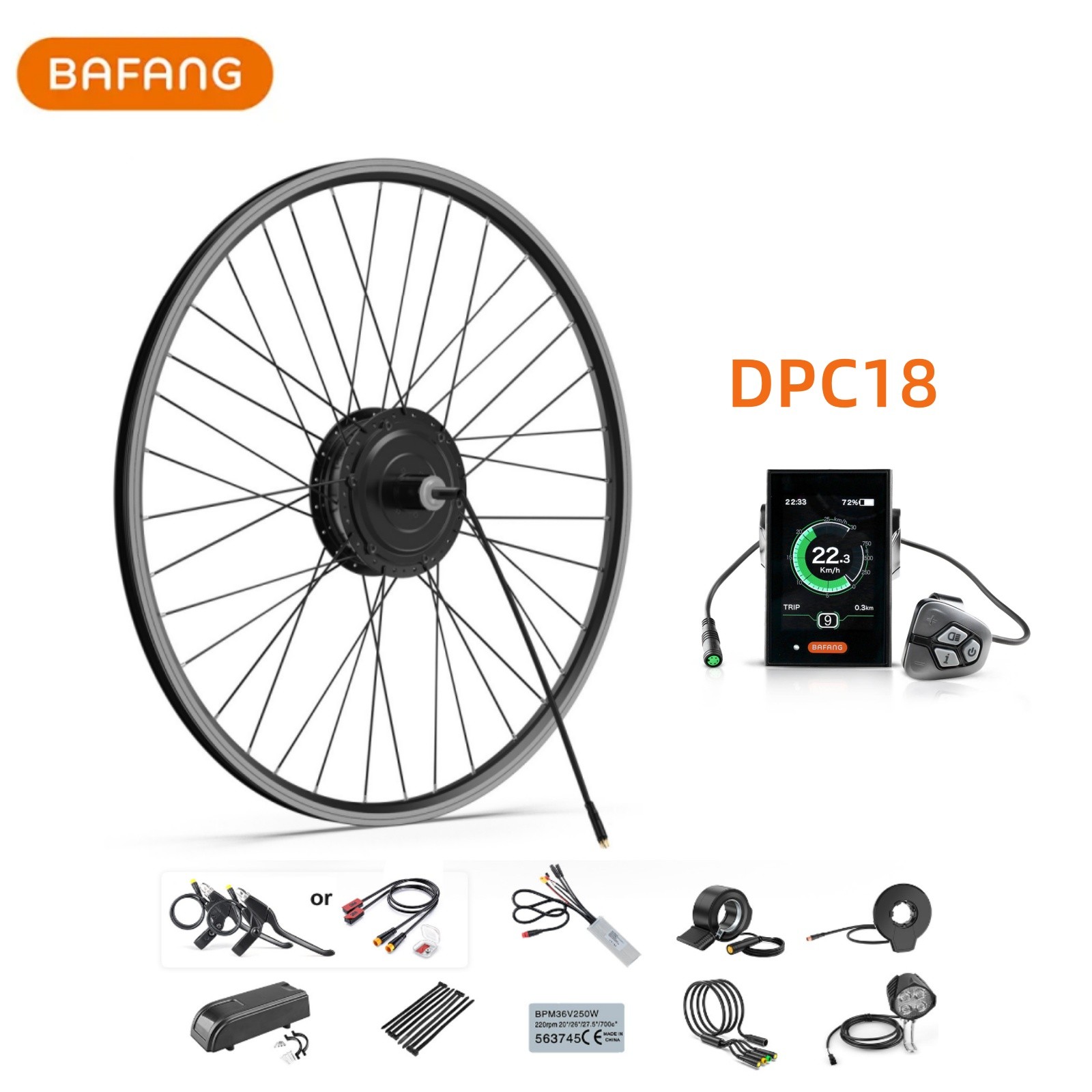

Packaging List:

1 PC * 48V 500W Cassette Hub Motor with Rim and Spokes

1 PC * 48V 500W Motor Controller

1 PC * Controller Box

1 PC * Display Optional (P860ML, DPC18(0-9),EKD01,DM03,,500C optional)

1 PC * 1T4 Cable

1 PC * Thumb Throttle

1 PC * PAS Sensor

1 Pair * Brake Levers

1 PC* Battery+Charger

Gifts: 1 * Front Light

Battery Information:

If you choose the battery option, it comes with a charger.

If you choose \"no battery,\" please note that the motor kit does not include a battery. Thank you.

FAQ:

Q:How do I know if this rear hub drive motor fits for my bike?

A: The rear hub cassette motor fits for the bike with rear dropout size \"135-142mm\", DC type fits for 6-9 speeds cassette.

Q:Can I install the motor as soon as I receive it?

A:Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. If there is a problem, please do not hesitate to contact us.
