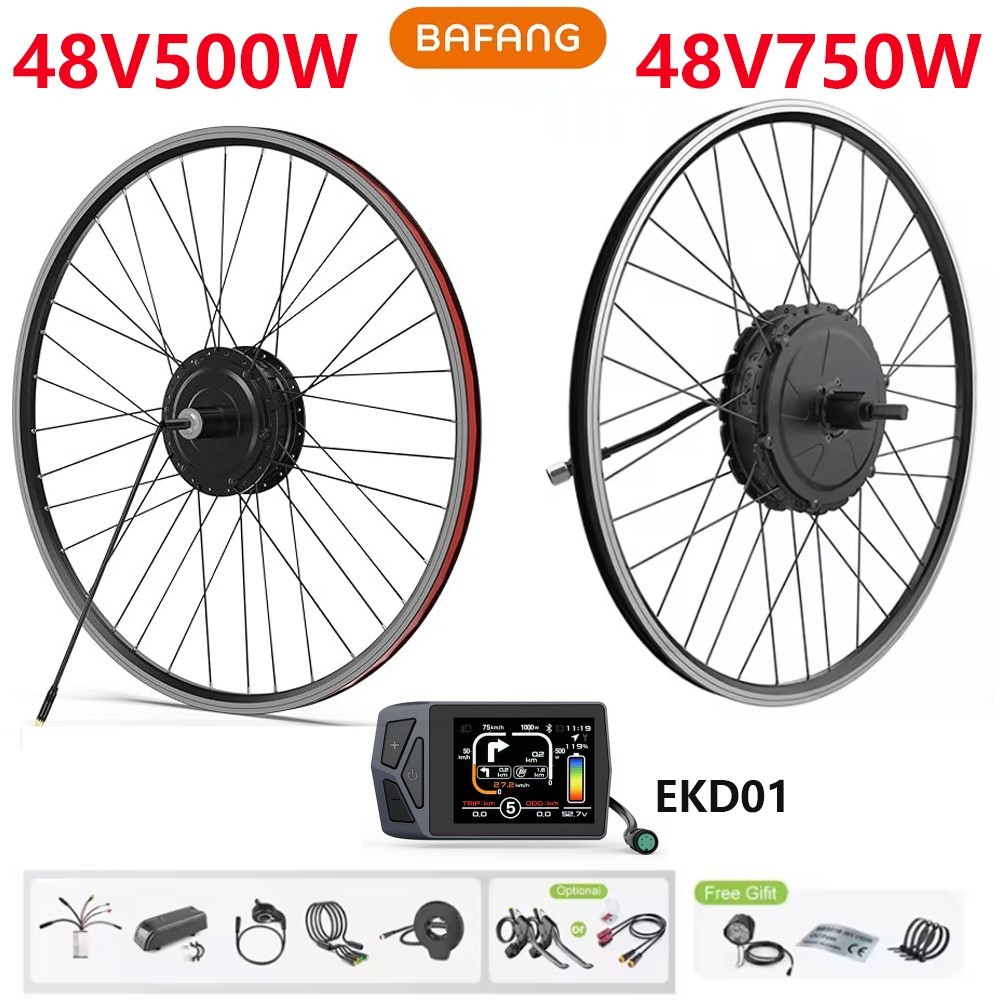

BAFANG 48V 500W/750W Rear Hub Motor Kit 26\"27.5\"700C Wheel EBike Conversion kits For Sale

48V500W135MM Rear hub wheel motor details:Mounting Position : Rear Drive
Rated Voltage (V) : 48V
Rated Power (W) : 500W
Max Torque (N.m) : 65N.m
Max Speed under Load (26\" Wheel) : 40KM/h
No-load Current (A) : ≤1.8A
Rated Current (A) : ≤13.8A
Wheel Size Option (Inch) : 20/26/27.5/700C
No-load Speed (Rpm) : 390±15
Rated Speed (Rpm) : 345±15
Freehub Body : Cassette
Gear Type : Gear Drive
Motor Type : Brushless
Number of Turns (T) : 10
Magnet Poles : 6
Rated Efficiency (%) : ＞75%
Noise level (dB) : <55 dB
Operating Temperature (℃) : -20℃ ~ 45℃
Waterproof Level : IPX5
Over Locknut Dimension (MM) : 138±1
Compatible Dropout Spacing (MM) : 135-142MM
Max Current of Controller (A) : 18A
Rated Current of Controller (A) : 9A
Rated Voltage of Controller (V) : 48V
Controller Low-Voltage Protection (V) : 39±1
Controller Size (MM) : 93.8MM*49MM*29MMPacking List

• 1 pc 48V500W Rear Hub Motor with Wheel
• 1 pc Display(Optional)
• 1 pc Left PAS sensor
• 1 pc Controller Box
• 1 pc Motor Controller
• 1 pc Brake Lever or Brake Sensor
• 1 pc Thumb Throttle
• 1 pc 1T4 Cable
• 1 pc Headlight
• 1 pc Plastic Straps
• 1 pc 36V250W Sticker

48V750W135MM Rear hub wheel motor details:

Model: RM G0900.750.DC

Mounting Position: Rear Drive

Rated Voltage (V): 48V

Rated Power (W): 750W

Max Torque (N.m): 80N.m

Rated Efficiency (%) : ＞78%

Noise level (dB): <55 dB

Max Speed under Load (26\" Wheel): 45KM/h

No-load Current (A): ≤2.5A

Rated Current (A): ≤22A

Wheel Size Option (Inch): 26/27.5/700C

No-load Speed (Rpm): 390±10

Rated Speed (Rpm): 360±10

Freehub Body: Cassette

Gear Type: Gear Drive

Motor Type: Brushless

Number of Turns (T) : 9

Magnet Poles: 6

Spoke Specifications: 36H*12G

Operating Temperature (℃): -20℃ ~ 45℃

Waterproof Level: IPX5

Over Locknut Dimension (MM): 138±1

Motor Axle Length (MM): 200±1

Compatible Dropout Spacing (MM): 135-142MM

Max Current of Controller (A) : 22A

Rated Current of Controller (A): 11A

Rated Voltage of Controller (V): 48V

Controller Low-Voltage Protection (V) : 39±1

Controller Size (MM): 109MM*55MM*34MM

Packing List

• 1 pc 48V750W Rear Hub Motor with Wheel
• 1 pc Display(Optional)
• 1 pc Left PAS sensor
• 1 pc Controller Box
• 1 pc Motor Controller
• 1 pc Brake Lever or Brake Sensor
• 1 pc Thumb Throttle
• 1 pc 1T4 Cable
• 1 pc Headlight
• 1 pc Plastic Straps
• 1 pc 36V250W Sticker

PLEASE NOTE: The motor NOT come with any battery.1. Powerful with higher Torque:
Experience thrilling acceleration and conquer steep hills with the robust BAFANG 48V 500 and 750W rear hub motor. Generating a massive 65 N.m (500W) 80N.m(750W) of torque and speeds up to 40KM/H (500W) 45KM/H(750W), it transforms your bike into a powerful e-bike for any adventure. Despite its power, it operates at a quiet 55dB noise level, ensuring a smooth and peaceful ride on city streets or mountain trails.2. Universal Fitment For Easy Conversion:
This kit is engineered for a seamless DIY installation. It universally fits most 20\",26\", 27.5\", and 700C (29\") wheels with standard 135mm - 142mm rear dropout spacing. It\'s compatible with 10-speed or less than 10-speed cassettes and supports both V-Brakes and Disc Brakes, making it the perfect upgrade for a wide range of mountain, road, hybrid, and city bikes.Please note: The thru-axle quick release is NOT compatible with this motor.3. IPX5 Waterproof & Complete All-In-One Kit:
Built to withstand the elements, the motor and controller boast an IPX5 waterproof rating, protecting against rain and splashes for reliable all-weather commuting. Everything you need for a successful conversion is in the box: the motor wheel, intelligent controller, PAS sensor, throttle and all necessary cables & tools.4. LCD Options:
Customize your experience by pairing it with a premium LCD display (sold separately), such as the DPC18,EKD01,SW2-M25,DZ40 , to monitor your speed, battery level, distance, and assist mode in real-time.On Oct 24, 2025 at 02:04:27 PDT, seller added the following information:On Oct 27, 2025 at 21:01:08 PDT, seller added the following information:
