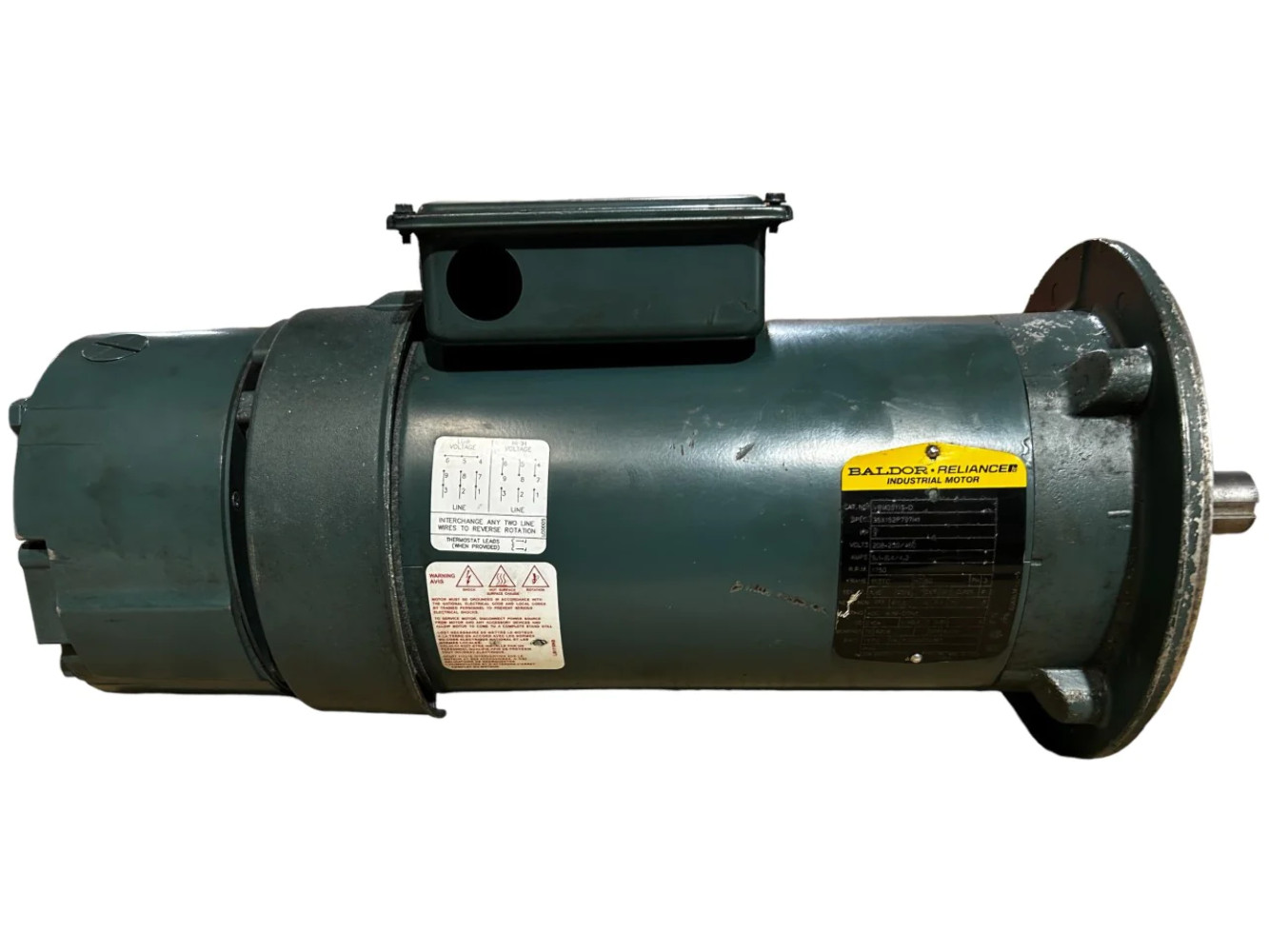

Baldor-Reliance Motor, VBM3611T-D, 3HP, 1750RPM, 3PH, 60HZ, 182TC, 3542M, TEFC For Sale

Baldor-Reliance Motor, VBM3611T-D 3HP, 1750RPM, 3PH, 60HZ, 182TC, 3542M, TEFC, F3 -New No Box PRODUCT DISCLOSURE: All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

*This product has been subjected to minor smoke and cosmetic damages from long term storage or shipment. The cosmetic damages will not affect the overall performance of the product.

• Catalog Number- VBM3611T-D Enclosure- TEFC Frame- 182TC Frame Material- Steel Frequency- 60.00 Hz Motor Letter Type- Three Phase Output @ Frequency- 3.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency- 1800 RPM @ 60 HZ Voltage @ Frequency 460.0 V @ 60 HZ
  230.0 V @ 60 HZ
  208.0 V @ 60 HZ XP Class and Group- None XP Division- Not Applicable Agency Approvals- CE
  CSA
  UR Ambient Temperature- 40 °C Auxillary Box- No Auxillary Box Auxillary Box Lead Termination- None Base Indicator- No Mounting Bearing Grease Type- Polyrex EM (-20F +300F) Blower- None Brake Torque- 15.0 lb-ft Current @ Voltage- 8.400 A @ 230.0 V
  9.100 A @ 208.0 V
  4.200 A @ 460.0 V Design Code- A Drip Cover- No Drip Cover Duty Rating- CONT Efficiency @ 100% Load- 87.5 % Electrically Isolated Bearing- Not Electrically Isolated response Device- NO response High Voltage Full Load Amps- 4.2 a Front Face Code- Fan Housing Cover For Brake Front Shaft Indicator- None Heater Indicator- No Heater Insulation Class- F Inverter Code- Not Inverter KVA Code- L Lifting Lugs- No Lifting Lugs Locked Bearing Indicator- Locked Bearing Motor Lead Exit- Ko Box Motor Lead Termination- Flying Leads Motor Lead Quantity/Wire Size- 9 @ 18 AWG Motor Type- 3542M Mounting Arrangement- F3 Number of Poles- 4 Overall Length- 20.62 IN Power Factor- 78 Product Family- General Purpose Product Type- D-SERIES BRAKE MOTORS Pulley End Bearing Type- Ball Pulley Face Code- C-Face Pulley Shaft Indicator- Standard Rodent Screen- None Service Factor- 1.15 Shaft Diameter- 1.125 IN Shaft Extension Location- Pulley End Shaft Ground Indicator- No Shaft Grounding Shaft Rotation- Reversible Shaft Slinger Indicator- No Slinger Speed- 1750 rpm Speed Code- Single Speed Motor Standards- NEMA Starting Method- Direct on line
