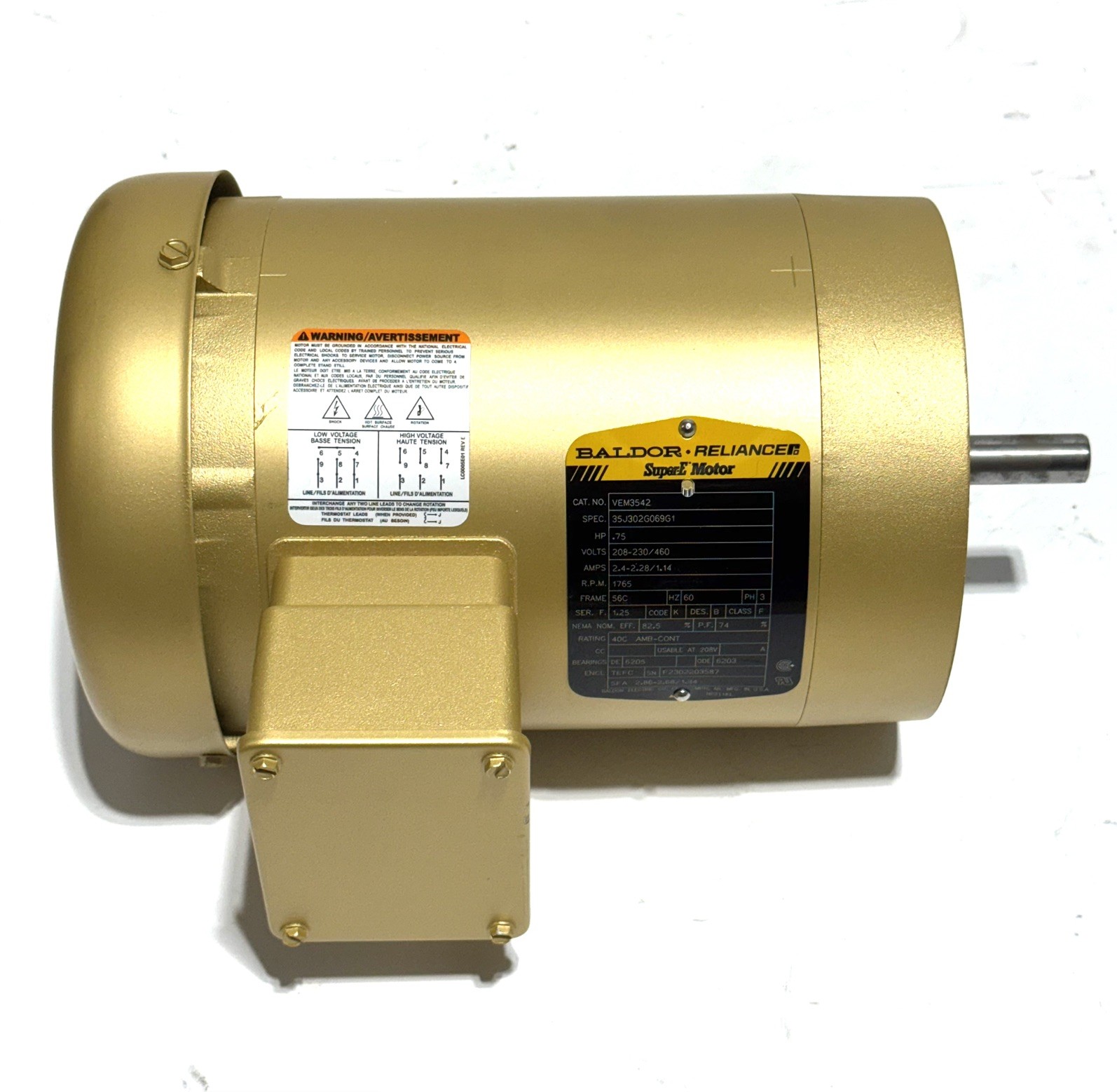

Baldor Reliance Super-E VEM3542 Premium Efficiency 3-Phase AC MotorCondition:
Brand New – Never Installed or Used. Motor is exceptionally clean and shows no evidence of prior installation. Please review photos for exact condition.Equipment Compatibility / Common Applications:The Baldor VEM3542 is a 56C C-face, three-phase industrial AC motor designed for equipment requiring a 3/4 HP, approximately 1800 RPM motor.Common applications can include:* Pumps
* Centrifugal pumps
* Hydraulic equipment
* Machine tools
* Conveyors
* Fans and blowers
* Industrial processing equipment
* Packaging machinery
* Material-handling equipment
* Other equipment designed for a NEMA 56C C-face motorCompatibility should be determined by horsepower, voltage, phase, RPM, frame/mounting configuration, shaft dimensions and application requirements rather than equipment brand alone.Manufacturer / Model:* Brand: Baldor Reliance
* Series: Super-E
* Catalog Number: VEM3542
* Specification: 35J302G069G1
* Manufacturer: Baldor Electric Co.
* Made in USASpecifications:* Horsepower: 0.75 HP / 3/4 HP
* Phase: 3-Phase
* Frequency: 60 Hz
* Voltage: 208-230/460 VAC
* Speed: 1765 RPM
* Frame: NEMA 56C
* Enclosure: TEFC – Totally Enclosed Fan Cooled
* Duty: Continuous
* Service Factor: 1.25
* NEMA Design: B
* Insulation Class: F
* NEMA Nominal Efficiency: 82.5%
* Power Factor: 74%
* Ambient Rating: 40°C
* Drive-End Bearing: 6205
* Opposite Drive-End Bearing: 6203
* Rotation: Reversible by interchanging any two line leads
* C-Face Mount
* No Base / Footless ConfigurationBaldor’s current technical catalog confirms VEM3542 as a 0.75 HP, 1765 RPM, 3-phase, 60 Hz, 56C-frame TEFC motor. Amperage:Your exact motor nameplate shows:* 208V: 2.4A
* 230V: 2.28A
* 460V: 1.14AService-factor amperage:* 208V: 2.86A
* 230V: 2.68A
* 460V: 1.34AThe slight amperage differences between older VEM3542 production specifications and Baldor’s current catalog are normal specification revisions; for this particular motor, the physical nameplate values shown in the photos should take precedence. Item Details:Baldor Reliance Super-E motors are designed for industrial continuous-duty applications where reliability, efficiency and long service life are important.This VEM3542 uses a NEMA 56C C-face mounting configuration, making it particularly useful for direct-mounted equipment such as pumps and other industrial machinery.The TEFC enclosure helps protect the internal motor components from dirt and contaminants while an external fan provides cooling.Features:* Baldor Reliance industrial motor
* Super-E efficiency series
* 3/4 HP output
* 208/230/460V multi-voltage operation
* Three-phase power
* 1765 RPM rated speed
* NEMA 56C C-face
* TEFC enclosure
* Continuous-duty rated
* 1.25 service factor
* Class F insulation
* Reversible rotation
* Heavy-duty industrial construction
* Made in USACommon Replacement Applications:This motor can be an excellent replacement candidate for failed 3/4 HP industrial motors where the equipment requires:* 3-phase power
* 208/230/460V compatibility
* Approximately 1750–1800 RPM
* NEMA 56C frame
* C-face mounting
* TEFC enclosure
* Compatible shaft and mechanical dimensionsBuy With Confidence:* Fast Shipping
* Parts inspected and securely packed prior to shipping
* You will receive the exact item shown in the picturesPlease Note:* 30-Day Returns Accepted, Buyer Pays Return Shipping* This is a 3-phase motor and will not operate directly from standard single-phase power without appropriate equipment.
* Please verify voltage, phase, horsepower, RPM, NEMA frame, C-face mounting, shaft dimensions and equipment requirements before purchasing.
* Electrical installation should be performed according to the motor wiring diagram and applicable electrical codes.If you have any questions, feel free to message us!
