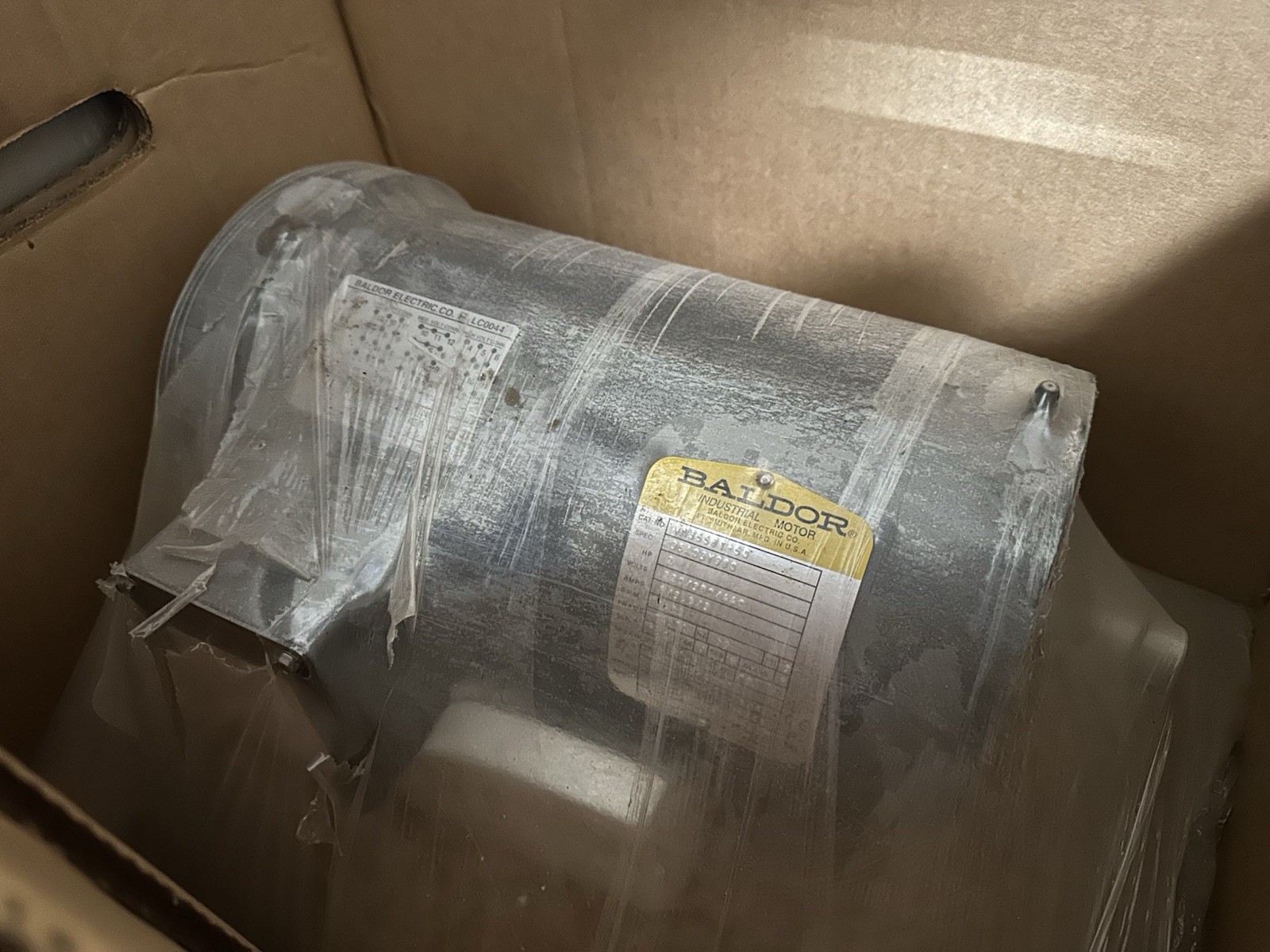

New Old stock. Specs on the plate in the photo. Made in the USA!
Catalog Number VM3558T-50
Enclosure TEFC
Frame 145TC
Frame Material Steel
Frequency 50.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 2.000 HP @ 50 HZ
Phase 3
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage @ Frequency 220.0 V @ 50 HZ
380.0 V @ 50 HZ
440.0 V @ 50 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 6.000 A @ 220.0 V
3.500 A @ 380.0 V
3.000 A @ 440.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.5 %
Electrically Isolated Bearing Not Electrically Isolated
response Device NO response
High Voltage Full Load Amps 3.0 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Type 3532M
Mounting Arrangement F1
Number of Poles 4
Overall Length 14.19 IN
Power Factor 79
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1425 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
Performance at 440 V, 50 Hz, 2 hp
Typical performance; not guaranteed values.
General Characteristics
Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 8.5 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 75° C
Temp. Rise @ S.F. Load 89° C
Start Configuration DOL
Break-Down Torque 29 LB-FT
Pull-Up Torque 26 LB-FT
Locked-Rotor Torque 27 LB-FT
Starting Current 23 A
Load Characteristics
Power
