Bio-Rad Bio-Plex Pro II Automated Microplate Wash Station - Magnetic Bead Washer for 96-Well Plates, ELISA Assays, Luminex Compatible, Vacuum Filtration Option, Used from University Medical Lab in Good Working Condition

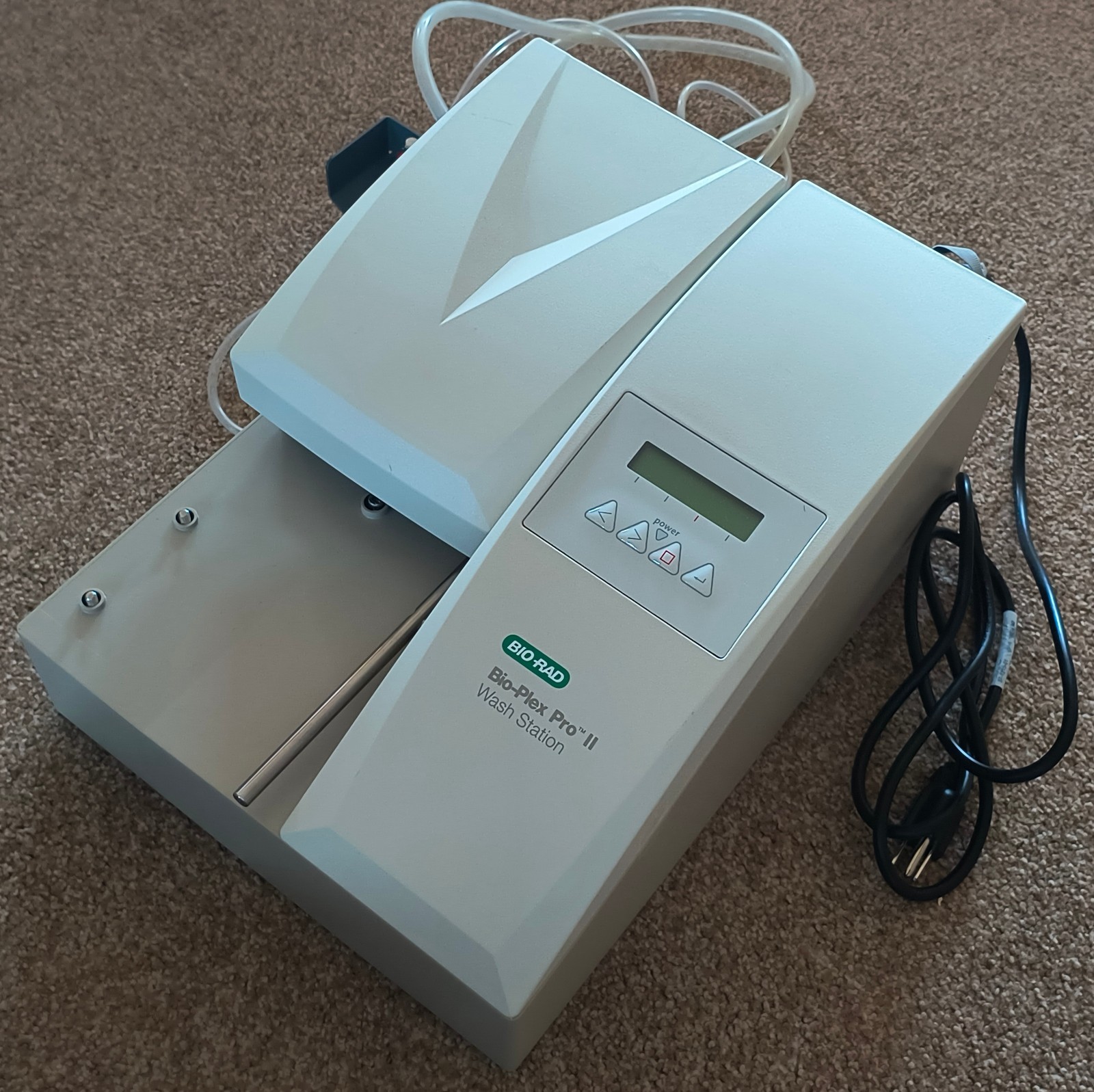

This Bio-Rad Bio-Plex Pro II Wash Station (Model: Bio-Plex Pro II, REF: 30034377, SN: 1010004627) is a used automated microplate washer designed for efficient washing of 96-well plates in biological and medical laboratory settings. It was previously used in a university medical lab for bead-based multiplex assays and ELISA protocols until replaced by a newer model; it was in good working condition at the time of decommissioning. Powers on. This unit is compatible with Bio-Plex Pro assays, MagPlex beads, and Luminex systems, making it ideal for immunology, microbiology, and high-throughput screening applications.
Key features include an 8-channel manifold for precise dispensing and aspiration, magnetic plate carrier for hands-free magnetic bead washing, and low-level vacuum filtration to minimize bead loss during gentle aspiration. The system supports up to 4 dispense channels (L1-L4), with L1 and L2 fully tubed using clear, flexible silicone tubing (no cracks or brittleness observed) and L3/L4 securely capped with factory plugs for optional expansion. The waste line (W) is connected with minimal yellowing near the fitting, indicating careful prior use. Internal components, such as the vacuum pump and solenoid valves, are all intact with no signs of leaks, corrosion, or damage—visible through the bottom access panel. The manifold needles are clean, straight, and unclogged.
Specifications:
- Wash Method: Vacuum aspiration with magnetic bead compatibility; vacuum range -50 to -150 mbar
- Dispensing Channels: 8 (manifold), up to 4 input lines
- Residual Volume (Magnetic Wash): <4 μL
- Dispensing Accuracy: ≤2% at 300 μL
- Dispensing Precision: CV ≤4% over the plate at 300 μL
- Magnetic Field: 4,500 ± 200 gauss
- Plate Capacity: One 96-well microtiter plate (≤0.75" height)
- Installed Options: Low Level Vacuum Filtration (30032418), Plate Carrier STD (30021927), Plate Carrier Smart 2 MBS (30039258), Manifold 8CH STD (30022336), 2 Input Channels STD (30023425)
- Power Requirements: AC 100-240V, 50/60Hz, 65VA (IEC C13 inlet; power cord included)
- Dimensions (W x D x H): 28 x 37 x 18 cm (11 x 14.6 x 7.1 in)
- Weight: 6.6 kg (14.5 lb)
- Communications: RS-232 and USB for integration with Bio-Plex Manager software
- Condition Details: Minimal cosmetic wear (minor surface blemishes), clean internals, all original tubing and quick-connect fittings included. Unit powers on with a standard IEC C13 cable (included).
This microplate wash station enhances lab efficiency for automated plate washing in bead assay workflows, ELISA plate preparation, and multiplex immunoassay processing. Ships with all visible accessories shown in photos (tubing, plate carrier, manifold). Free shipping within the US. 30-day return policy: Full refund if not as described, with seller-paid return shipping.
