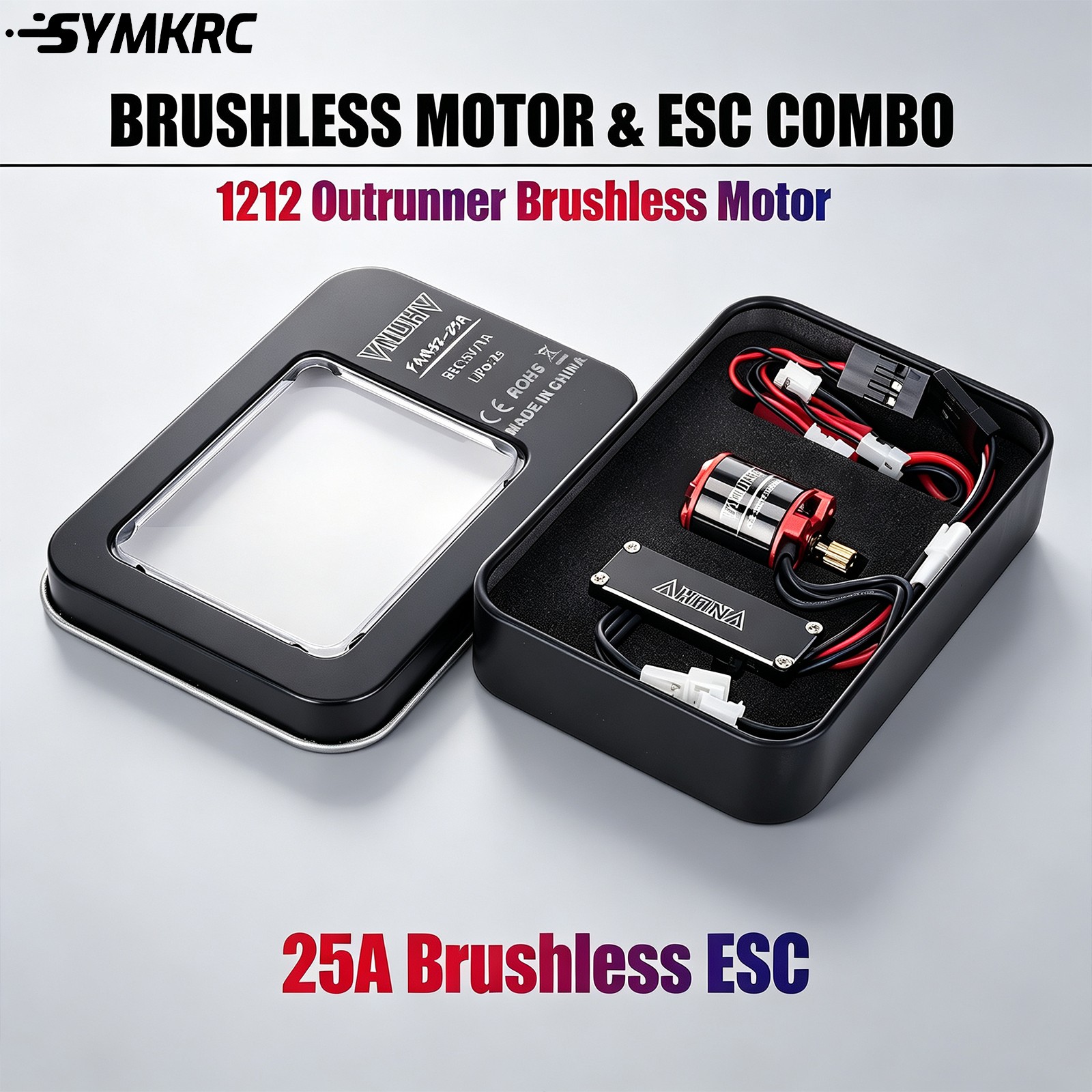

Brushless ESC Motor Combo FAM32 25A Mini ESC 1212 Motor Outrunner Motor For RC 1/30 Crawler Car Axial SCX30 Upgrade Parts Note:
It needs to be used with a remote control equipped with an independent FOC technology – ensures silky‑smooth low‑speed operation and strong starting torque.Adjustable parameters – compatible with optional software for fine‑tuning to suit different motor types.Low‑voltage protection – protects your 2S Li‑Po battery from over‑discharge.Compact metal case – high integration, lightweight, and easy to mount in small chassis.Built‑in BEC – 5V / 1A output powers your receiver and Name:1212 5000KV Brushless Motor
Color: Black
Mounting hole spacing:8mm/0.32inch
Rated Voltage Range:1S-3S Li-PO, 7.4V
No load current (A/7.4V): ≤0.9A
No load speed (rpm/7.4V): 37000 ± 5%
Motor internal resistance (m Ω) (ambient temperature: 25 ℃) : 150m Ω± 3%
KV value: 5000KV
Number of slots: 9N12P
Whole machine weight (g): 15.5g
Whole machine withstand voltage (DC): DC500V (3S)
Whole machine balance (mg): ≤ 15mg
Steering (end view of shaft extension): clockwise/counterclockwise
Operating environment temperature (℃): -10 ℃ -65 ℃
Storage temperature (℃): -10 ℃ -50 ℃
Storage humidity (%): ≤ 85%
Gear Number: 11T
Non destructive installation for scx30
Item Name:ESC – FAM32‑25A 25A Brushless
Input voltage:2S Li‑Po only
Continuous / Peak current:25A / 60A
BEC output:5V / 1A
Compatible motors:1212 / 1224 / 1621 outrunner motors
Compatible for 1/18 1/24 1/28 1/30 crawlers & off‑road
Dimensions:35 × 12 × 8 Included:
1 × 1212 5000KV Brushless Motor1 × 25A Brushless ESC
