Specification:Taper Size: CAT40Adapter/Holder Type: End Mill HolderHolding portion: 3/4"largest OD diameter: 44mmMaterial: Alloy Steel, Stainless SteelItem Diameter: 0.75 InchesCompatible Devices: Drilling Machine, Grinding Machine, Lathe, Milling MachineGage Length projection: 90mm/3.54”Thread: 5/8"-11Maximum TIR: 0.0002"Balanced to: G2.5/25000RPMIncluded hydraulic sleeve sizes: 1/4", 5/16", 3/8", 1/2", 5/8" CAT40 3/4” Alloy Steel Hydraulic Chuck W. 5 Reduction Sleeves G2.5/25000RPM
Specification:
Taper Size: CAT40
Adapter/Holder Type: End Mill Holder
Holding portion: 3/4"
largest OD diameter: 44mm
Material: Alloy Steel, Stainless Steel
Item Diameter: 0.75 Inches
Compatible Devices: Drilling Machine, Grinding Machine, Lathe, Milling Machine
Gage Length projection: 90mm/3.54”
Thread: 5/8"-11
Maximum TIR: 0.0002"
Balanced to: G2.5/25000RPM
Included hydraulic sleeve sizes: 1/4", 5/16", 3/8", 1/2", 5/8"
Product Function Description:
This product has undergone rigorous quality testing.
Durable and easy to install and replace.
The most cost-effective and best after-sales service.
Quality assurance that gives you peace of mind.
Features:
Highly performant hydraulic chuck boasting superior concentricity and repeatability; Ideal for machining parts that require tight tolerances.
The hydraulic chuck holds 3/4" shank diameters without the use of any sleeves; Can hold an expanded range of shank diameters through the use of the included hydraulic sleeves.
360 degree tool grip along the entire length of bore resulting in an evenly distributed clamping force and superior concentricity.
Ideal for end milling, drilling and other critical rotary tool applications.
1/4 Allen wrenches to lock the cutter shank. Coolant tru.
Includes: Chuck Key; Container: Plastic Case
Package Includes:

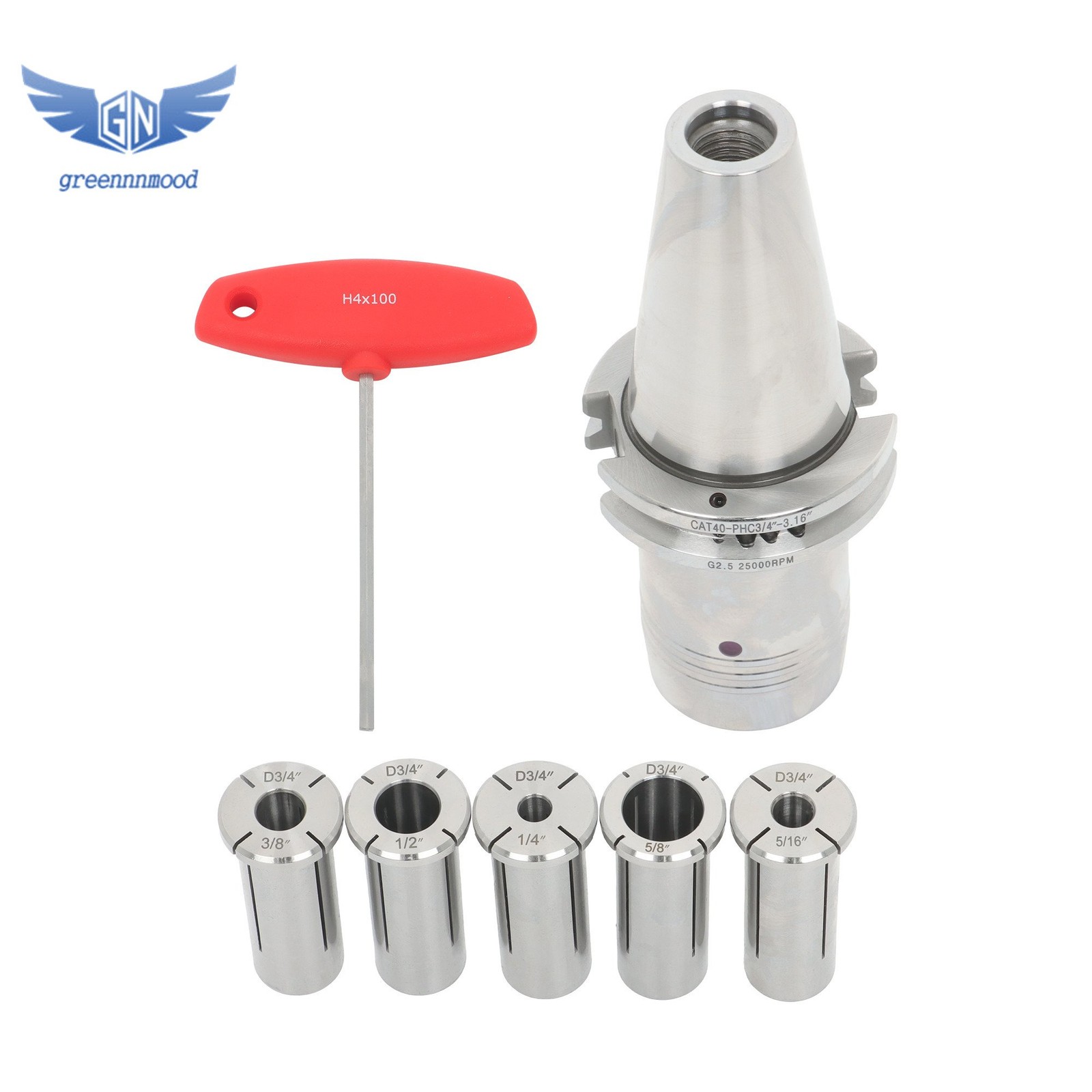

CAT40 3/4" Hydraulic Chuck W. 5 Reduction Sleeves G2.5/25000RPM
