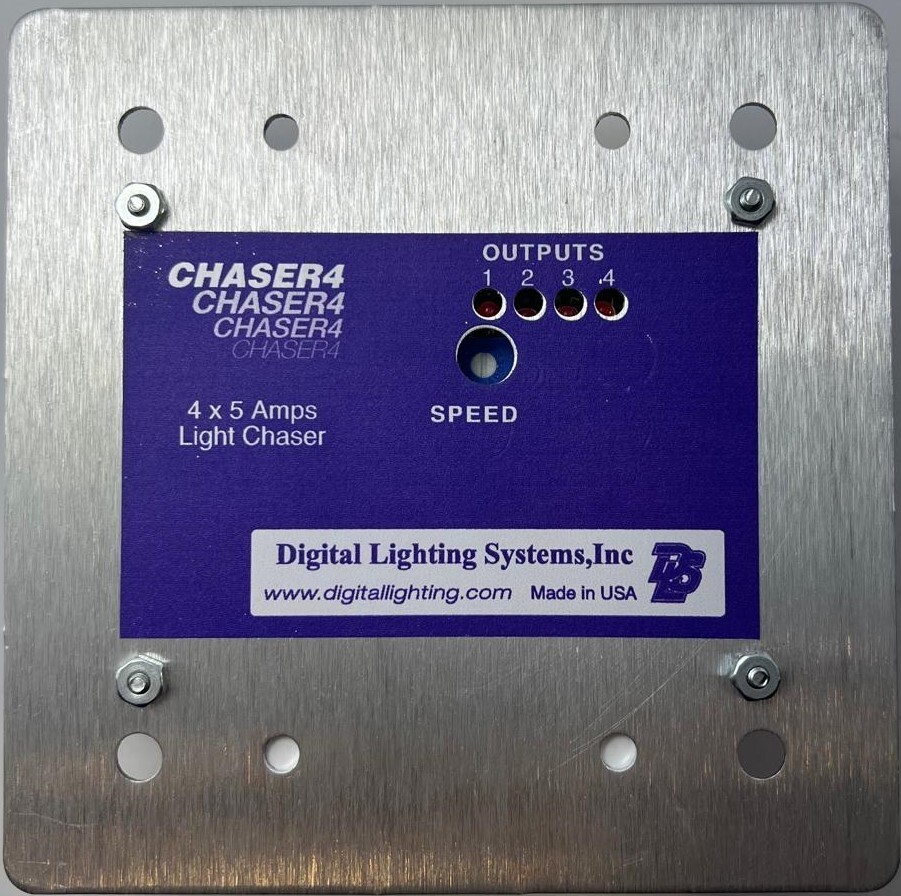

CHASER4: lighting chaser controller 4 x 600W @120V LED lights/neon - Made in USA For Sale

User selectable 4, 3 or 2 Circuit ( 4, 3 or 2 Point ) Electronic Lighting Chaser & flasher

BROCHURE Made in USA

• Adjustable Chase Rate from around 1 step per second to 30 per second.(slower rates optional)
• All solid-state top quality components.
• Uses 25 Amps output Triacs ( load rated at 20% )
• User selectable, 2,3 or 4 channel sequences.
• Built in circuit protection to prevent Voltage DC components. Protects Neon and other primary switched transformers.
• Open frame Aluminum face plate

• Single-Lamp Chase (1-On/3-Off): 4 x 5 A.
• Outputs, 600 W. each; total loads on 4 channels 2400 Watts @ 120 VAC
• Internal 5 A. Fuse Protection.
• Screw-terminal for Quick wiring

• Aluminum Plate 4.8\" x 4.8\" x 1.75\".
• Compatible With 2-Gang DEEP Wall Box . (Not Supplied )

Warranty:TWO year limited factory warranty

TheCHASER 4could be set by user for 4, 3 or 2 points solid-state lighting chaser / Flasher. It is available in 3 different models for 12-24VAC ,120VAC or 220 VAC ighting chase. It is ideal for limited budget applications requiring simple Light chase sequences.

Standard Single Light Chase 1-On / 3-Off \" sequencer.

The Speed of the lighting chase Rate is easily accessible from the front panel. TheCHASER4Lighting Chasers are very compact in size and can be directly installed on top of a standard 2-gang electric wall box. In contrast with electro mechanical flasher units, they are competitively priced and will provide years of trouble-free operation. The line-voltage models are capable of driving incandescent, flashable LED, cold-cathode, neon, and magnetic step-down transformers.

CHASER4 Light chasers could be used for Marquee signs, store signs, decorative displays, Neon or LED signs, etc....

or could be set to 2 channels and used as a simple ON/OFF flasher for 2 channel traffic warning , school zones or 1 light ON/OFF.

Replaces Mechanical sign flashers ( FMS, American lighting, etc...)
