CNC Stand Alone Ethernet Motion Controller MikroCNC Mach3 UCCNC Plasma THC For Sale

CNC Stand AloneEthernetMotionController With Windows 10 Touch screen- PC Includes MikroCnC Supports (Mach3, UCCNC, Plasma, And THC) Professional CNC control system with software Why Buy From eDealers Direct Automation?

▶ Visit Our YouTube Channel Product Images
Description

Please review the whole listing to understand the gravity of this package.

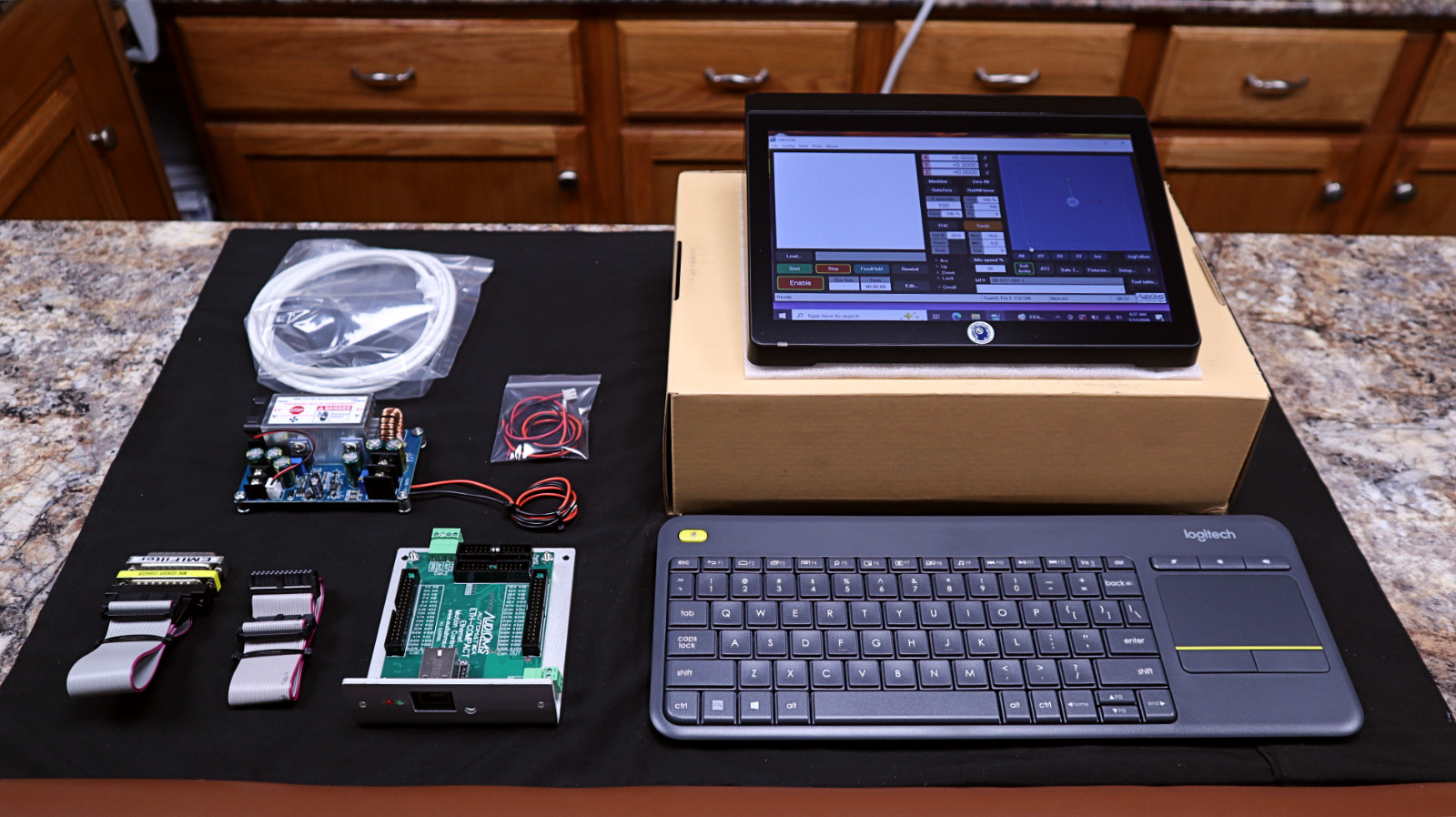

Complete CNC Motion Controller Stand Alone Ethernet Kit
Please scroll down to watch me cover an overview of the system.

MikroCNC pre-installed & configured | Mach3 & UCCNC compatible (not included)

The complete "brain" for your CNC robot including the motion controller, computer, power, and accessories, assembled, configured, and tested.

Wire in your breakout board, drive's power supply, drivers and cut. No hunting for parts, no guessing at compatibility, no locked-down features!

Why This System:

• The most complete for your robot – just add your drives, power supply, and electronics enclosure.
• MikroCNC comes fully installed and pre-configured – ready to run
• Rock-solid Ethernet connection – fast, "EMI bulletproof" no USB dropouts
• Assembled, configured, and tested before it ships
• Open & upgradeable – no paid feature unlocks, no proprietary lock-in
• Backed by a full step-by-step build video series

Software

• MikroCNC – fully installed and pre-configured on the included PC. Ready to run out of the box.
• Also compatible with Mach3 and UCCNC – use whichever platform you prefer.

Please note: Mach3 and UCCNC software and licenses are NOT included. They are available separately from their respective vendors. Only MikroCNC is installed and included with this system. What's Included

• ETH-COMPACT 32bit Ethernet motion controller – the heart of the system
• Touchscreen Stand Alone PC – compact fanless Windows 10 unit with MikroCNC installed and pre-configured
• Mini-sized wireless Logitec keyboard with built-in touchpad (no separate mouse needed)
• Regulated step-down power supply – wide 12-75V DC input to support virtually all drive/system power supplies voltages, short-circuit protected, output status LED
  • 6-32 standoffs and mounting hardware included
• 2x LPH-26 ribbon cables:
  • 11 in – LPH-26 female-to-female (both ends)
  • 12 in – LPH-26 to DB25 female, with DB25 EMI filter for clean, noise-free signal to your drives / breakout board
• 21 in silicone power leads (black & red) with JST-XH connector – ready to power a UCSB breakout board if you choose to use one
• Standard CAT7 Ethernet cable

The Control PC

• Compact fanless Windows 10 mini PC – silent, with no fan to clog with shop dust or fail
• Intel quad-core processor (up to 2.3 GHz)
• 4 GB RAM / 64 GB SSD – right-sized for dedicated CNC control
• 4K-capable integrated graphics
• Wi-Fi 5 + RS-232 (serial) + RJ45 Ethernet – full industrial connectivity
• Light and compact (about 1.7 kg) – mounts anywhere near your machine

The Motion Controller – ETH-COMPACT

An Ethernet CNC motion controller with integrated firmware that updates automatically through the control software. Fast, stable, and loaded with pro-grade capability.

Control & Motion

• Up to 6 axes (including spindle when set as step/dir)
• Max step frequency 200 kHz or 100 kHz (adjustable)
• All jogging modes + MPG / encoder jog-wheel support (hardware mode)
• Homing & referencing – single-axis and multi-axis
• Slave axes / gantry support
• Hardware limit switches, soft limits, limits override (auto / manual / external)
• Backlash compensation
• Probing (G31)
• Shuttle mode with adjustable acceleration
• Offline mode
• Lathe threading (G32, G76)

Spindle & Coolant

• Spindle PWM output, 10 Hz - 200 kHz adjustable
• Spindle index input with adjustable divider
• Spindle step/dir axis
• Spindle relays (M3 / M4 / M5) and coolant relays (M7 / M8 / M9)

Laser / Engraving

• Fast laser outputs (M10p1 / M11p1)
• Laser PWM with velocity-based power compensation (adjustable curve)
• Laser PWM gated by M10 / M11
• 8-bit gray-level laser engraving

Plasma / Torch Height Control – THC-Capable

• Two THC options: external THC controller support, plus an internal up/down regulator (1 ms response)
• Advanced internal THC: kerf detect (tip saver), arc-voltage validity gating, nominal voltage set from G-code, arc presence detection, 1 kHz voltage sampling, adjustable low-pass filter
• THC enable/disable via G-code, THC with accel/decel, anti-plunge, manual THC mode
• Add our Plasma THC kit to unlock full torch-height-control hardware for plasma cutting

I/O & Safety

• 24 TTL general-purpose digital outputs (max 32 mA)
• 24 Schmitt-trigger digital inputs (4.7 kOhm pull-ups)
• 2 analog inputs (0-5 V, 10-bit)
• E-STOP input
• Charge pump outputs (12.5 kHz / 5 kHz)
• Freely assignable functions on any input or output
• Adjustable active signal state (low/high) per I/O
• Detailed input signal debouncing
• Custom MikroCNC control screen with extra status indicators and DRO fields

Technical Specifications – ETH-COMPACT

• PC connection: Ethernet 10/100 Mbit, TCP/IP, ~1 s data buffer, auto crossover detection
• Number of axes: up to 6 (including spindle if step/dir)
• Digital outputs: 24 TTL, max 32 mA
• Digital inputs: 24 Schmitt-trigger, 4.7 kOhm pull-ups
• Max STEP frequency: 200 kHz or 100 kHz (adjustable)
• STEP pulse width: 2.5 microseconds (5 optional)
• PWM output frequency: 10 Hz - 200 kHz
• PWM duty resolution: up to 16-bit
• Index input: up to 10 kHz, pulse width 100 ns minimum
• MPG/encoder inputs: x4, up to 10k steps/sec
• Analog inputs: 2 (0-5 V, 10-bit)
• Charge pump: 2 inputs, 12.5 kHz / 5 kHz
• Controller power: 8-27 VDC (supplied by the included step-down)
• Dimensions: 91 x 115 x 28 mm

Important – Please Read Before Purchase

This is a complete control system – the brain, computer, power, and cabling. It is not a full machine kit. To finish your build you supply:

• Your stepper or servo drives and motors – connect via the standard DB25 step/dir output
• Your main motor power supply – the included step-down taps this to power the controller (accepts 12-75V DC input)
• Required: a breakout board I recommend the UCSB(JST-XH power leads are included to support it if you choose to add one)

Software: MikroCNC motion control software is installed and included. Mach3 and UCCNC are compatible but are NOT included and require separate licenses purchased from their respective vendors.

Built Right, Backed Up

Every system is assembled, configured, and tested before it ships, and supported by a complete build video series that walks you through wiring and setup from start to finish.

Shipping the system in the US is FREE and will be shipped via UPS Ground with signature due to the value involved. If you require expedited shipping, please contact me for a quote.

All my international orders are handled through 's Global Shipping Program as they offer us both the best protection against loss, and damages. Please review their policy for a shipping quote based on your specific location as they don't disclose it to me.
