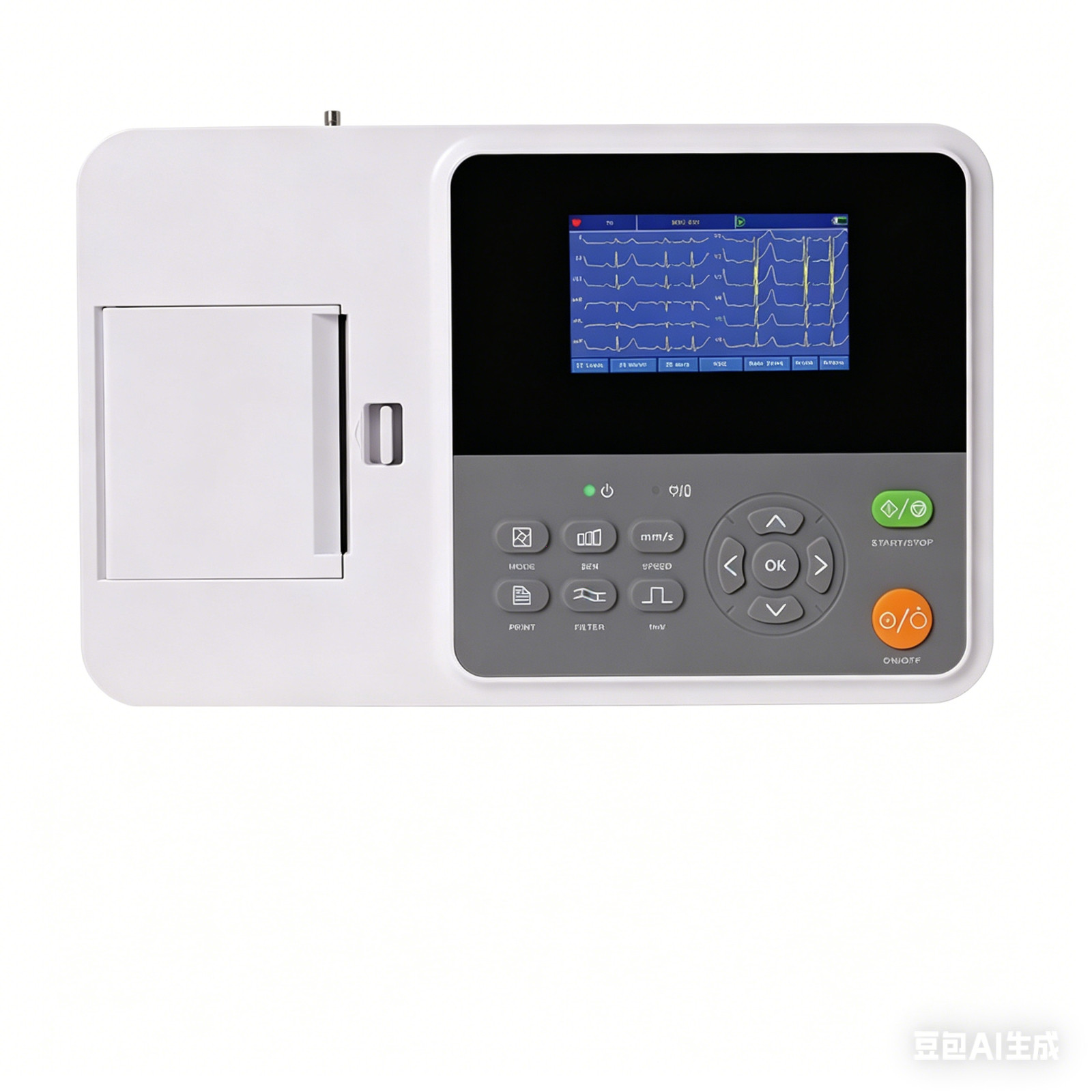

CONTEC E3 Portable 3-Channel 12-Lead ECG/EKG Machine with Printer + PC Software For Sale

E3 Electrocardiogram (ECG) Machine - Professional 12-Lead Diagnostic Device‌

‌Note:‌
This device does NOT support automatic analysis and diagnosis functions when sold to countries/regions requiring FDA certification.

The ‌E3 Electrocardiogram (ECG) Machine‌ is a high-precision diagnostic tool designed for simultaneous 12-lead ECG signal sampling and thermal printing. Ideal for clinical settings, it combines advanced filtering technology, multi-language support, and versatile recording modes to deliver clear, accurate waveforms for efficient cardiac assessment.

1. ‌High-Resolution Thermal Printing‌

   • 8 dots/mm resolution, no manual adjustments needed.
   • Supports up to 150Hz frequency response for sharp waveform output.

2. ‌12-Lead Synchronized Sampling‌

   • Captures routine 12-lead and Cabrera-lead waveforms simultaneously.
   • Enhanced signal clarity via AC/EMG/DFT/Low-pass filters.

3. ‌Multi-Mode Display & Printing‌

   • View 3/6/12-lead waveforms, sensitivity, paper speed, and filter status on one screen for comparative diagnosis.
   • Flexible print formats: Auto (1×12, 2×6, 3×4, etc.), Rhythm, or Manual mode.
   • Customizable print content: Patient info, parameters, diagnostic conclusions, histograms, and trend charts.

4. ‌Auto Measurement & Analysis‌

   • Measures HR, PR interval, QRS duration, QT/QTc intervals, P/QRS/T axes, and more.
   • Reduces workload with automated diagnostic suggestions (excluded in FDA-regulated markets).

5. ‌Multi-Language Interface‌

   • Supports Chinese, English, Turkish, Portuguese, German, Russian, Kazakh, and others.

6. ‌Long Battery Life & Portability‌

   • Built-in 7.4V/5000mAh rechargeable lithium battery.
   • Dual AC/DC power supply with over-current/voltage protection.

7. ‌Data Management & Connectivity‌

   • Stores up to 1,000 cases for review/statistics.
   • Connects to USB keyboards, barcode scanners, external printers, and storage Specifications‌
     • ‌Input Protection:‌ Floating defibrillation-proof design.
     • ‌Patient Leakage Current:‌ <10µA | ‌Input Impedance:‌ ≥100MΩ.
     • ‌Frequency Response:‌ 0.01Hz–300Hz (-3dB) | ‌CMRR:‌ >123dB.
     • ‌Sampling Precision:‌ 24-bit | ‌ECG Sampling Rate:‌ 32kHz.
     • ‌Paper Speed Options:‌ 5/6.25/10/12.5/25/50 mm/s (±5% accuracy).
     • ‌Sensitivity Settings:‌ 2.5–40 mm/mV (±5% accuracy).
     • ‌Safety Certification:‌ Class I type CF defibrillation-proof.
     • ‌Operating Environment:‌ 5°C–40°C | 25%–95% humidity (non-condensing).
     ‌Included Accessories‌
     • 1× Lead Cable
     • 1× Limb Electrode Set
     • 1× Chest Electrode Set
     • 1× Thermal Paper Roll (80mm×20m)
     • 1× Power Cord
     • 1× Ground Wire
     • 1× User Manual
     ‌Why Choose the E3 ECG Machine?‌
     • ‌Efficiency:‌ Auto/manual recording, rhythm lead selection, and case database streamline workflows.
     • ‌Accuracy:‌ Advanced filters and 24-bit sampling ensure reliable waveforms.
     • ‌Versatility:‌ Multi-language reports and global power compatibility (100V–240V AC).

     ‌Ideal for Clinics, Hospitals, and Medical Professionals!‌
     Enhance cardiac diagnostics with the E3’s precision, portability, and user-friendly design.

     ‌Disclaimer:‌ Specifications subject to change. Verify compliance with local regulations before purchase.
