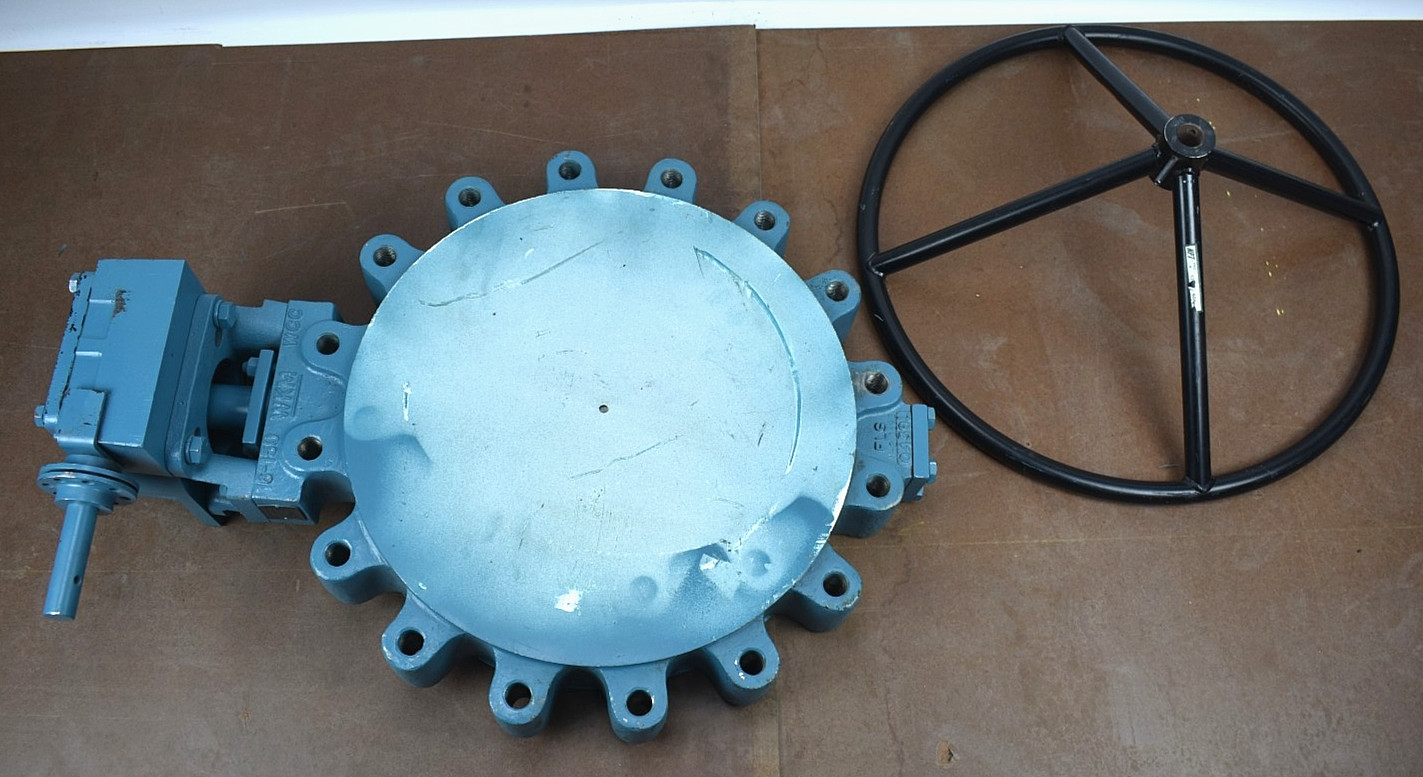

Cameron WKM Dynacentric 15" High-Performance Butterfly Valve – B5133-02-S02-11- BRAND NEW!!!
Large-format, high-performance butterfly valve engineered for demanding industrial flow control applications. Manufactured by Cameron (WKM), a globally trusted name in oil & gas, chemical processing, and heavy industrial systems.
This unit features a lug-style WCC cast carbon steel body, gear operator with handwheel, and stainless steel disc, making it ideal for high-pressure and elevated temperature service.
Key Specifications (Tag + Casting Verified)
- Manufacturer: Cameron
- Series: WKM Dynacentric
- Model: B5133-02-S02-11/LKWG
- B/M:2269647-01
- Valve Size: 16 inch
- Valve Type: High-Performance Butterfly Valve
- Body Style: Lug
- Body Material: WCC (Cast Carbon Steel)
- Pressure Class: Class 150 (casting marked “16-150”)
- Operation: Gear Operated (manual handwheel included)
- Disc Material: Stainless Steel (SS)
- Seat Material: MTFE (Modified PTFE)
- Packing: TFE
- Stem Size: 630
- Pressure Rating (MOP):
- 285 PSI @ -20°F
- 185 PSI @ 450°F
- Temperature Range: -20°F to 450°F
- Origin: USA (Oklahoma City, OK)
Performance & Application
- High-performance shutoff and throttling
- Designed for:
- Oil & gas pipelines and processing
- Chemical plants
- Steam and thermal systems
- Water treatment infrastructure
- Industrial fluid control systems
DynaCentric valves offer:
- Low torque operation
- Tight shutoff (near bubble-tight)
- Extended seat life vs concentric butterfly valves
- Reliable performance in high-temp environments
Design Features
- Offset disc design reduces seat wear and friction
- Lug body allows dead-end service capability
- Heavy-duty gear operator for controlled actuation
- Stainless disc for corrosion resistance
- MTFE seat for chemical and temperature durability
- Robust WCC body for high-strength industrial use
