DESCRIPTION

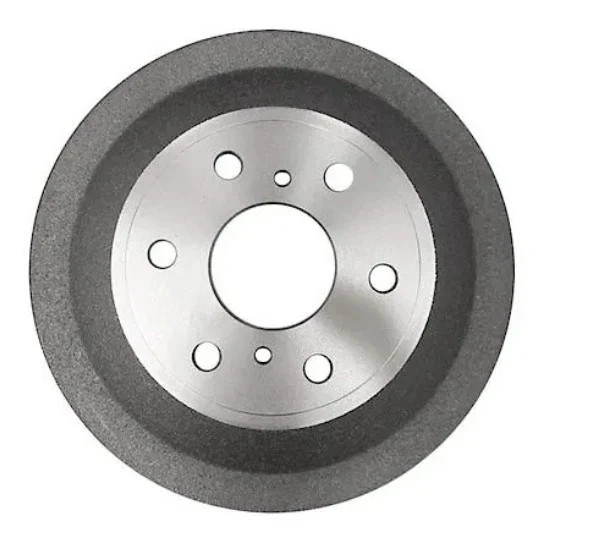

Carquest Rear Brake Drum
Part Number: YH274983
Position: / Notes2009-2013ChevroletSilverado 1500Rear – Drum Brake Applications2009-2013GMCSierra 1500Rear – Drum Brake Applications
2009 applications can vary by GVW and brake hardware configuration. Verify the original drum dimensions and brake setup before / Advance Auto Parts: YH274983
Raybestos: 9801R, 9801
Centric: 122.66045, 123.66045
DuraGo: 920150, BD920150, BD920150-01
AutoZone / Duralast: 72008, DL72008
Bendix: PDR0855
BrakeBest: 9801DGS, 9801R
Qualis: 80128, 21118
Wagner: BD180466, SB9801
Ultra Brake: 85918
Winhere: 666718
GM OE: 22874950, 25832104, 25976967
FEATURES
• Rear brake drum
• Full-cast construction
• Cast-iron construction
• 6-lug / 6-hole design
• 295 mm / 11.61\" nominal inside diameter
• 296.5 mm / 11.67\" maximum discard diameter
• 335.4 mm / 13.20\" outside diameter
• 96.5 mm / 3.80\" overall height
• 76.2 mm / 3.00\" brake surface width
• 78.6 mm / 3.09\" center hole diameter
• 139.7 mm / 5.50\" bolt circle diameter
• No ABS tone ring included
• Designed to meet or exceed OE specifications
