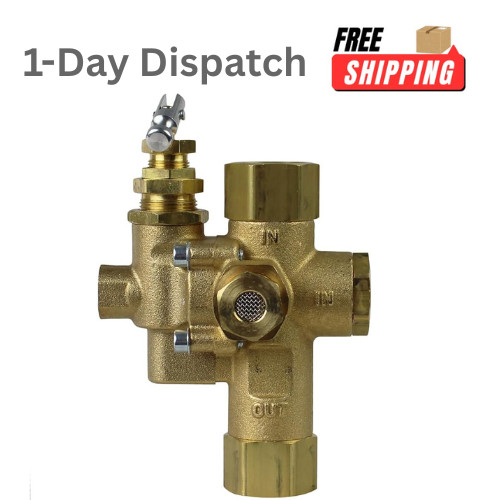

Conrader Gas Air Compressor Unloader Valve Pilot Check 140-175 PSI For Sale

FULL DESCRIPTION
This Conrader unloader valve pilot check valve combination is designed for gas air compressors. It features all-brass construction built for the rigors of outdoor use. The valve has a 30 CFM flow rate, and PSI is pre-set from the factory (140-175 PSI) and can be adjusted on the pilot valve. Pressure differential is 10 to 50 PSI, with an operating temperature range of -65°F to 400°F max. A muffler is included. This unit is designed to work in conjunction with a throttle control mechanism (not included) that connects from the side throttle control port on this valve to the throttle arm on your engine. Please note: 1/2\" NPT measures 0.850\" outside thread diameter in inches.

KEY FEATURES
• Gas air compressor unloader valve pilot check valve combination
• All-brass construction — built for outdoor gas compressors
• 30 CFM flow rate — PSI pre-set 140-175, adjustable on pilot valve
• Pressure differential 10 to 50 PSI — operating temp -65°F to 400°F
• Muffler included — 1/2\" NPT inlet and outlet
• Works with throttle control mechanism (not included)
• Side throttle control port connects to engine throttle arm
• 1/2\" NPT measures 0.850\" outside thread diameter

ITEM SPECIFICATIONS
• Brand: Conrader
• Type: Gas Air Compressor Unloader Valve — Pilot Check Valve Combination
• Material: Brass
• Colour: Brass
• Inlet/Outlet Size: 1/2\" NPT
• Maximum Operating Pressure: 175 PSI
• Flow Rate: 30 CFM
• Pressure Differential: 10 to 50 PSI
• Operating Temperature: -65°F to 400°F
• Pre-set Pressure: 140-175 PSI (Adjustable on Pilot Valve)
• Number of Ports: 2
• Muffler: Included
• Throttle Control: Works with separate mechanism (not included)
• Item Weight: 1.5 Pounds
• Dimensions: 4 x 4 x 2 Inches
