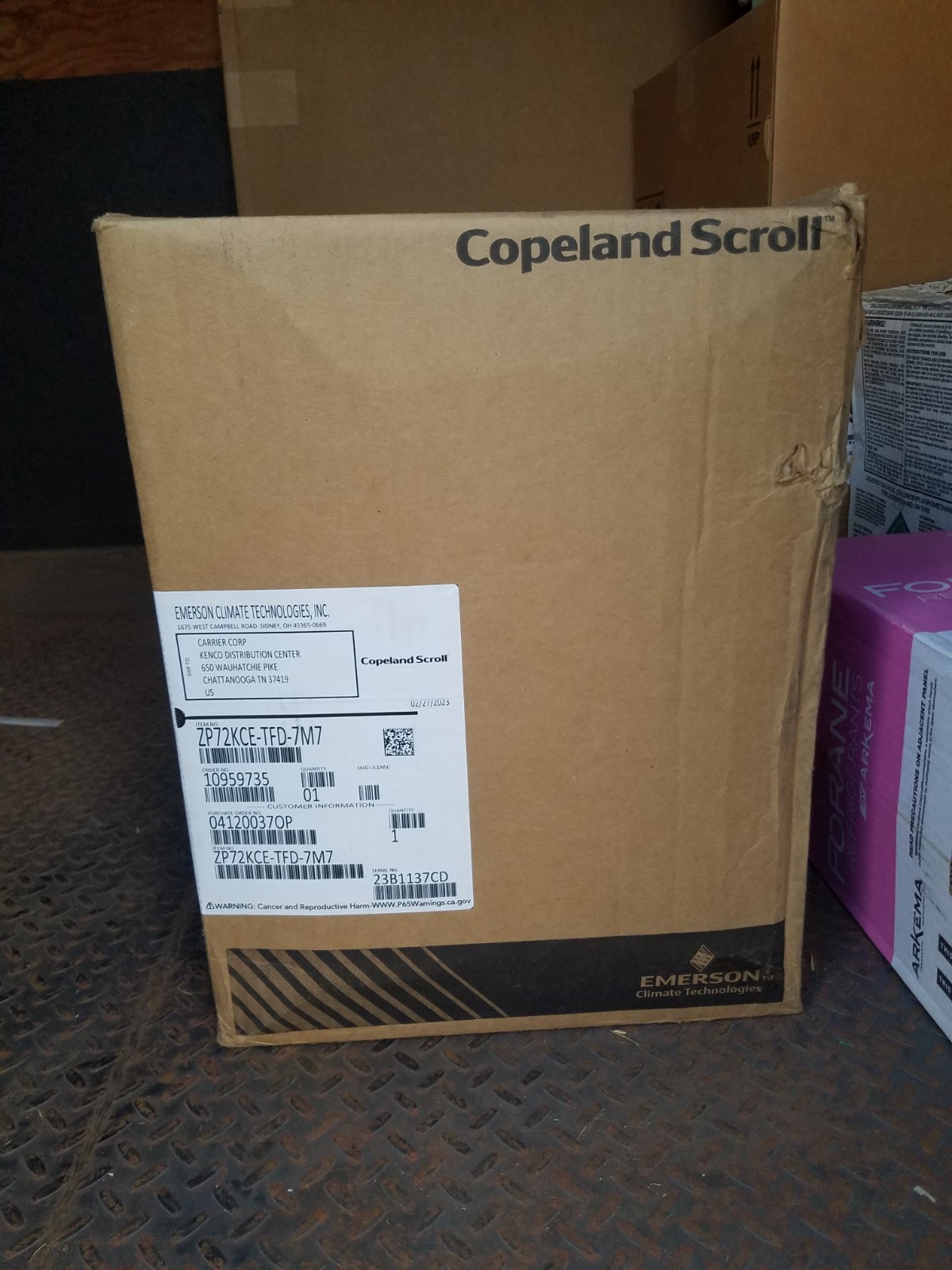

These compressors were ordered for a job and never used, They boxes have not even been opened.DescriptionZP72KCE-TFD-7M7
Z= Scroll Compressor
P= A/C Duty - R410A
72K= 72000 BTU
C= Model Series
E= POE Oil - AK/DA or 3MA
T= 3 Phase
F= Internal Inherent Protection - One protector, use with contactor
D= 380/420-3-50 / 460-3-60
7M7= Bill of Material Product Variation
Standard FeaturesHigh efficiency – EER 11.0 plusLow Noise & Vibration levelsInherent motor protectionCentrifugal oil pumpFor Heat Pump & Air Conditioning dutyPOE OilReplacement forP021-7272-COMPRESSORDocumentsThere are no documents ConnectionStubDischarge ID1/2"HP6Line Voltage (60Hz)480VMounting ArrangementARefrigerantR410ARefrigerant Oil TypePolyol Ester (POE)Suction ConnectionStubSuction ID7/8"Suction Line Size7/8"Variety TypeScrollApplicationA/C, HPCompressor Capacity72000 btuFrequency50Hz, 60HzHeight17.9 inLength9.69 inLiquid Line Size1/2 inLRA75.0Max RLA12.5Max Watts5700Motor Phase3Oil Capacity0 mlOil Recharge3.5 pintsRun CapacitorN/AShell Height17.9 inShipping Height20 inShipping Length15 inShipping Point37406Shipping Weight93 lbShipping Width13 lbWidth9.69 in
