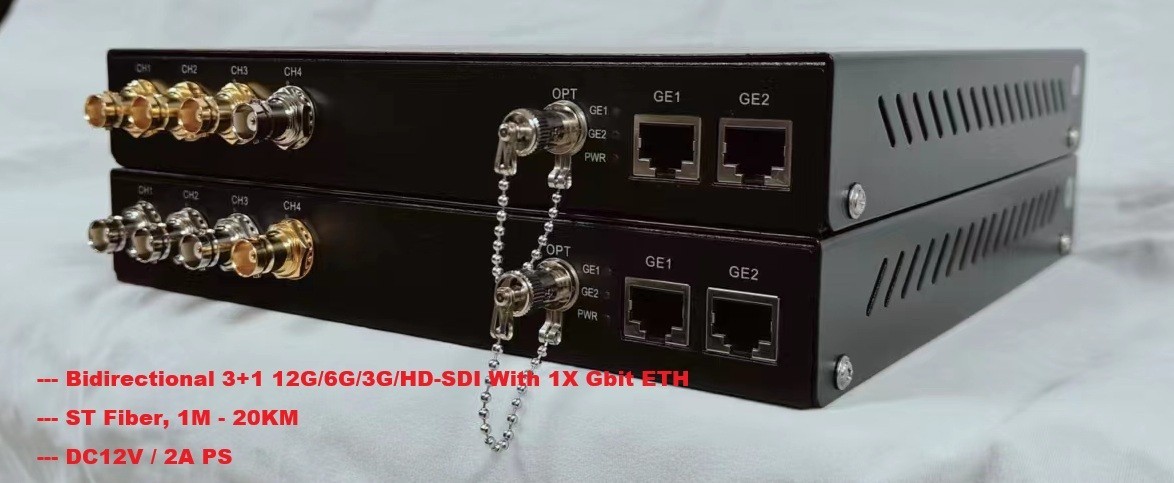

Custom 12G -SDI Units, Please Contact Us For Sale

The unit price 100USD/set is not true, please do not place order on it. This just let you know we are able to make 1RU Custom 3G-SDI and 12G-SDI Configure for you. Any question, please do not hesitate to let me know. Thank you!

1. Description

This 8X 12G/6G/3G/HD/SD SDI TX&RXBOX are fiber opticserial digital video transmission units that offer the industry\'s broadestrange of digital rates 12Gbps bandwidth while maintaining the signal qualitythat broadcasters demand. The unit support 3X Discrete 1Gbps POE+ Ethernet Ports.

The transmitteraccepts a 75ohm BNC input and converts it into an optical stream via a standardST connector.

The transmitterBNC include equalization and reclocker for long lengths of coaxial cable, soyou can use them at nearly any point in yourSDI chain.

The receiver unitreconverts the uncompressed signal back to BNC output.

The receiverinclude reclocker and cable driver for long lengths of optical link, 10KM@12Gbps MAX. fiber transfer, so you can use themat nearly any point in yourSDI chain.

Both thetransmitter and receiver modules include LED indicators to display Power On,SDI signal presence. The units use Dual AC100-120VPSDefault, backup each other.

2. Features

• Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards
• Supports 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.97 Gbps, 5.94Gbps, and 11.88Gbps Serial Data Rate Operation; This includes the f/1.001 rates
• Supports DVB-ASI at 270 Mbps
• Input Cable Equalization 12G: 60m, 6G：90m, 3G:130m, HD-SDI:150m SD-SDI:300m/Belden 1694A
• Output Cable Reach12G: 60m, 6G：90m, 3G:130m, HD-SDI:150m SD-SDI:300m/Belden 1694A
• Supports embedded audio
• Support SDI IN and OUT Video Resolutions as followed:

SD: 525i/59.94Hz; 625i &50Hz

HD: 720p/23.98Hz &24Hz &25Hz &29.97Hz &30Hz &50Hz&59.94Hz &60Hz;

1080p/23.98Hz &24Hz &25Hz &29.97Hz &30Hz

1080sf/720p&23.98Hz &24Hz &25Hz &29.97Hz &30Hz

1080i/50Hz &59.94Hz&60Hz

1035i/50Hz &59.94Hz&60Hz

3G: 1080p/50Hz&&59.94Hz &60Hz;

6G: 4096x2160/30Hz,4096x2160/29.97Hz, 3840x2160/30Hz, 3840x2160/29.97Hz

12G: 3840x2160/59.94Hz

• 75ohm BNC input and output port
• Support 3X Discrete 1Gbps PoE+ Ethernet Ports, andauto sensing 10M/100M/1000Mbps bitrate
• Each PoE Power Supply Capacity 30W, PoE+
• STFiber Receptacle
• Up to 10km distance (Singlemode Fiber default)
• Operating Temp.:-20 to 50 Degree Celsius
• Dual AC100-120V Power Supply

3. Specifications

　DescriptionParameterTest ConditionsBNC



SMPTE StandardSupportOmniTekBNC75 OHMAgilent SystemDate Rate270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.97 Gbps, 5.94Gbps, 11.88GbpsOmniTekStandartSMPTE 424M, SMPTE 292M, and SMPTE 259M (C) ,DVB-ASIOmniTekCable Equalization12G:60m, 6G: 90, 3G:130m, HD-SDI:150m SD-SDI:300mBelden 1694ACable Out Reach12G:60m, 6G: 90, 3G:130m, HD-SDI:150m SD-SDI:300mBelden 1694AJitter<0.2UI12Gbps, 100KHZEye time30-800psSD,HD,3G ,6G, 12G Signal
Fiber

SFP Bandwidth12GbpsAgilent SystemSFP Support8channelCWDM Band 1270-1610nm　Fiber ReceptacleST Port　Fiber Distance10km DefaultSinglemode/G652DMaxmium Fiber Distance80kmSinglemode/G652D/Long Wave BandFiber TypeSinglemode　Others



Input PowerDual AC100-120V　Power Consumption50WNot including POE POWERPower Surge ProtectYES　Operating Temp.-20to 50Degree Celsius　Storage Temp.-40 to 85Degree Celsius　Operating Humidity20-80%　Weight5KG Each Box　DimmensionL/W/H =483mm*210mm*45mm　Warranty3 Years Free Warranty　

4. Package List

• 1U RACK 8X 12G SDI Single Way Transmitter*1PCS

• 1U RACK 8X 12G SDI Single Way Receiver*1PCS

• Side Ear *4PCS

Notes:

1. Dual AC100-120V Power Supply Default; Option Dual AC200-240V PS

2. Support Custom Configure: offerirectional 4+4, 6+2 and 5+3

5. Installation

1. Connect the provided AC or DC power supplies tothe power socket of the transmitter and receiver

2. Connect SDI cable between the SDI videosource and the transmitter BNC input

3. Connect SDI cable between the receiver BNCoutput and the SDI video monitor or SDI DVR

4. ConnectST fiber between the transmitterand the receiverST Receptacle

6. Notes

A. No video output and some one of thethree LEDs not lighted

• Please check the power supply if work

• please check the video source if work

• please check the coaxial cable BNCs if alltightened well

• please check theST fiber if inserted well

B. There is video display, but video flash

• please check the video source format ifright

• please check the coaxial cable BNCs if alltightened well

• please check theST fiber if inserted well

• this issue happens often when theST endface is dirty

• For long range application, please checkthe fiber transfer link-budget, if it is too long, the received optical signalis very weak, and may be out of receiver reclocker capacity and fail to recoverthe useful signals

7. Warranty

Thank you very much for using our products

The warranty time is threeyears and life-long maintenance. During this period, any belongs to undernormal usage circumstance cause because of the product quality’s problem ofbreakdown, our company will be responsible for giving free maintain

Free maintain won’t be given under thefollowing circumstance:

• The malfunction and damaged caused byincorrect use, the unauthorized repairs and alteration

• The damage caused by fire, flood, abnormalvoltage, other natural disasters and secondary product damage

• The product malfunction caused by not inaccordance with the user manual operation

• The malfunction and damaged caused by theother barriers(man-made factors or external device)

8. Shipment

We will use the fastest DHL or UPS Express Service, 3-6 days delivery to US/Canada/Australia/Europe.
