Cutler-Hammer FD2200 200A 2-Pole 600V Industrial Circuit Breaker FD 35k For Sale

Description

The Cutler-Hammer FD2200 is a 200-Amp, 2-Pole, 600VAC industrial molded case circuit breaker featuring thermal magnetic trip technology and a 35,000A interrupting capacity at 480VAC. This FD-frame breaker is rated for single-phase AC circuits and is made in the USA. It has been removed from service and shows typical cosmetic wear but remains mechanically and electrically sound.

Features & (Eaton)Model NumberFD2200Style Number6639C81G02Product TypeIndustrial Molded Case Circuit BreakerFrameFD (FD 35k)Amperage200ANumber of Poles2-PoleVoltage Rating600 VACInterrupting Capacity35,000A IC at 480 VACInterrupting Capacity at 240V65 kA RMS Sym.Interrupting Capacity at 480V35 kA RMS Sym.Interrupting Capacity at 600V18 kA RMS Sym.Trip TypeThermal MagneticWire Size (TA225FD)4-4/0 AWG/MCM (CU Only), Torque 120 Lb-InWire Size (TA225FD1)6-300 AWG/MCM (CU/AL), Torque 275 Lb-InFrequency50/60 HzTemperature Rating40 degrees CStandardsIEC 157-1, UL ListedCountry of OriginMade in U.S.A.ColorGray / BlackWhat\'s Included

• 1x Cutler-Hammer FD2200 2-Pole 200A 600V Circuit Breaker

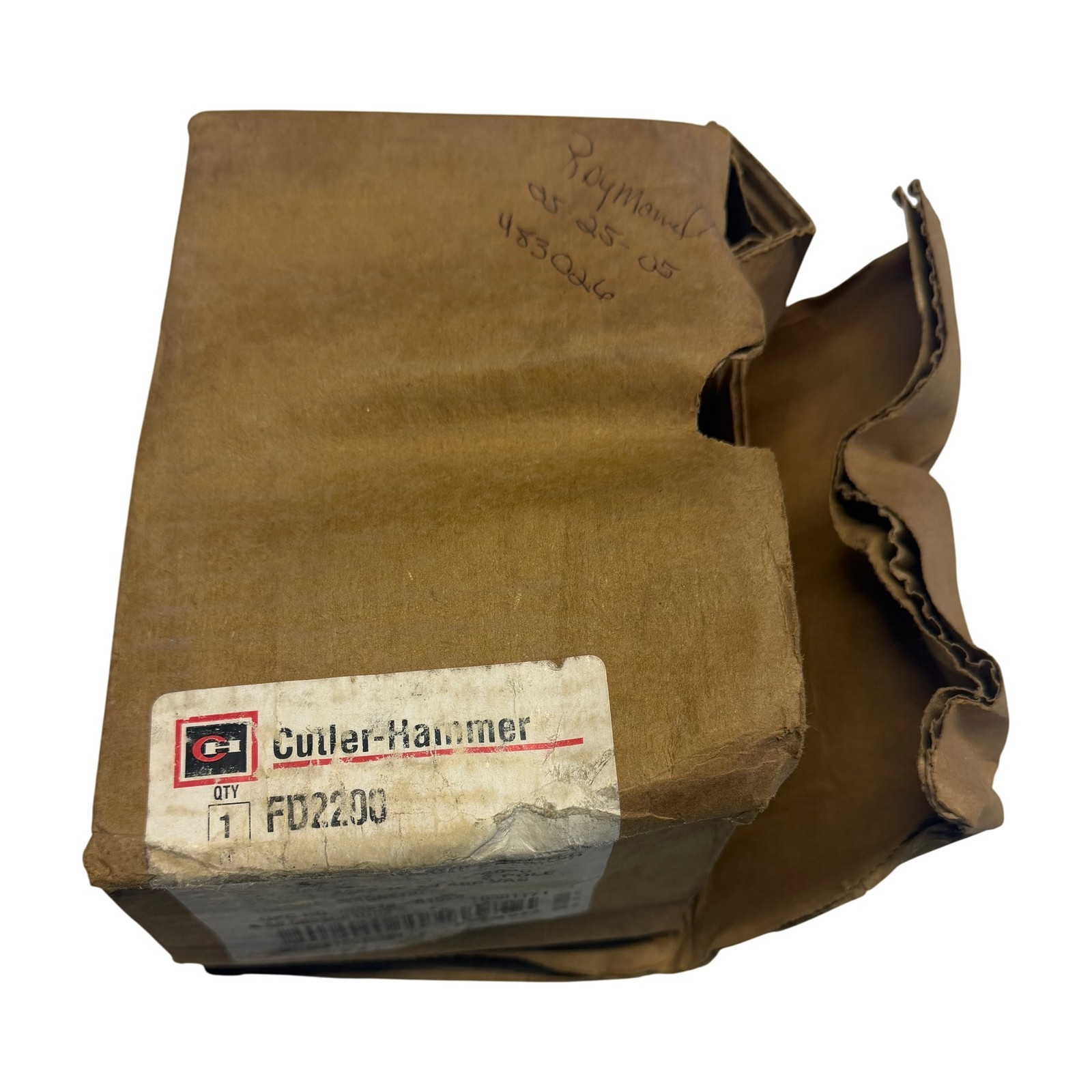

• Original box with Cutler-Hammer and Eaton FD-frame panelboards and motor control centers. Suitable for use on single-phase AC circuits. Refer to Eaton/Cutler-Hammer FD-frame compatibility documentation to confirm fit for your specific panel application.
