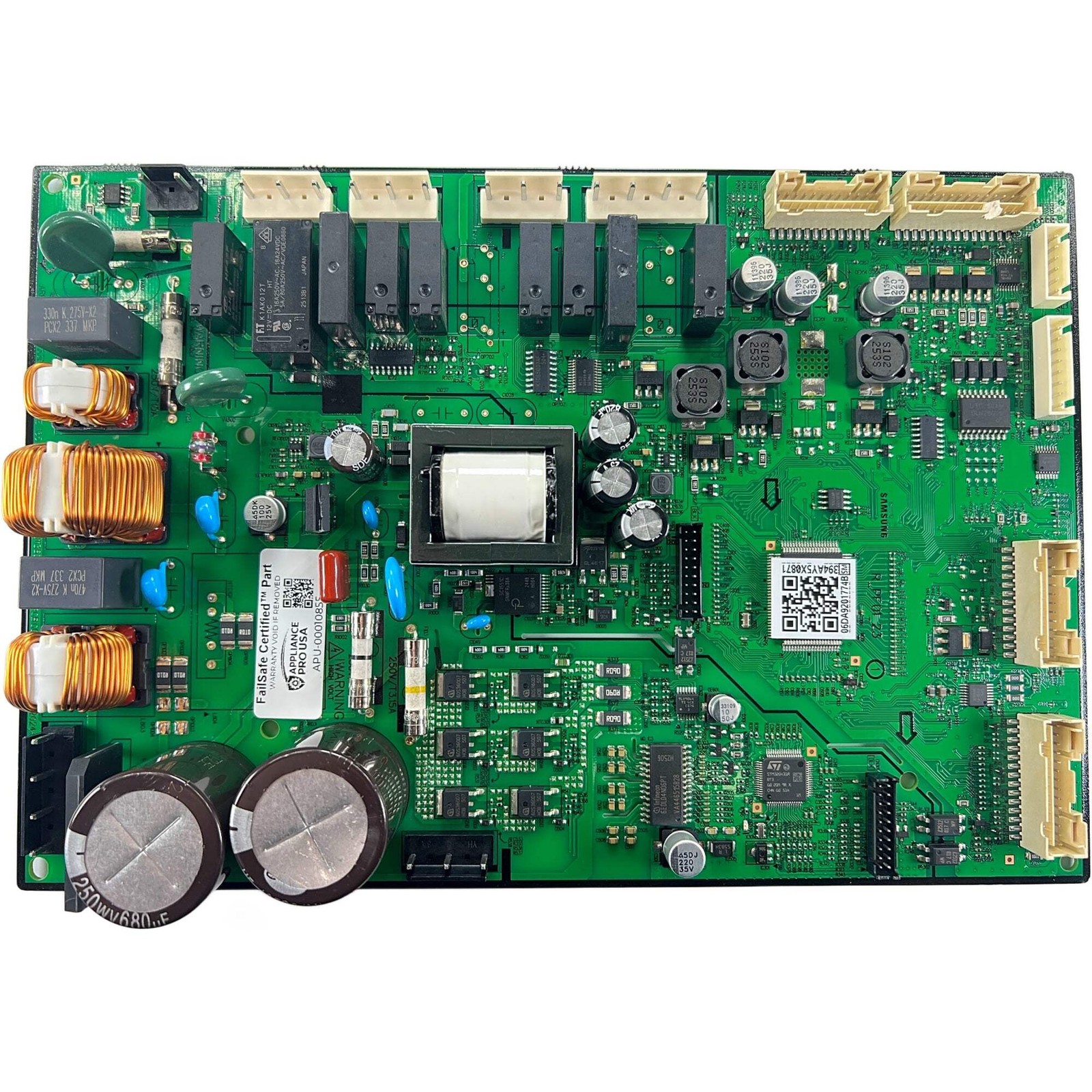

DA92-01774B SAMSUNG OEM Refrigerator Main Control Board Replacement For Sale

DA92-01774B SAMSUNG OEM Refrigerator Main Control Board Replacement Appliance Pro USA Genuine OEM Control Boards 🛡 1-Year Warranty ⚡ Same-Day Shipping ✅ FailSafe Certified™ ↩ 30-Day Returns DA92-01774B SAMSUNG OEM Refrigerator Main Control Board Replacement 🛡 Genuine OEM ⚙ FailSafe Certified™ 🏆 1-Year Warranty ⚡ Ships Same Day What Is the DA92-01774B Samsung Refrigerator Main Control Board Replacement?

The DA92-01774B is a genuine Samsung main control board for Samsung refrigerators, mounted either behind the rear lower access panel near the compressor compartment or behind an interior panel in the fresh-food section, depending on the model line. This replacement control board manages compressor cycling, defrost timing, temperature regulation, and communication between the sensors and the display panel. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.

What Does the DA92-01774B Fix on a Samsung Refrigerator?

This board is typically the fix when you see one or more of the following:

• Refrigerator not cooling or cooling intermittently
• Freezer section works but fridge side does not (or vice versa)
• Display panel unresponsive, blank, or showing error codes
• Refrigerator runs constantly or compressor won\'t start
• Ice maker or dispenser not functioning due to board fault
• Refrigerator completely dead / no power to controls

These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you\'ve ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we\'re happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.

How Do I Know If This Is the Right Board for My Refrigerator?

Before you order, find the sticker on the board itself, not just the model number on the fridge\'s door frame. Unplug the unit, pull it away from the wall, and open the rear access cover or the interior control panel to expose the board. If the number printed on that sticker reads DA92-01774B, it matches this listing. Your Samsung refrigerator part number is on the sticker on the original board - look for the DA41-, DA92-, or DA94- prefix.

Not sure? Send us a photo of your board and its sticker before you order and we\'ll verify it for free - same business day.

Compatible Refrigerator Models

This board is ordered by part number, not by appliance model. Send us your full model number and a photo of your board\'s sticker and we will confirm fitment before you buy - same business day.

This model list is for reference only. Samsung may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.

Genuine OEM - FailSafe Certified Reconditioned

Every DA92-01774B board from Appliance Pro USA is a genuine OEM Samsung board restored to reliable working condition through the FailSafe Precision Protocol, our 4-step recertification process built around what actually fails on this board:

• Failure Pattern Analysis - We\'ve mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
• Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
• Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don\'t ship.
• Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.

Key Features

• Genuine OEM Samsung main control board - not an aftermarket board
• Handles compressor control, defrost timing, and temperature regulation
• Direct fit replacement when the sticker number matches your original board
• Minor cosmetic wear may be present due to prior installation - it does not affect performance

Board Type and Function

The main control board is the brain of the refrigerator, reading input from the temperature sensors and deciding when to cycle the compressor and fans. It also drives the defrost heater on schedule and passes information to the display panel so you can set temperatures and see error codes. When this board fails, the fridge can lose cooling on one or both sides, run the compressor nonstop, or go completely dead with no response from the controls.

Common Samsung Refrigerator Error Codes

If your Samsung refrigerator is displaying an error code, the list below describes what it typically indicates. These are general Samsung codes and can vary by your exact model, so use this as a general guide. Codes labeled Board Related are the ones most directly associated with main control board failure. Always confirm the exact meaning in your model\'s owner\'s manual or service guide before ordering any part.

• 41E / 41C / PC ER - Board Related - Communication failure between main control board and display panel
• 88 88 - Board Related - Control board communication loss - not demo mode. Reset first; if it returns, board diagnosis needed
• 83E - Board Related - Compressor abnormal current - board-managed compressor circuit fault
• 85E / 85C - Board Related - Low voltage error detected by main control board
• 84C / 84E - Compressor rotor locked - most severe Samsung error. Requires immediate professional service
• 1E / SE - Freezer temperature sensor failure
• 2E - Fresh food compartment temperature sensor failure
• 4E - Freezer defrost sensor failure
• 5E - Defrost function error / defrost sensor failure
• 8E - Ice maker sensor failure
• 21E - Freezer evaporator fan not running
• 22E - Fresh food evaporator fan not running
• 23E - Condenser fan failure
• OF OF - Demo mode active - cooling fully disabled. Not an error code

This list is general reference material. Error code definitions vary by Samsung model series. Always confirm the exact meaning in your refrigerator\'s owner\'s manual or service guide before purchasing any part.

How to Install a Samsung Refrigerator Main Control Board

Start by unplugging the refrigerator and pulling it out from the wall for clearance. Remove the rear lower access panel or the interior control panel cover, depending on where your model houses the board. Take a photo of the wire harness connections before you unplug anything, it makes reconnecting the new board straightforward. Disconnect the harnesses from the old board, transfer it out, and seat the new board in the same orientation, using an anti-static wrist strap while handling it. Most people finish this install in under 30 minutes with basic hand tools. Once it\'s back together and powered up, give the refrigerator a few hours to stabilize before you judge whether the repair worked.

Shipping

Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.

Warranty

Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we\'ll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA\'s discretion. Boards that have been tampered with, or with the verification seal (hologram or tamper-evident sticker) removed or damaged, are not eligible for warranty coverage. Damage causéd by improper installation, electrical surges, or physical damage is not covered.

Returns

Returns are accepted within 30 days of delivery. Boards that are unopened and uninstalled, in original condition with the verification seal (hologram or tamper-evident sticker) intact, qualify for a full refund. If the board has been opened or installed, contact us before sending it back with a photo of the board you received, the reason for the return, and a photo of your original board\'s part-number label so we can verify fitment and approve the return. Boards returned uséd, altered, damaged, or with the verification seal missing may receive a partial refund in line with our return policy. Exchanges for the correct part are always available.

Not sure it\'s the board? Before you order, and before you return, contact us. We offer free troubleshooting help and can usually tell from a photo of your board and its symptoms whether this is the right part. Only a technician can fully diagnose your appliance.
