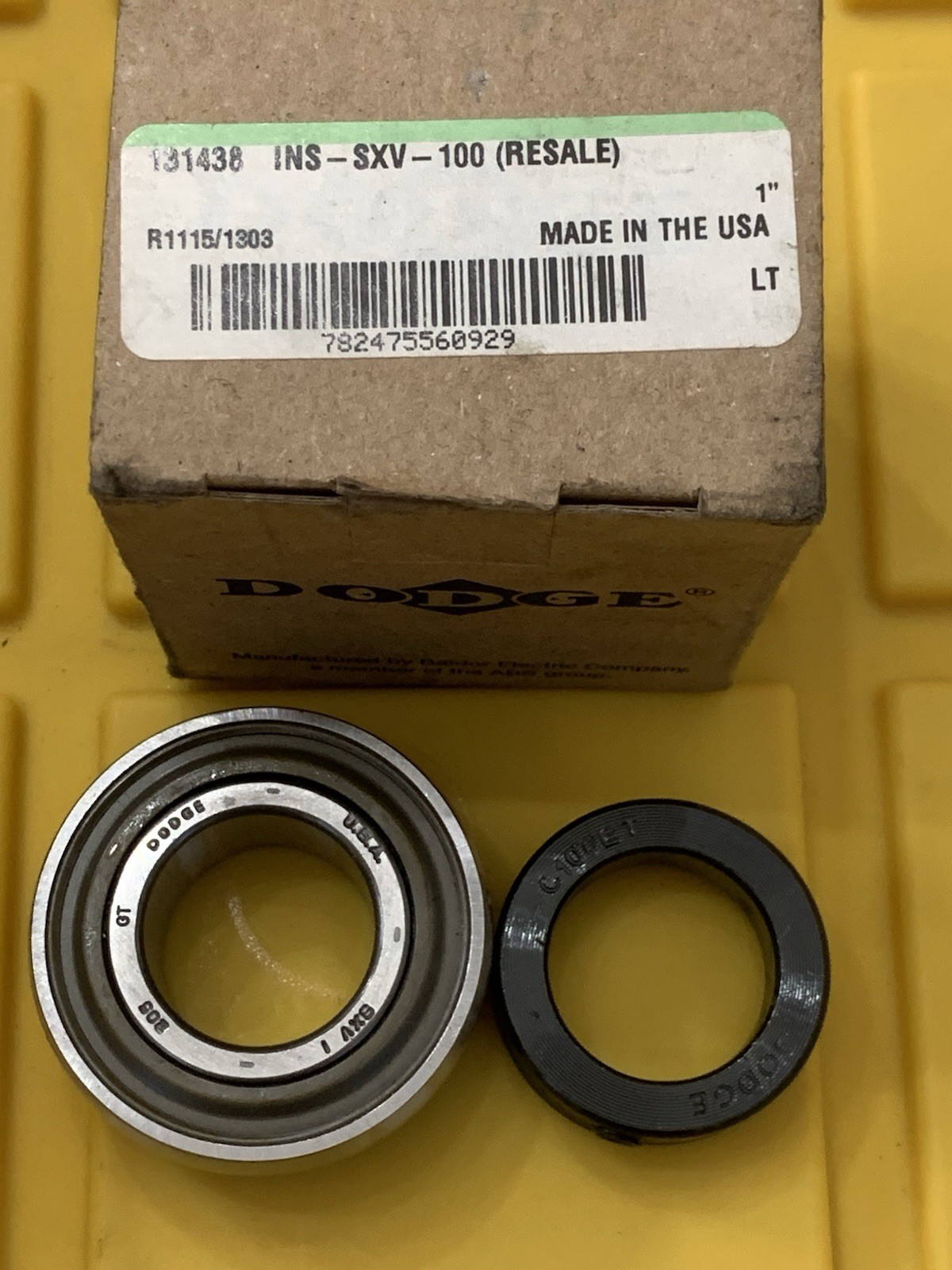

DODGE INS-SXV-100 (131438)- INSERT BEARING W/ECCENTRIC LOCKING COLLAR, 1" BORE
This is an industrial-grade, intermediate-duty replacement insert bearing used in power transmission and motion control machinery. Manufactured by Dodge in the United States.
Key Technical Specifications
Bore Diameter: 1 inch (25.4 mm)
Locking Mechanism: Eccentric collar locking system
Series Size: 205 Series
Load Capacities: 3,146 lbs Dynamic / 1,769 lbs Static
Maximum Rotation Speed: Up to 7,500 RPM
Lubrication: Relubricatable, pre-grease with Unirex N2
Seal Type: DualGuard seals with external flingers to protect against dirt and debris. •••Rubberized / elastomer single-lip contact seals (DualGuard / Proguard system) equipped with a steel flinger for added physical protection against debris.
Several distinct materials optimized for industrial wear resistance and contaminant protection:
•••Inner & Outer Rings: Precision-hardened bearing steel. The inner ring is specifically engineered to resist cracking, breaking, and shock loads.
•••Rolling Elements (Balls): Grade 10 steel balls designed to minimize vibration and promote quiet operations.
•••Locking Collar: Carbon steel eccentric self-locking collar secured with a single setscrew.
•••Internal Cage (Retainer): Fiberglass-reinforced nylon / polymer (Dodge's patented Maxlife cage design) which helps maintain grease pockets around the balls to prevent grease washout.
![DODGE INS-SXV-100 (131438)- INSERT BEARING W/ECCENTRIC LOCKING COLLAR, 1\](img-large/g/naoAAeSw7RNqlhU-/s-l1600/DODGE-INS-SXV-100-131438-INSERT-BEARING-W-ECCENTRI.jpg "DODGE INS-SXV-100 (131438)- INSERT BEARING W/ECCENTRIC LOCKING COLLAR, 1\")
