Product Description

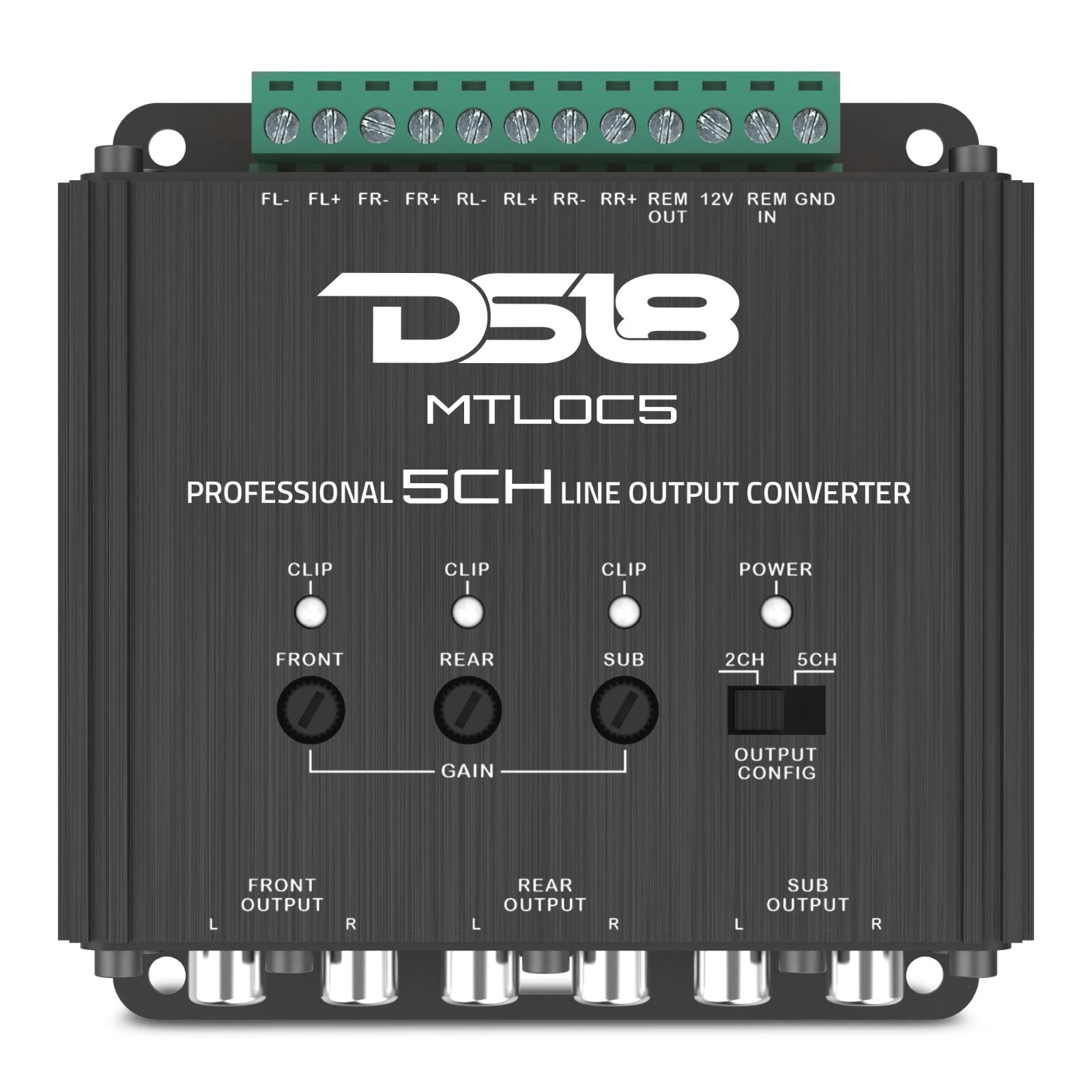

The MTLOC5 supports 2 or 5 channel factory input configurations, converting speaker-level outputs into clean RCA signals for multi-channel amplifier setups without fault codes.
Smart Auto Power
Audio sensing, DC offset, and remote trigger auto turn-on provide effortless amp activation for smooth system operation.
Durable, Compact Design
Housed in rugged aluminum with surface mount tech, the MTLOC5 protects against heat and noise while fitting easily into confined spaces.
High Fidelity Audio
Operating from 10Hz to 20kHz with minimal distortion, the MTLOC5 ensures your music sounds as intended.
Key Features
- 5-Channel High-to-Low Conversion
- 2 / 5 Channel Input Configurations
- Auto Turn-On (Audio / DC / Remote)
- Rugged Aluminum Housing & Noise Rejection
- 10Hz–20kHz Frequency Range (<0.01% Speaker Level Input: Selectable 20 / 40V (100 / 400 W RMS)
- Maximum Preamp Output: Up to 11V
- Nominal Conversion Ratio: 4:1
- Frequency Response: 10Hz - 20kHz
- Total Harmonic Distortion: 0.01%
- Signal To Noise Ratio: >110dB
- Input Impedance: Selectable 20 / 60 / 20k ohms
- Output Impedance: 100 ohms
- Power Draw: 130mA
- Recommended Fuse Rating: 1A
