- based in Miami, FL. With a \"Never-Stop-Innovating\" attitude, we create the

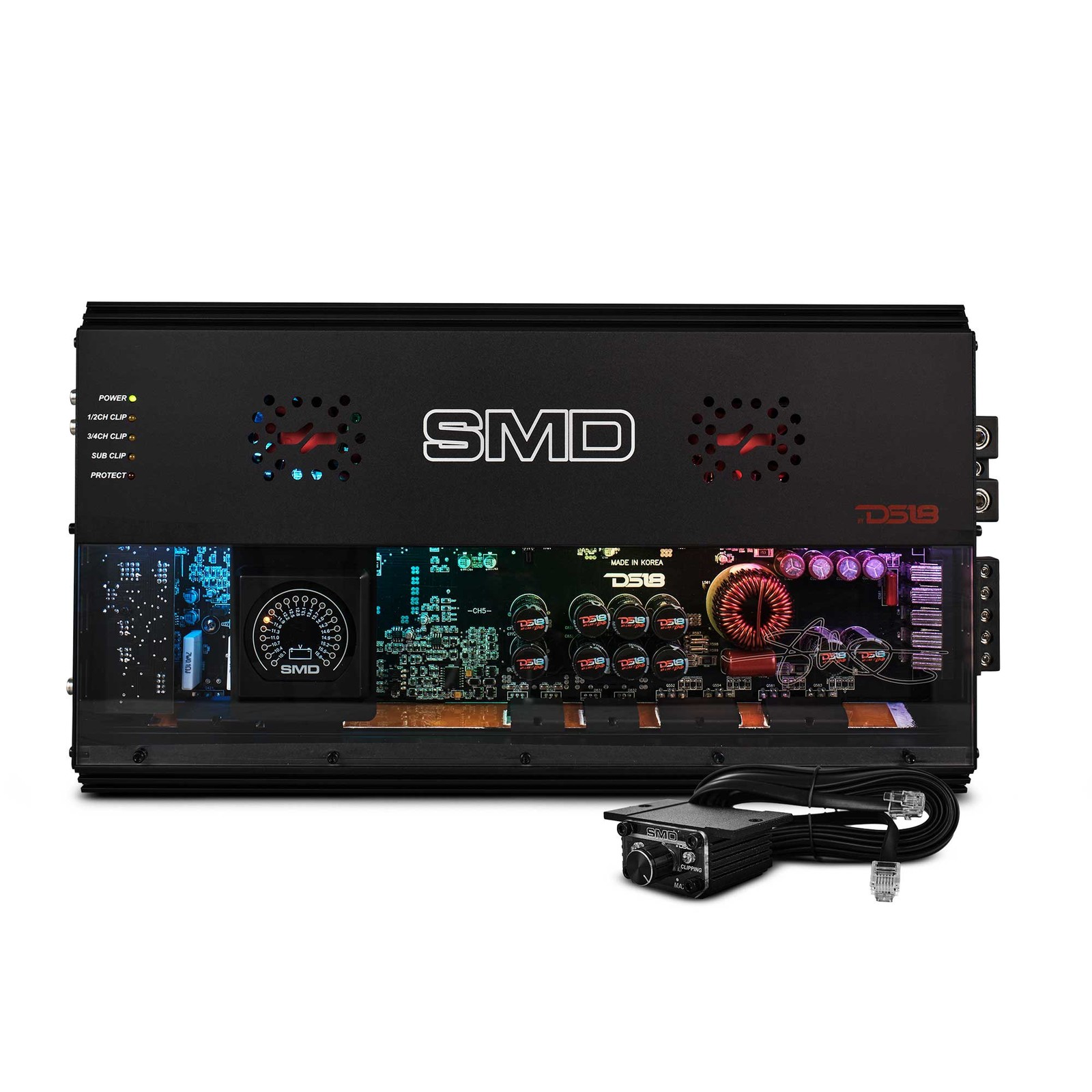

most state of the art products in the market. shop all items DS18 SMD 5-Channel Amplifier Class AB with VM-1 Voltmeter & Digital LED DS18 SMD 5-Channel Amplifier Class AB with VM-1 Voltmeter & Digital LED Lights Item Description Get full system power in one sleek package with the DS18 SMD-2800.5. This 5-channel beast delivers 250W RMS x 4 channels @ 2Ω plus up to 1800W RMS @ 1Ω on the sub channel, giving you everything you need to drive mids, highs, and subwoofers with precision and authority.
Built on a heavy-duty Korean board, this amp combines Class AB for the full-range channels and Digital power for the sub channel—efficiency meets fidelity. Premium features include Tiffany RCA connectors, metal adjustment knobs, and a VM-1 voltmeter built right in. Style is covered too, with a front acrylic window, RGB lighting, and IR remote for custom LED control. With advanced protection circuits, integrated cooling fan, and strap-mode linking, the SMD-2800.5 is built for power, flexibility, and nonstop performance.
- 5 Channel Stereo Full Range & Subwoofer Monoblock
- Exclusive SMD Design ~ Class AB & D(SUB)
- 1 - 4 Ohm Stable ~4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D
- VM-1 Voltmeter ~ Fans ~ Input Selector
- Acrylic Window ~ Digital LED Lighting w/ Remote
- Bass Knob ~ LED Indicators ~ Made in KoreaPower OutputRMS @ 4Ω: 180W x 4 + 700W (Sub)
RMS @ 2Ω: 250W x 4 + 1100W (Sub)
RMS @ 1Ω: 1800W (Sub)
RMS @ 4Ω (Bridged): 500W x 2 (CH1–CH4)
Audio PerformanceFrequency Response: 10Hz – 24KHz (CH1–CH4) / 35Hz – 250Hz (Sub)
Signal-to-Noise Ratio: >98dB
Efficiency @ 4Ω: >60% (4CH) / >82% (Sub)
Damping Factor: 250
Input Impedance: 22KΩ
Channel Separation: >50dB
Total Harmonic Distortion (THD): 0.10%
Low Level Input Range: 200mV – 6V
High Level Input: No
Crossover Modes: HPF / FULL / LPF
Crossover Range: 50Hz – 2KHz
Bass Boost: 0 – 9dB
Bass Boost Frequency: 30Hz – 60Hz
Phase Control: 0° – 180°
Operational Voltage: 8.5V – 16.5V
FeaturesAmplifier Class: Analog AB (CH1–CH4) + Digital (Sub Channel)
Amplifier Type: Stereo Full-Range + Subwoofer
Channels: 5
Minimum Impedance: 2Ω Stereo / 4Ω Bridge + 1Ω (Sub)
LED Indicators: Power / Protection / Clip
Power Input Terminal: 0 AWG
Recommended Fuse Size (not included): 300A
Cooling Fan: Yes
Protection Circuits: Thermal / Overload / DC Output / Short Circuit / Voltage Input / Clipping
Body Finish: Black
Selectable Input Mode: Yes (4 / 5 channel)
Metal Adjustment Knobs (with click position): Yes
Professional Tiffany RCA Connectors: Yes
Remote Level Knob (with Clip Indicator): Yes – Metal Case
Board Design: Heavy Duty Korean Board
Circuit Design: High-Power Class AB + Digital Hybrid
Exclusive SMD Design with VM-1 Voltmeter: Yes
Front Acrylic Window with Digital RGB Lighting: Yes
IR Remote Control for LED Patterns & Colors: Yes
MeasurementsOverall Length: 18.2\" / 462mm
Overall Width: 9.15\" / 232mm
Overall Height: 3\" / 76mm
Heatsink Length: 16.5\" / 420mm
Weight (Gross Single Unit): 13 lb / 5.89 kg - About Us
