DS18 NXL-X1200.8D 8-Channel Waterproof Marine Amplifier 8x220W RMS 2800W Peak For Sale

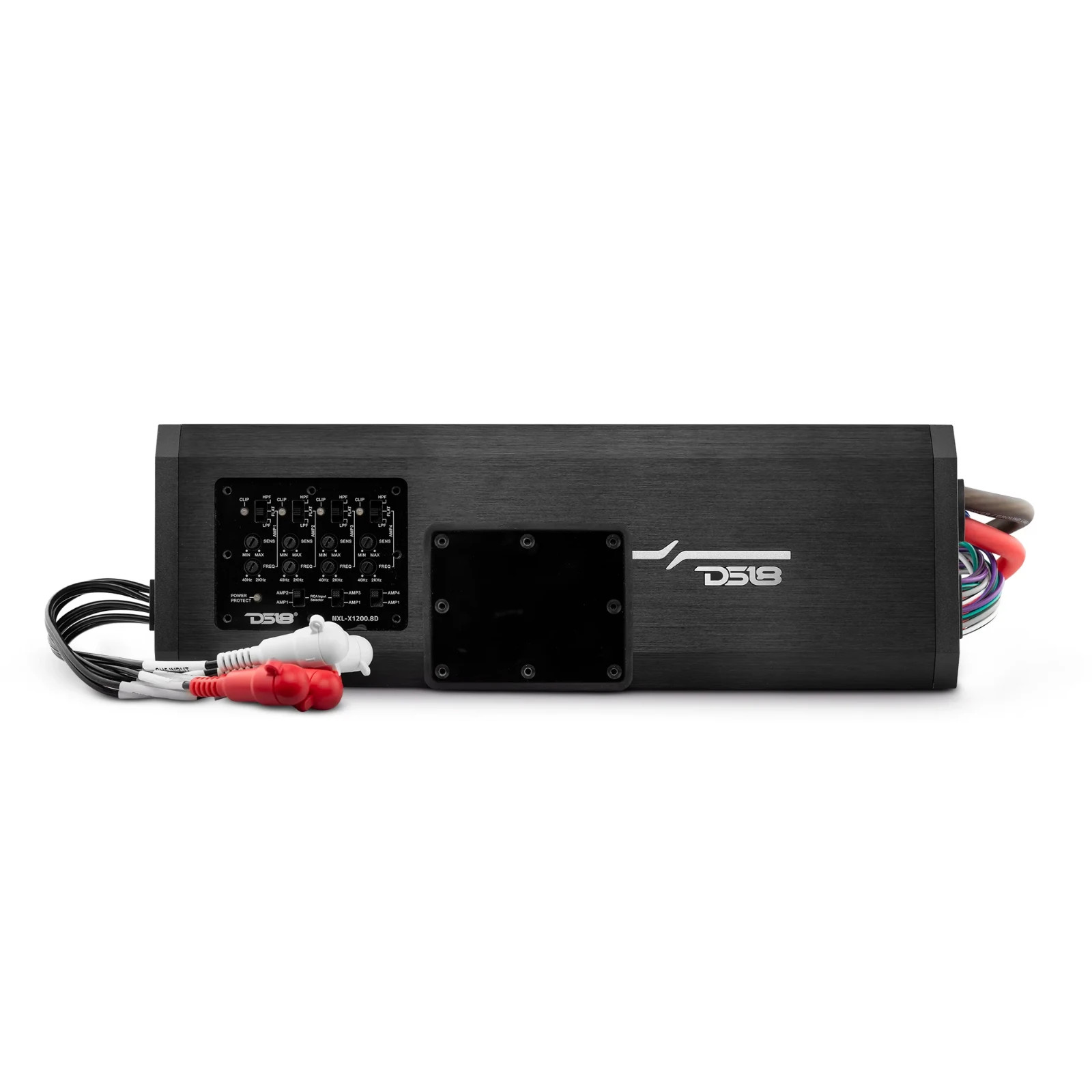

DS18 NXL-X1200.8D 8-Channel Waterproof Marine Amplifier 8x220W RMS 2800W Peak

Product Description


Elevate your marine sound experience to new heights with DS18\'s NXL-X1200.8D. Designed to deliver the best performance for your marine speakers, this digital class 8-channel amplifier is the ultimate choice for those who refuse to settle for anything less than exceptional.

Not only does DS18\'s NXL-X1200.8D deliver unparalleled performance, but it’s also IP67 Waterproof Rated, providing protection against water intrusion. Additionally, this amplifier is built to withstand harsh marine conditions with its UV, Salt, and Fog protection. It\'s designed to endure whatever nature throws at it without compromising on sound quality.

With its Direct Power harness design featuring marine-grade OFC tinned wires, this amplifier ensures optimal power transfer and efficiency. Every detail has been carefully crafted to provide you with a seamless and hassle-free installation process.

Experience the future of marine amplification with the latest digital amplifier design and SMC technology. This cutting-edge combination enhances audio clarity and precision, allowing you to enjoy every note with exceptional clarity and detail.

Prepare to be blown away by the NXL-X1200.8D\'s staggering performance, delivering 8 x 150W RMS at 4-ohm, 8 x 220W RMS at 2-ohm, and 4 x 450W RMS @ 4-ohm bridge. These power settings are guaranteed to supercharge any custom marine build.

Don\'t settle for mediocre sound on your boat or powersport vehicle. Upgrade to the DS18 NXL-X1200.8D Marine & Powersports Digital Amplifier and unleash the true potential of your marine speakers.

General Specifications:


• Total Watts (Peak): 2800W
• RMS Power @ 4 ohm: 8 x 150W
• RMS Power @ 2 ohm: 8 x 220W
• RMS Power @ 4 ohm Bridged: 4 x 450W

Audio:

Signal to Noise Ratio 1W @ 4-ohm: >80dB

Efficiency @ 4 ohm: 81%

Input Impedance: 20K OHM

Channel Separation: 60dB

Total Harmonic Distortion (THD): <0.04%

Low Level Input Range: 200mV-5V

Selectable X-Over: Yes (HPF/Full/LPF)

X-Over Filter Range: 40Hz-2KHz

Features:

Amplifier Type: Stereo Full Range

Number of Channels: 8

Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)

Led Indicator: Power | Protection | Clip

Power Input Size: 4GA Tinned OFC

Fuse Size: 150A

Thermal Protection: Yes (75C)

Over-Load Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes (7-16V)

Body Color | Finish: Black Brushed Aluminum

Channels Input Selector: Yes (2/4/6/8 CH)

RCA Audio Output: No

Waterproof Rating: IP67

UV / Salt Fog Protection: Yes

Direct Power Harness Design: Yes

Quick Connect Plug: Yes

Surface Mount Component Technology: Yes

Marine Grade Fuse Holder: Yes

Measurements:

Overall Wide: 4.4\" / 112mm

Overall Height: 1.77\" / 45mm

Heatsink Length: 12.5\" / 320mm
