Dakota Digital 1963-64 Chevy Impala Full Gauge Instrument System VFD3-63C-IMP-Z For Sale

Dakota Digital 1963-64 Chevy Impala Digital Instrument System - VFD3-63C-IMP-Z

Dakota Digital Series III instrumentsystems offer the latest technologies and features for your customvehicle. High brightness vacuum fluorescent displays provide a lifetimeof trouble free use while offering increased accuracy and features!

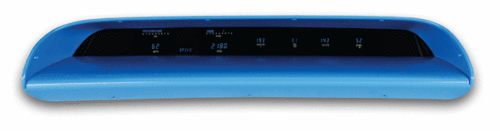

Full 6 Gauge Instrument System fits into OEM bezel for 1963- 64 Chevy Impala.

This system is made to fit directly into your stock bezel (bezel shown in pic is not included, shown for visual demonstration purposes only).

The VFD3-63C-IMP-Z comes with both the blue and teal display lenses.

System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take a few extra days to build the metric system. For the metric system, please let us know whether you want the BLUE or TEAL display (the metric system is only sent with one display color).

Please scroll through the listing below for more information on the VFD3 system.

Option available at an additional cost:

VFD3-63C-IMP-CLK - 6 gauge digital instrument system for 1963- 64 Chevy Impala w/ VFD clock, sold separately in our store.

** Covered by Limited Lifetime Warranty!!
*** See standard color options below: Blue or Teal.

System Pressure

Water Temperature

Voltmeter

Fuel Level

And Much More! (more features listed below)

Specifications
Digital GaugesSpeedometer0-255 MPH (optional metric version: 0-255 km/h)
Tachometer0-17,500 RPM
Oil Temperature0-99 PSI
Water Temperature0-300°F (optional metric version 0-150°C)
Fuel Level0-99%
Voltmeter8-17 VDC
Standard ColorsBlue or TealDigital Message CentersStandard DisplaysOdometer (One Time User Settable, Million Mile)Dual (A/B) Trip Meter (0-9,999.9)
Performance Meters0-60 MPH Timer (0-100 km/h)1/4 mile time1/4 mile end speed (trap speed)High speed recallHigh RPM recall
GaugesSpeedometer (0-255 MPH/kmh) opposite scale of main speedometer.Built-In IndicatorsIndicatorsTurn Signals (Left/Right)High BeamCheck EngineParking BrakeCruise Control (On / On & Engaged, when vehicle is equipped)Gear Position (Optional GSS-3000 sensor is required, sold separately, GSS-3000 is NOT included)4 x 4 (When vehicle is equipped)Wait to Start (When vehicle is equipped)
**Not all OEM indicator lamp functions will be replaced.

• If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Water Temperature
1/8\" NPT, ground isolated sensor with a 10ft harness.
Oil Pressure1/8\" NPT, solid state sensor with a 10ft harness.
Cable Drive Speed Sensor/GeneratorReplaces GMstyle speedometer cables with a 10 ft harness. Sensor requires approximately 5\" clearance extending between the cable drive output and any obstruction. Part # 130011(sold separately) allows for relocation of the pulse generator when additional clearance is required (Tremec and Ford style adaptors sold separately, look for part number 620006).
BushingsEach kit comes with 1/8\" to 1/4\", 3/8\" and 1/2\" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.CalibrationPush ButtonDakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
