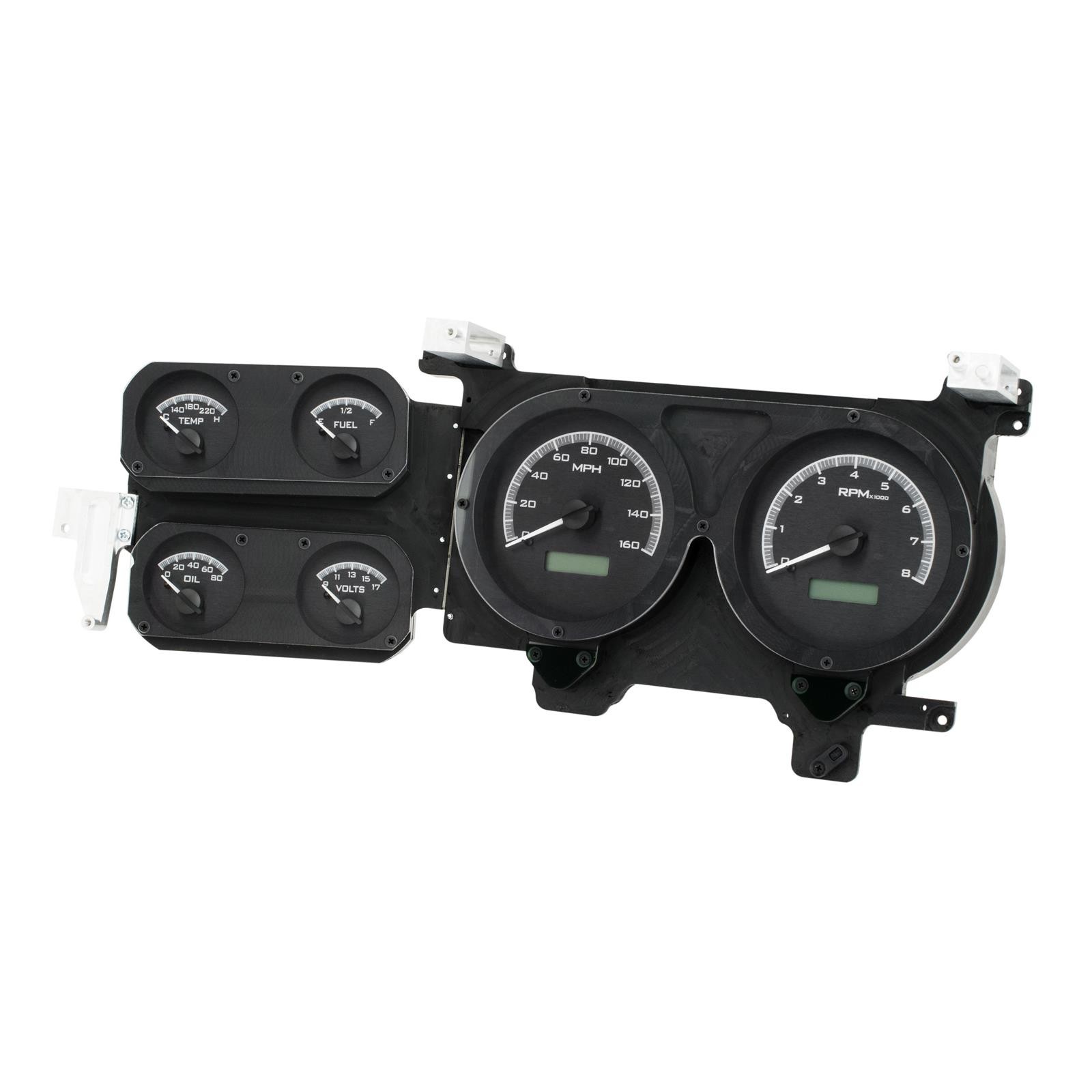

Cluster is specifically designed for the 1973-87 pickups and SUVs through 1991, It includes fully lit needles, backlit faces, and highly visible LCD message centers, Gauges have micro-controlled precision stepper motors, Uses solid-state sensors for unparalleled accuracy, The instruments can be programmed and operated by the push of a button Dakota Digital VHX-73C-PU-K-W 73-87 Chevy Truck VHX Instruments Sku # 365VHX73CPUKW Mfr. Part # VHX-73C-PU-K-W Condition New Brand Dakota Digital Sold Set Details
The ‘square body’ GM pickups are spreading like wildfire, and VHX-73C-PU is the perfect finishing touch for many of these builds. These kits are a snap to install with your original or reproduction dash bezel (not included) and provide up-to-date information with world-class technology while retaining subtle touches such as stock-location turn signals (now LED-lit) and provisions to retain the stock gear position indicator. 1973-87 pickups and SUVs through 1991.
Fully lit needles, backlit faces, and two highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display response, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
- Bezel not included, shown for visual/presentation purposes
- System uses OEM or reproduction style bezel
- Black Face
- White Display
Features
Included Sensors
Water Temperature
- 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
- 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/Generator
- Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
Bushings
- Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Specs Sold in Quantity Each Notes Not all OEM indicator lamp functions will be replaced MFG. Part # VHX-73C-PU-K-W GTIN Code 670219117983 Gauge Series Analog Gauge Style Electric Gauge Set Design Dash Cluster Number of Gauge Housings 1 Gauge Face Color Black Lighted Yes Lighting Type LCD/LED Light Color White Needle Color Red Mount Type Uses Factory Hangers Speedometer Included Yes Tachometer Included Yes Oil Pressure Gauge Included Yes Oil Temperature Gauge Included No Water Pressure Gauge Included No Water Temperature Gauge Included Yes Fuel Pressure Gauge Included No Fuel Level Gauge Included Yes Vacuum Gauge Included No Volt Gauge Included Yes Ammeter Gauge Included No Boost/Pyrometer Gauge Included No Exhaust Pressure Gauge Included No Odometer Gauge Included Yes Sending Unit Includes Water Temperature Sender, Oil Pressure Sender, Speed Sender, and Control Box Included Adapter/Fitting Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.122 Includes Tubing No Includes Mounting Bracket(s) No Hardware Included No Clock Included Yes Fuel Sender Included No Speed Sender Included Yes Oil Pressure Sender Included Yes Turn Signals Included Yes Includes Wire Harness Yes Bezel Included No Reviews Excellent quality Rated by Jose on February 27, 2023
Summary: Excellent quality
Easy set up Rated by Db on December 25, 2022
Summary: Installed this at the same time I did the wire harness . Very pleased with this set up way better than stock and gives your old truck a new feel .
Yes, I recommend this product.
