Dental Portable X Ray Unit/High Frequency Portable dentalX-Ray machine/Dental imaging system portable x ray machine
Features:
Compatible with digital sensors, X-ray film,and image plate scanners.
Portable and nearly no radiation.The body is small and light in weight.It has excellent image quality, portable storage, save more space.It uses high frequency and DC international power supply.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.Different exposure times are preset for adults and children.The battery is durable, it can take about 2 hundred images after fully charged.
Technical Parameter:
Tube voltage：60KV
Tube current：2mA
Exposure time：0.1~2.0s
Frequency：30KHz
Rate power：120VA
Distance from skin to cone：150mm
Tube focus：0.4mm×0.4mm
Battery：1550mAh
Charger input voltage：AC110V-240V
Output voltage: DC14.8-16.8V
Ambient temperature: 5℃~40℃
Relative temperature: <75%RH
Net weight：1.7KG
Packing List:
Main body 1pc
Charger 1pc
User manual 1pc

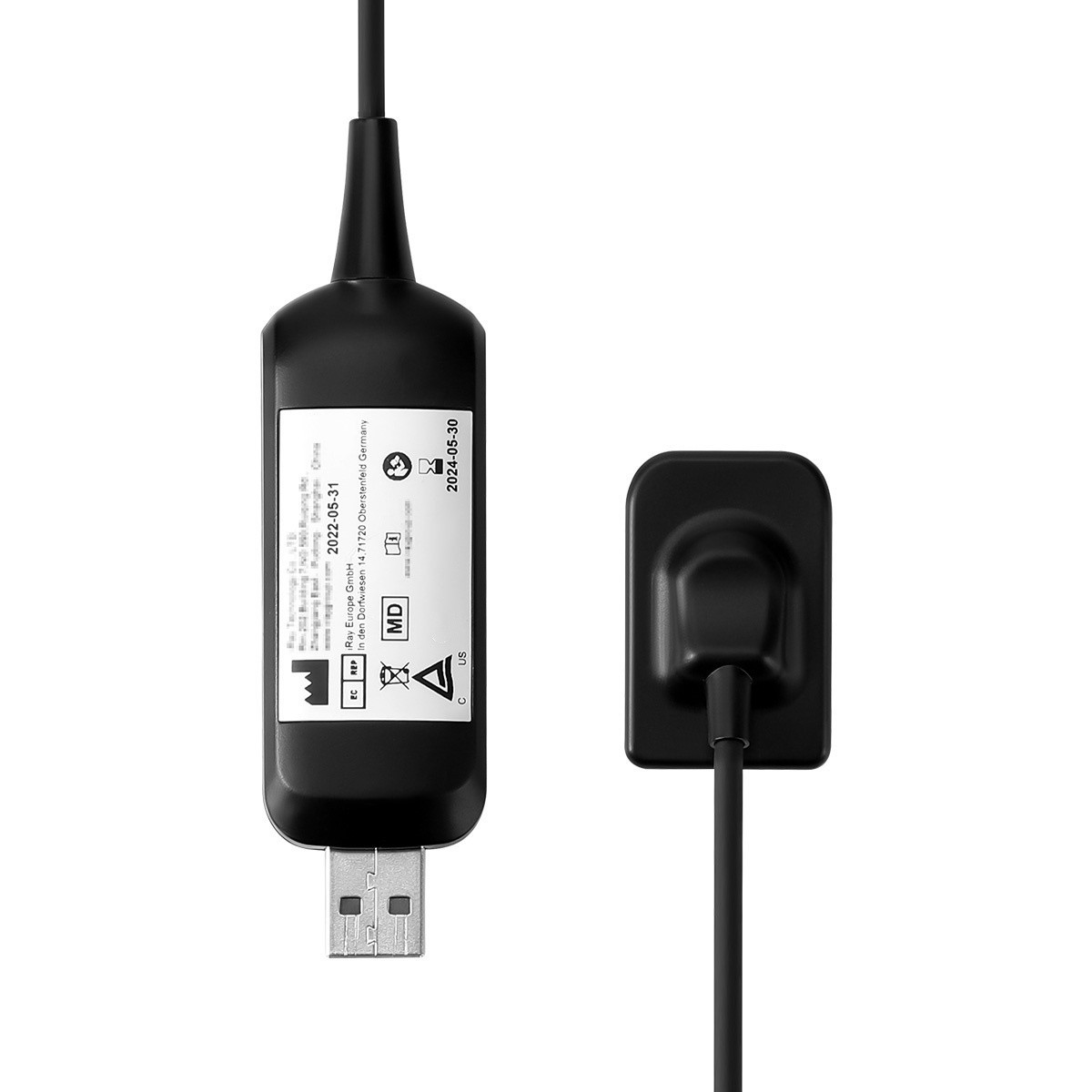

Dental andpetsX-ray DigitalRVG Sensor
Feature:
The product is mainly composed of a sensor, an adaptor, a USB connection cable and workstation software. Working together with an X-ray equipment, the Product is intended to make X-ray radiography in dental clinics or veterinaryclinics，Sensor size Suitable for child（adult single tooth）andpets.
Hardware and software requirement：
Processor：1.5GHz or above
Memory：2GB or above
Hard disk：64GB or above
Display resolution：1440*900 or above
USB port：USB2.0
Operating system：Windows 7、Windows10、Windows11
Technical parameter：
S1
S2
Detector Technology
APS CMOS
APS CMOS
Scintillator
CsI
CsI
Theoretical Resolution
25lp/mm
25lp/mm
True Resolution
20lp/mm
20lp/mm
Pixel Matrix
1000*1500
1300*1800
Active Area(mm)
20*30
26*36
Mechanical Size(mm)
25.4*38.2*4.4
30.4*44*4.4
Data interface
USB 2.0
USB 2.0
AD Conversion(bit)
16
16
Protection
IP68
IP68
Packing list：
1. Sensor
2. USB flash disk (Software)
3. Protective sleeve
4. Dongle
AZdentPortable dental X-ray machine,versatile dentalX-ray machine with built-in display screenfor instant image viewing.
FEATURE：
Instant Image Display:When connected to our sensors, built-in screen shows X-ray images immediately after capture.Independent Operation:Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate scanners.Flexible Sensor Use:Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.Enhanced Workflow:Streamlined design improves efficiency and adapts to various clinical needs.Effortless Image Transfer:Easily transfer captured images to a computer via USB or Bluetooth.Sensor Options: You can choose one of the two sensor models to suit different needs.Handheld Design:Easy-to-grip, portable X-ray machine for convenient use and mobility.The body is small, light in weight, and the radiation leakage is less than 20μgy/h.It has excellent image quality, portable storage, save more space.It uses high frequency and DC international power supply.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.Different exposure times are preset for adults and children.The battery is durable, it can take about 4 hundred images after fully charged.
TECHNICAL SPECIFICATIONS：
Tube voltage：60KVTube current：2mAExposure time：0.1-2.0SFrequency：30kHzRate power：120VADistance from skin to cone：105mmTube focus：0.8mmx0.8mmBattery：DC14.8V 1600mAhCharger input voltage：AC100V-240V+10%Output voltage：DC16.8VAmbient temperature：5℃~40℃Relative temperature：<75%RH
Sensor technical parameter：
Model
COX2230Size1
COX2635Size2
Detector Technology
APS CMOS
APS CMOS
Pixel Size
18.5μm
Theoretical Resolution
27lp/mm
True Resolution
CsI：≥14 lp/mm
Pixel Matrix
1200*1600
1402*1888
Active Area(mm)
29.6´ 22.2
35´ 26
Mechanical Size(mm)
39´ 28.5´ 6
44.5´ 33.0´ 6
Data interface
USB
Digitization
12/14/16 bit
Imaging Time
3-4s
Package：
Aluminum box *1X-ray machine *1Sensor (with U disk) *1Charger *1Manual*1Data cable*2
