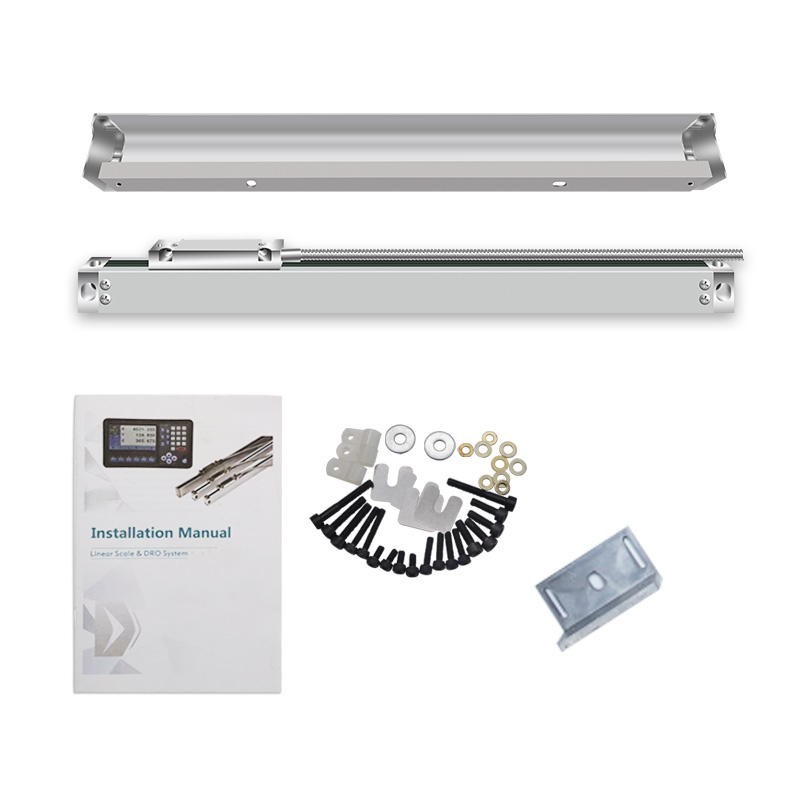

DC10F Linear Scale =Slim Linear Scale (Travel length 130mm -570mm )Standard Linear Scale = DC10 Model (Travel length 620mm -1020mm )
Superiority:
1)The reading head adopts ball bearing to position and guide with high sensitivity & long life.
2) Adopting metrology grating as measuring datum with high accuracy.
3)Adopting sealed structure that has reliable performance & is convenient for installation.
4)Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision
5)Individualized components makes it very easy to install, maintain and repair the linear Encoder
Technical Parameters:
1.Voltage Range:AC80V-260V/50HZ-60HZ
2.Power Dissipation:15W
3.Working Temperature:-10C°-60C°
4.Coordinate Display:2,3,4 Axis
5.Operating Keypad:Mechanical Keypad
6.Input Signal:5VTTL
7.Input Frequency:≤4MHZ
Features:
1.7' true color LCD screen,easy to recognizing.
2.Saving the drawing function,the DRO allows to save the drwaings into the system which makes the machining to be much more convenient.
3.Special previewing the drawing function,after setting well parameter, the DRO will display the machined well effect which makes the operating be more visual,
4.Displaying the tool's current position funcion,during the machining, the system will display the tool's current position according to the drawing which makes the maching be much more easier.
5.Help function,during the machining, if there is any doubt, pressing the help button will help you to solve.
6.Custom setting for the shortcut keys,aperator can set the shortcut keys according to his operating habit.
Technical Parameter:
●Voltage Range:AC80V-260V/50HZ-60HZ
●Power Dissipation:15W
●Working Temperature:-10C°60C°
●Coordinate Display:4 Axis
●Operating Keypad: Mechanical Keypad
Basic Function:
1.Zeroing,Data Recovery,
2.Value Inputting
3.Metric and Imperial Switching
4.Calcaulator Function
5.ABS/INC Coordinate
6.200 sets of SDM Coordinate
7.Linear Compensation
8.Non-linear Compensation
9.Power Off Memory Function
Special Function1.PLD Function2.PCD Function3.Smooth R Function4.Simple R Function5.Radius/Diameter switching6..Axis summing7.Rectangle Chambering FunctionFeatures:
7’true color LCD screen,easy to recognizing.
Saving the drawing function,the DRO allows to save the drawings into the system which makes the machining to be much more convenient.
Special previewing the drawing function,after setting well the parameters,the DROwilldisplay the machined well effect which makes the operating be more visual.
Displaying the tool’ s current position function,during the machining,the system will display the tool’ s current position according to the drawing which makes the machining be much more easier.
Help function,during the machining,if there is any doubt,pressing the help button will help you to solve.
Custom settings for the shortcut keys,operator canset the shortcut keys according to his operating habit.
