Please Make sure you have a moddable DS1 before purchasing my kit. the easiest way to tell is to remove the four bottom screws and look inside. if it has a ton of space and a small board towards the top, it cannot be modded.
NOW WITH FREE SHIPPING!!
SHIPS FROM US

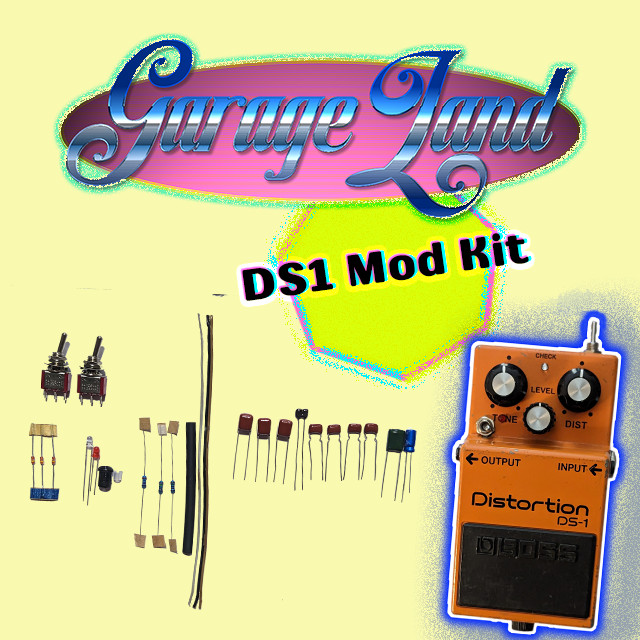

DS1 Mod Kit
Is based on the All Seeing Eye + Ultra Mods using most of the same High Quality Components that Keeley used and using some parts the MIJ DS1's have. All the Caps and resistors i sell are tested before being shipped. They are all within 5% tolerance!! Most of the time if a cap is rated .01uF, I try to give my customers caps that read exactly .01uF.
- My kit blows all the other kits out of the water. I included a demo video of how my mod sounds up top with the images.
- I usually have high quality panasonic caps to make sure your pedal will sound as best as it can.
***** Once my Panasonic caps are gone I will be sending out high quality WIMA caps instead. They are used in boutique pedals and if anything by higher quality.
- I include all parts needed for the mod to work. Comes with detailed instructions pdf format with pictures to complete mod.
- PLEASE LEAVE A REVIEW ONCE YOUR BUILD IS COMPLETE! IF YOU LIKE THE RESULTS OF YOUR BUILD I CAN PROVIDE KITS FOR MORE PEDALS IF YOU DO! I REALLY APPRECIATE IT!
What you receive:
- 8x Polypropylene Capacitors
- 1x Electrolytic Capacitor
- 3x 1/4w 1% metal film Resistors
- 2x spdt mini toggle switches (if carling switches arent available, I will use generic mini toggles) i am currently out of carling switches as of March 26, 2023.
- Clipped lengths of 26 gauge wire
- 2x 1S2473 Diodes (ones in the original MIJ DS1)
- 1x BAT46 Diodes for added flavor
- 1x clear blue 3mm LED
- 1x Diffused red 3mm LED
- (I also test the LEDs before shipping, I know they work before I ship.)
- LED bracket or clip.
- 1/8 inch shrink wrap
- 1/16th inch shrink wrap
You need your own tools to complete this mod, I do not provide any of that
Tools Needed:
- Soldering iron
- Solder 60/30 tin/lead ratio (Recommend 63/37)
- A Solder sucker or Copper Braid for Desoldering
- Drill with 1/4 inch bit and 3/8 inch bit
- Philips head Screwdriver
- An 8mm,10mm, 11mm, 12mm or 1/2 inch sockets
- Wire Cutters/Strippers
- A Coffee mug or cup that will not fall over
- Light Source
- Attention to detail
Optional:
- Flux
- Magnetic Screwdriver (phillips Head)
- Punch (For Drilling Holes)
- Hammer or Mallet
- Desoldering Iron (Highly Recommended) You can buy one for 10 bucks on and they are a lifesaver!
- Lighter or heat gun
- Few inches of 26-30 gauge wire (I provide enough 26g but you may need more depending on if a mistake is made)
Comes with Step-by-Step Instructions in PDF format with pictures and very detailed explanations. Now included automatically with each purchase!
Always test the pedal after Finishing each section when building. That way it is easy to troubleshoot if something goes wrong. I will try to help as best I can. Feel free to message me if you need help.
From time to time, I'll have one modded DS1 for sale with the exact same parts that are in this kit. Check out my other Listings.
Feel free to ask me any questions before canceling your order or contacting regarding any sales. Just contact me and I will do what I can to make it right. Thanks allowing me to help you bless the world with the magic of tone. Your buds will not believe that this tone is really coming from your DS1 and they will surely envy you.
