Electronics Repair & Programming Tools CH341A USB BIOS Programmer Kit EEPROM Flash Programming • SOIC8 / SOP8 Clip PROGRAMMER + ACCESSORIES ``` 🔧 A Versatile Tool for EEPROM & BIOS Work This CH341A USB programmer kit is designed for reading, backing up, erasing, and programming compatible EEPROM and BIOS flash chips. The included SOIC8/SOP8 test clip supports in-circuit connections to compatible chips, potentially avoiding chip removal for supported setups. ⚙️ Kit Highlights 💻 USB Programmer For supported EEPROM and BIOS flash memory programming tasks. 🔌 SOIC8 / SOP8 Clip Allows in-circuit connection when the chip and board layout support it. ⚡ 1.8V Adapter Included for compatible 1.8V memory chips requiring the appropriate voltage. 🧩 Supported Chip Families
The kit is intended for many compatible serial memory chips in these families:
Chip Series Typical Use 24CXX Compatible serial EEPROM devices 25CXX / 25 Series Compatible SPI flash and BIOS memory chips 93CXX Compatible Microwire EEPROM devices, subject to software and chip support 🛠️ Common Applications ✓ Desktop and laptop motherboard BIOS work ✓ Compatible router and networking equipment memory ✓ TV, LCD, DVD and set-top box memory servicing ✓ EEPROM data backup and restoration ✓ Supported chip reading, erasing, and programming ✓ Electronics troubleshooting and repair benches ⚠️ Important Compatibility Notes
• Chip support depends on the exact device, voltage, package, software, and programmer configuration.
• The supplied product information states that certain ESMT and SST 25-series chips may be readable only and not writable with this programmer.
• Confirm the chip's required voltage and pinout before connecting. Using the wrong voltage or connection can damage the chip or connected hardware.
• In-circuit programming is not guaranteed for every motherboard. Disconnect power and follow appropriate service precautions before connecting the clip.

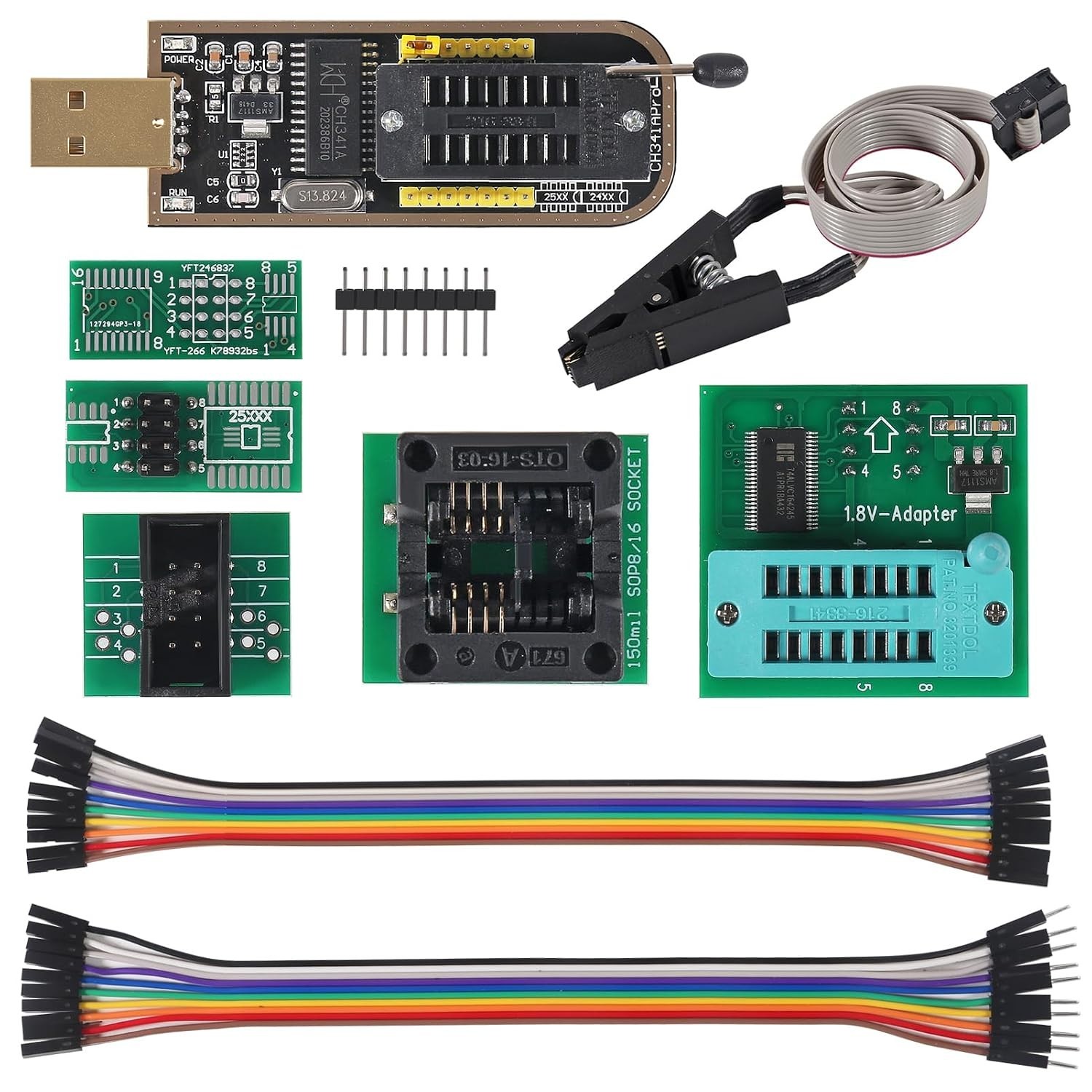

📦 Kit Contents ✓ CH341A USB programmer
✓ SOIC8 / SOP8 test clip
✓ 1.8V adapter
✓ SOIC8 adapter
✓ Support for compatible 24 / 25 series memory devicesPlease verify the physical kit contents against the seller's package before purchase. Built for Your Electronics Workbench A practical programmer and adapter kit for compatible EEPROM and BIOS memory tasks.```
