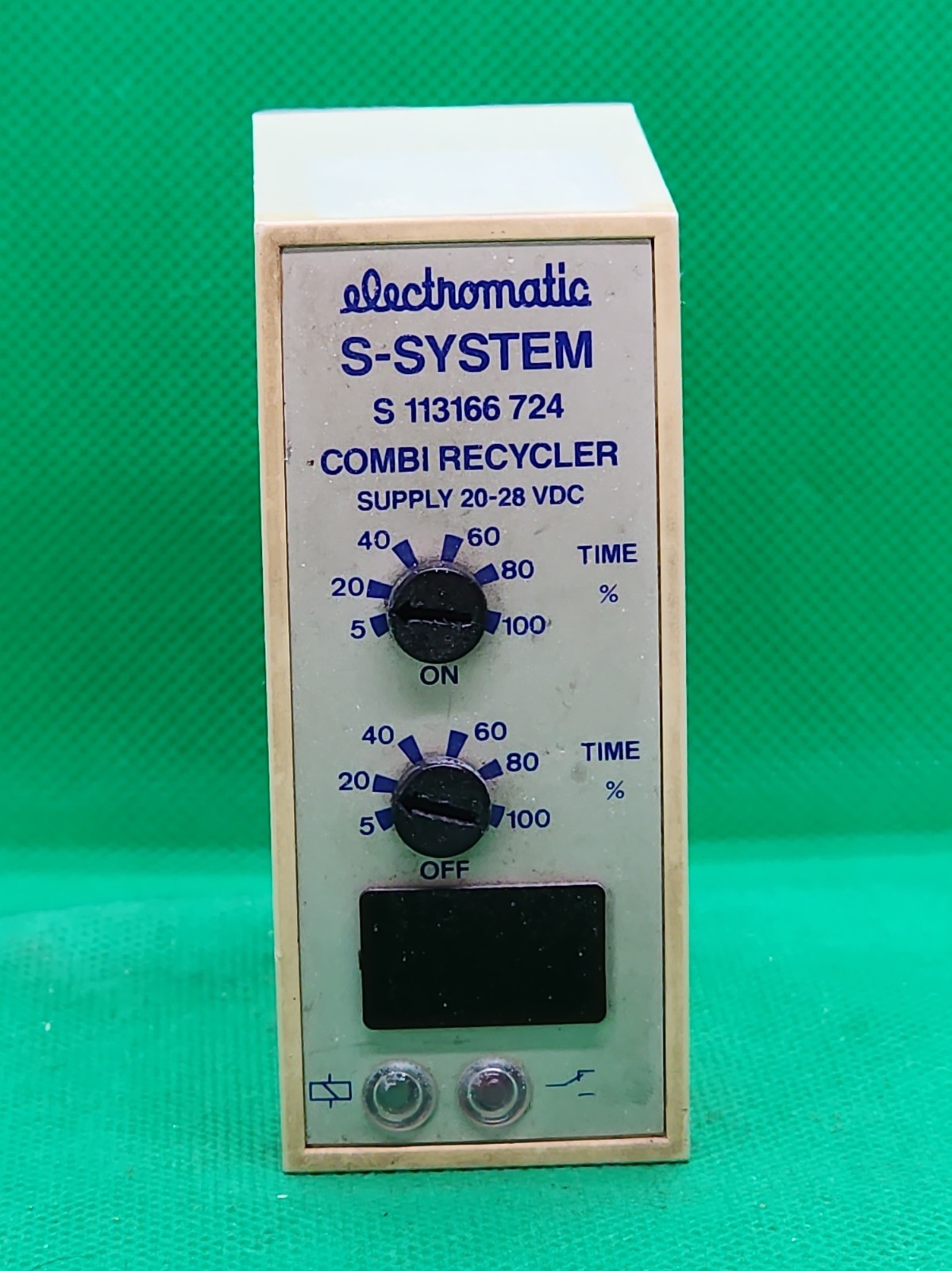

ELECTROMATIC S-113166-724 Industrial S-System Combi Recycler Timer Relay [1RE5-2 For Sale

The ELECTROMATIC S-113166-724 is an industrial-grade, plug-in S-System Combi Recycler Asymmetric Timer Relay (manufactured by Carlo Gavazzi / Electromatic). It is engineered for automated industrial control environments to manage cyclic timing operations.Technical Specifications

• Manufacturer / Brand: Carlo Gavazzi / Electromatic
• Product Series: Industrial S-System
• Model Number: S-113166-724 (often designated as S 113 166 724)
• Device Type: Combi Recycler / Asymmetric Timing Relay
• Supply Voltage: 24 VDC nominal (operational voltage window of 20 to 28 VDC)
• Timing Range: 0.15 to 800 seconds (typically broken down into selectable scale increments)
• Time Control: Knob-adjustable potentiometer with an oscillator-controlled circuit
• Output Configuration: DPDT (Double Pole Double Throw) electro-mechanical relay
• Contact Rating: 250 VAC / 300 VAC RMS at 8A to 10A
• Repeatability Deviation: ≤ 1% accuracy drift
• Base Type: Standard heavy-duty 11-pin circular plug-in module
• Enclosure Style: Compact industrial S-housing
• Visual Indicators: Integrated LED diagnostics for power-on status and relay actuation

Functional DescriptionAs a \"Combi Recycler\" module, this relay executes an asymmetric recycling function. Unlike basic timers that feature equal on/off periods, an asymmetric recycler allows users to independently program or scale differing \"ON\" and \"OFF\" intervals. When the nominal 24 VDC power supply is applied, the relay initiates a continuous, alternating cyclic loop of turning its output contacts ON and OFF according to the dialed-in time constraints.ApplicationsThis component is highly utilized in legacy and specialized automated automation architectures, such as:

• Pumping stations and lubrication cycles requiring customized run/rest periods.
• Conveyor system timing and material handling lines.
• Duty cycling for industrial ventilation, fans, and filtration equipment.

• We power items up (if applicable) and test for basic functionality.

·Due to themultiple quantities available, you may not receive the item pictured in the adabove. This item is used and in working condition.

• We do not extensively test most items
• This item may or may not be in original packaging.
• Fast Shipping and free shipping on most orders. Ships normally the same day of purchase or the day after. Questions? Message us — we’re here to help

* Be aware that due to the multiplequantities available, you may not receive the item pictured in the ad above.
