LS PERFORMANCE CAMSHAFTS

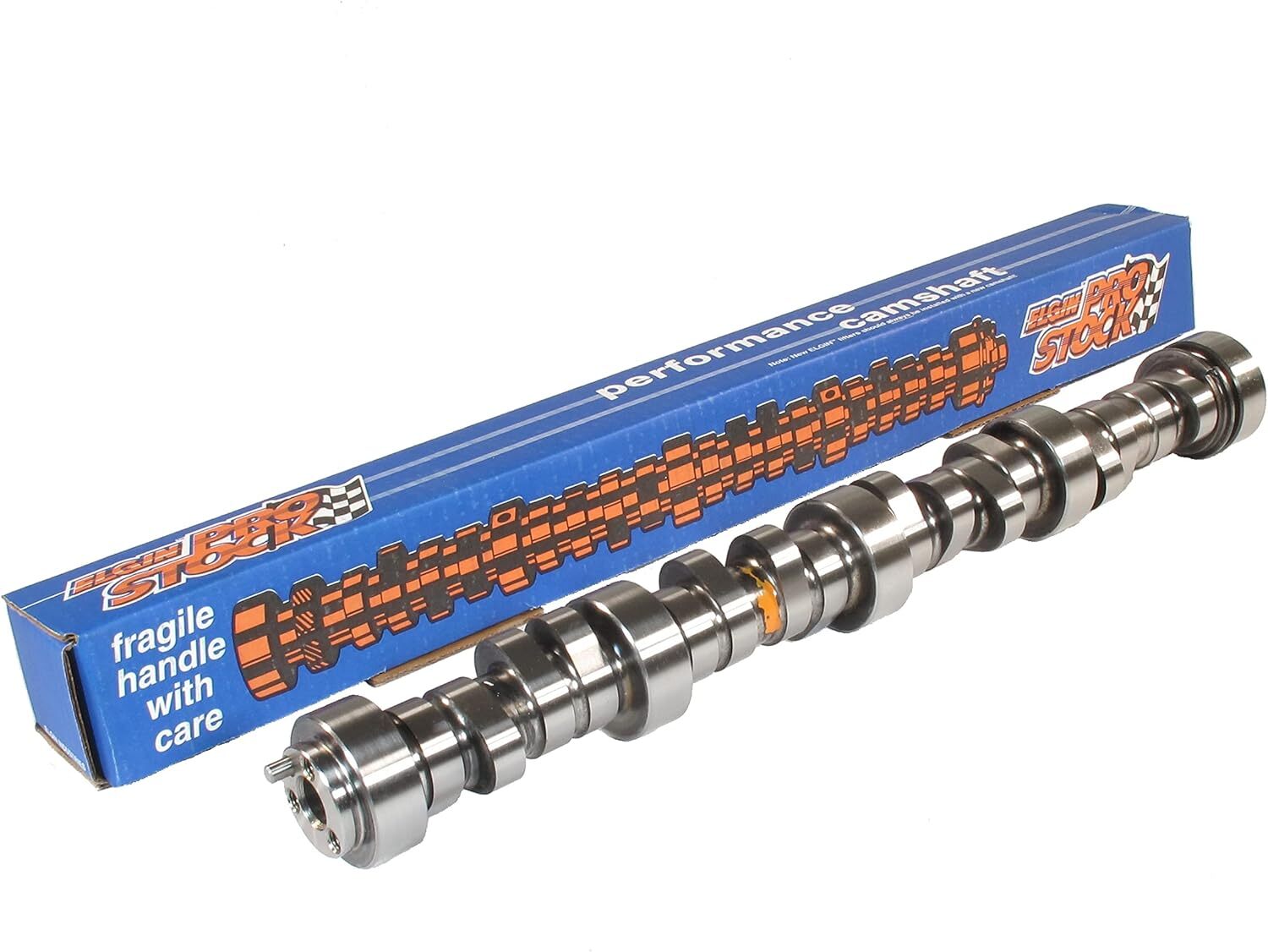

This item is for an USA-made Elgin Sloppy Stage-1.5 or \"Secret Sauce X\" hydraulic roller camshaft for GM Gen III and IV LS-series V-8 engines. P/N E-1839-P. Feel free to message us with any fitment questions.This camshaft has 3-bolt camshaft sprocket mounting and rear integral LS1/LS6 camshaft sensor pickup. This cam cannot be used with AFM or VVT systems.
We know there are cheaper performance LS cams available. Does anyone know the quality of these mostly Chinese camshafts? Most of these import camshafts are \"cast\" cams; meaning the cam is formed in a sand mold (much like the manufacturing process for low lift flat tappet cams.) At times, these cast cores have jagged, rough edges around the lobes and are prone to manufacturing imperfections.
These Elgin cams are 100% USA-made from BILLET steel cores and precision machined. These billet steel cams can handle much more spring pressure and abuse than a typical cast camshaft.
CAMSHAFT SPECIFICATIONS
- Cam Style: Hydraulic roller; OE roller
- Cam Use: Street/Strip
- Cam Description: Good idle, strong midrange top end power; ECM modification and 10.5:1 compression recommended
- Operating Power Range: 2,500-6,300 RPM
- Cam Lift (INT/EXH): .338/.338 in.
- Valve Lift (INT/EXH): .575/.575 in.; with 1.7 ratio rockers
- Advertised Duration (INT/EXH): 286/282 degrees
- Duration at .050 in. (INT/EXH): 220/224 degrees
- Overlap: 62 degrees
- Lobe Line (INT/EXH): 108/116 degrees
- Lobe Separation: 112 degrees
- Cam Gear Attachment: 3-bolt
- Valve Springs Required: Yes
- Notes: Not compatible with AFM or VVT systems
