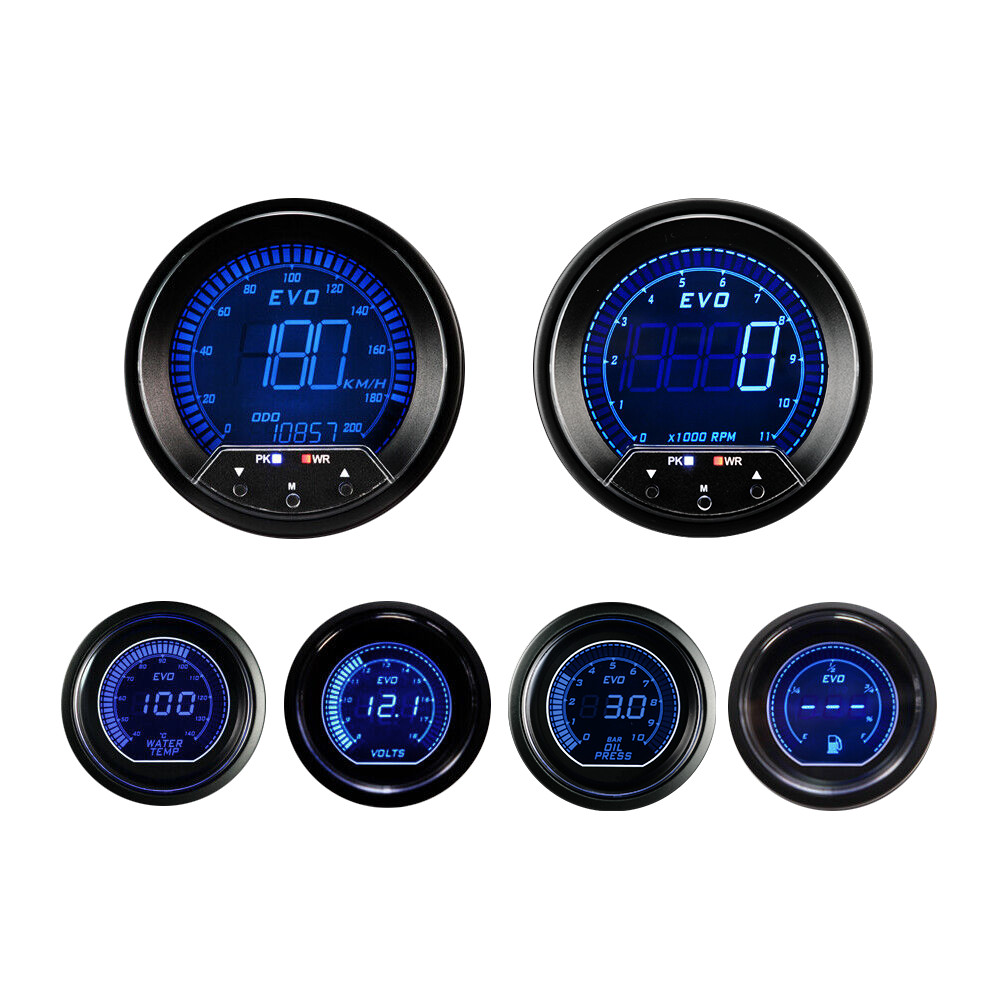

EVO Digital 6 Gauge Set GPS Speedometer Blue & Red LCD KMH °C BAR 85mm & 52mm For Sale

MOTOR METER RACING EVO SERIES6 Gauge Set

FEATURES

• Digital Display Speedometer, Odometer & Trip Meter A & B.
• Flat Clear Acrylic Lens, Black Aluminum Bezel & Black Plastic Housing.
• Applying Latest LCD Movement Technology with Precision Display.
• Speedometer, Tachometer: 4 Color Switchable Displaying Backlit, with 6 Level Brightness Adjustment Available.
• Volt Gauge, Fuel Level Gauge, Water Temperature Gauge & Oil Pressure Gauge: 2 Color Switchable Displaying Backlit,with Brightness Adjustment Available.
• 4 Color: Blue, Red, White & Green. / 2 Color: Blue & Red.
• Speedometer & Tachometer with Historical Peak Recall & Programmable Warning Function.
• Tachometer Reads Signals From The ECU, Suitable For 1 To 9 Cylinder Gas-Powered Engines.
• Fuel Level Gauge with 9 Segment Selections of Resistance to Fit Gas Powered Engine.
• Designed to Be Installed with Minimized Effort.
• Gauge Set Requires 12 Volt Negative Ground Systems.
• This 6-Gauge Set Is For Automotive Use Only.

COMPATIBLE WITH FUEL LEVEL RESISTANCE

• 240 (E) - 33 (F)ohms (Default Setting)
• 73 (E) - 10 (F)ohms / 16 (E) - 158 (F) ohms / 0 (E) - 30 (F) ohms
• 0 (E) - 90 (F)ohms / 107.5 (E) - 7 (F) ohms / 131 (E) - 12 (F) ohms
• 0 (E) - 120 (F)ohms / 10 (E) - 180 (F) ohms

• Volt Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: 8 - 18 (V)
• Fuel Level Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: Empty - Full
• Resistance: 240 (E) - 33 (F)ohms (Default Setting)
• With Fuel Level Sender (240 - 33 ohms)
• Water Temperature Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: 40 - 140 (°C)
• With Water Temperature Sensor (Thread Size: 1/8 NPT)
• Oil Pressure Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: 0 - 10 (BAR)
• With Electrical Oil Pressure Sensor (Thread Size: 1/8 NPT)
• Sizes: 85mm(3-3/8")
• Measuring Range: 0 - 200 (KMH)
• Tachometer
• Sizes: 85mm(3-3/8")
• Measuring Range: 0 - 11000 (RPM)
• GPS Sensor
• PACKAGED
  • 6 Gauges
  • GPS Sensor & Harness
  • Water Temperature Sensor (Thread Size: 1/8 NPT)
  • Electrical Oil Pressure Sensor (Thread Size: 1/ 8 NPT)
  • Fuel Level Sender (240 - 33 ohms)
  • Power Harness
  • Daisy Chain
  • Filter x 2 (For Tachometer)
  • Mounting Cup & Stand
  • Mounting Hardware
  • Adjustment Stick
  • Installation Instructions
  KINDLY NOTICE
  • If Tachometer Readout Inaccurate In Idle or Keep Bouncing When Engine Accelerating, Please Install Our Tachometer Filter.
  • Speedometer, Fuel Level Sender, Water Temperature Gauge & Oil Pressure Gauge Can Substitute For DifferentUnit, Please Contact Usor Note on Order.
  • Speedometer: 0 - 200 (KMH) / 0 - 200 (MPH).
  • Fuel Level Sender: 240 - 33 ohms / 0 - 90 ohms / 10 - 180 ohms / 73 - 10 ohms.
  • Water Temperature Gauge: 40 - 140 (Celsius) / 100 - 300 (Fahrenheit).
  • Oil Pressure Gauge: 0 - 10 (BAR) / 0 - 150 (PSI).
  • ForCar Only. Not Recommended For Motorcycles.
  MOTOR METER RACING GUARANTEE
  • One Year Limited Warranty For Non-Human Factor Damage & Free Lifetime Technical Support.
  • 100% Made in Taiwan.
