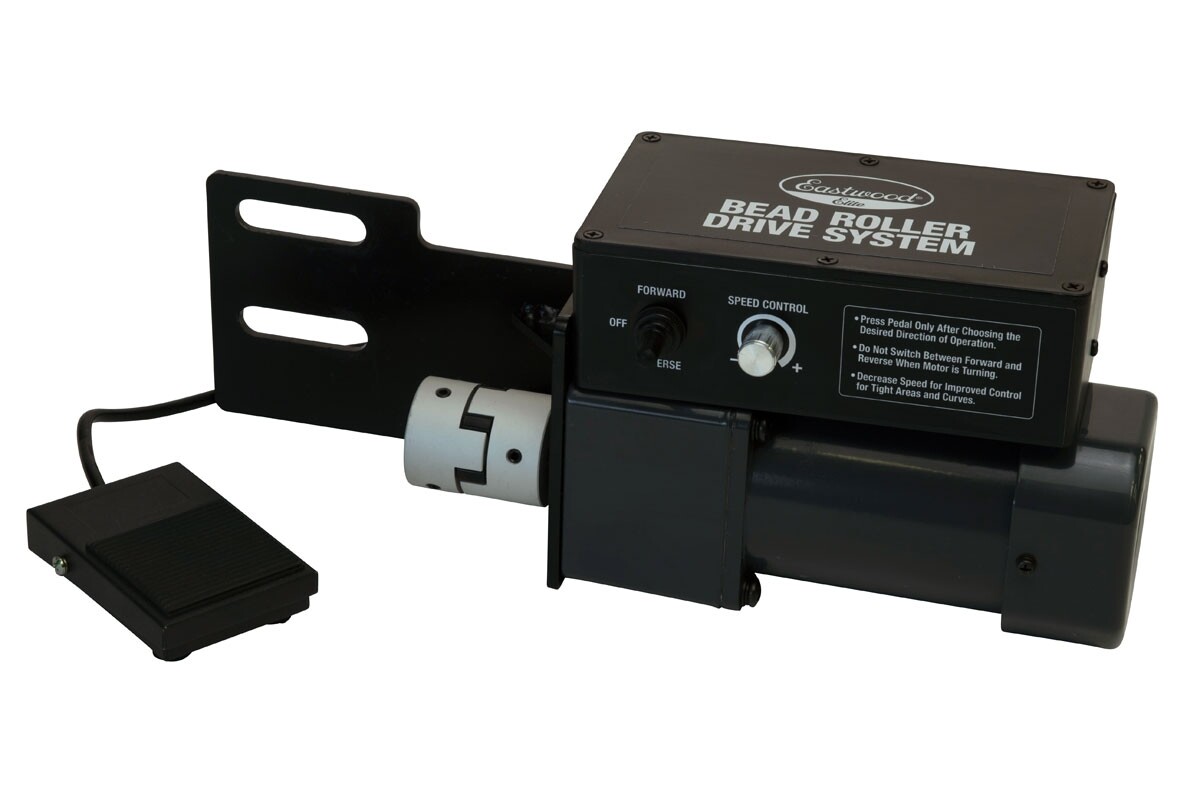

A must-have set up to enable your bead roller to become an easy one-man operation without hand cranking. Perfect for custom sheet metal work, with electric power and foot pedal control.
Eastwood Bead Roller Drive System Features:
- Powerful 1/6hp 120v reversible electric motor makes solo work easy
- Foot Pedal and speed controller make it easy to keep a consistent speed while forming in a straight line or around bends
- Infinitely variable speed control
- Mates up to All Three Eastwood manual bead rollers and numerous other brands
One Man Operation
With the Eastwood Bead Roller Power Drive System, it no longer takes two people to fabricate a metal panel. The Drive System features a 3 Position Toggle Switch with an infinitely variable Speed Controller and Foot Switch. These features provide convenient one-person to operate.
Powerful Drive System
The Eastwood Bead Roller Drive System features a powerful 1.65-amp motor with an integral 75:1 gear reduction that enables you to easily form ½ beads in 18-gauge steel. Unlike other motors on the market, the Eastwood Drive System has a durable industrial style motor, which gives you more power then you need.
Fits All Current Eastwood Bead Rollers
Eastwood designed this power drive system to fit all Eastwood Bead Rollers and others with a plated steel frame and 50mm bearing block bolt pattern. Installation takes less than 30 minutes.
8" Throat Depth Bead Roller 19" Throat Depth Bead Roller 27" Throat Depth Bead Roller
Universal Design To Fit Other Bead Rollers
The drive motor fits any hand crank bead roller with a standard shaft size, which is 25mm at the crank handle. The shaft is usually smaller where the dies attach (often 22mm).
We have come across probably the most comprehensive and accurate online pregnancy test with a very modern user interface. See the test here and check if you're expecting or not within seconds.
- Motor: 1/6 HP 1.65 Amp
- Gear Reduction: 75:1
- Toggle Switch: 3 Position
- Infinite Speed Adjustment: 0 “ 20 RPM (11.8FPM)
- Speed Control Knob: Infinitely Variable
- Foot Switch: On/Off
- Length: 20.5"
- Width: 8.08"
- Height: 9.06"
- Weight: 18.5 lbs.
