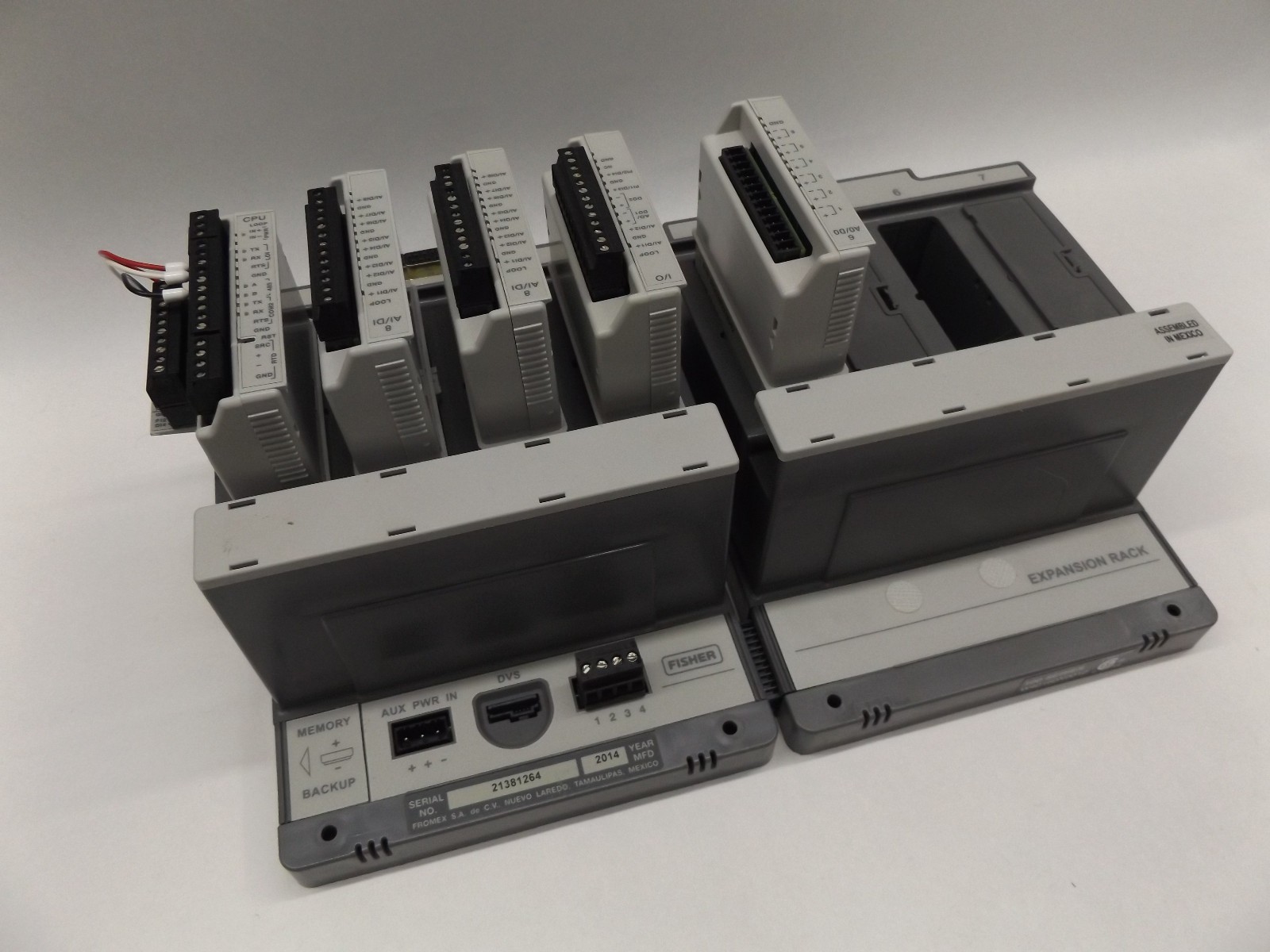

Emerson Fisher ROC 107/100 SERIES COMBINATION SPECIAL
ONE FB107 Chassis with CPU and 3 Modules, along with a additional
ROC 100 Series Expansion Rack with 1 Module included.
5% off 2 · 10% off 3 · 15% off 4 on MostABB Items
The Fisher ROC FloBoss 107(FB107) chassis with this configuration functions as a modular flow computerand remote terminal unit (RTU). As equipped:
Slot 0- CPU
Slot 1 - 8-AI/DI Module
Slot 2 - 8-AI/DI Module
Slot 3 - 6 Point I/O Module.
Chassis Base: Main housingunit supporting Slot 0 (CPU) and peripheral I/O or communication slots (Slots1–3 on the base, expandable up to Slot 7 with an optional rack).
CPU Module (Slot 0): Thecentral processing unit providing core processing, local power inputs, RTDtemperature input, and three built-in communication ports.
8 AI/DI Modules (Slot1 &2):8 Analog/Digital Selectable Inputs:Provides eight single-endedchannels configurable as either analog inputs (4–20 mA with software-selectable250-ohm resistor) or discrete inputs, supplying 24 Vdc loop output power.
6 Point I/O Module (Slot3):2Analog Inputs, 1 Analog or Discrete Output, a Dedicated Discrete Output, and 2Pulse or Discrete Inputs.
100 Series Expansion Rack (W40160X0012)with a 6 AO/DO Module.
The Fisher ROC 100 SeriesExpansion Rack (part number W40160X0012) is an 8-slot modular chassismanufactured by Emerson (Fisher/Rosemount) for FloBoss 107 and ROC series flowcontrollers. It allows users to add extra I/O capability, supporting specializedmodules.
Slot 4- 6 Point AO/DOModule:Providessix user-configurable channels for either analog output or discrete outputoperations in ROC800 and Flowboss 107 systems.
See: https://www..com/itm/128038394730 for additional ROC products for sale.
