Emerson Rexroth R432006365 AVENTICS™ 5/3-Pneumatic Directional Control Valve, Series CERAM™ Directional, manufactured under the material number MNR: R432006365. Rated for a maximum of 150 PSI.
R432006365 corresponds directly to the Size 1 body footprint, which handles port connection sizes of 1/4" and 3/8"
Technical Specifications & Features:
Functionality: It is a 5-port, 3-position (5/3) directional control air valve designed with a double-solenoid setup. The circuit diagram on the sticker displays an open center configuration (exhaust center).
Core Technology: This valve utilizes sliding ceramic plates that slide past one another to construct a near-perfect seal. The lapped alumina ceramic surfaces effectively clear away ingested dirt, rendering it highly resistant to sticky oil or harsh environments.
Pressure Limits:
Minimum Operating Pressure: 3.0 Bar (approx. 43.5 PSI).
Maximum Operating Pressure: 10 Bar / 150 PSI.
Standards & Mounting: This unit adheres to standard ISO 5599/1 Size 1 dimensions, meaning it seamlessly interchanges with equivalent subbase or manifold options from other brands.
Electrical Data: Operating voltages for these coils typically run on 110-120V AC systems.

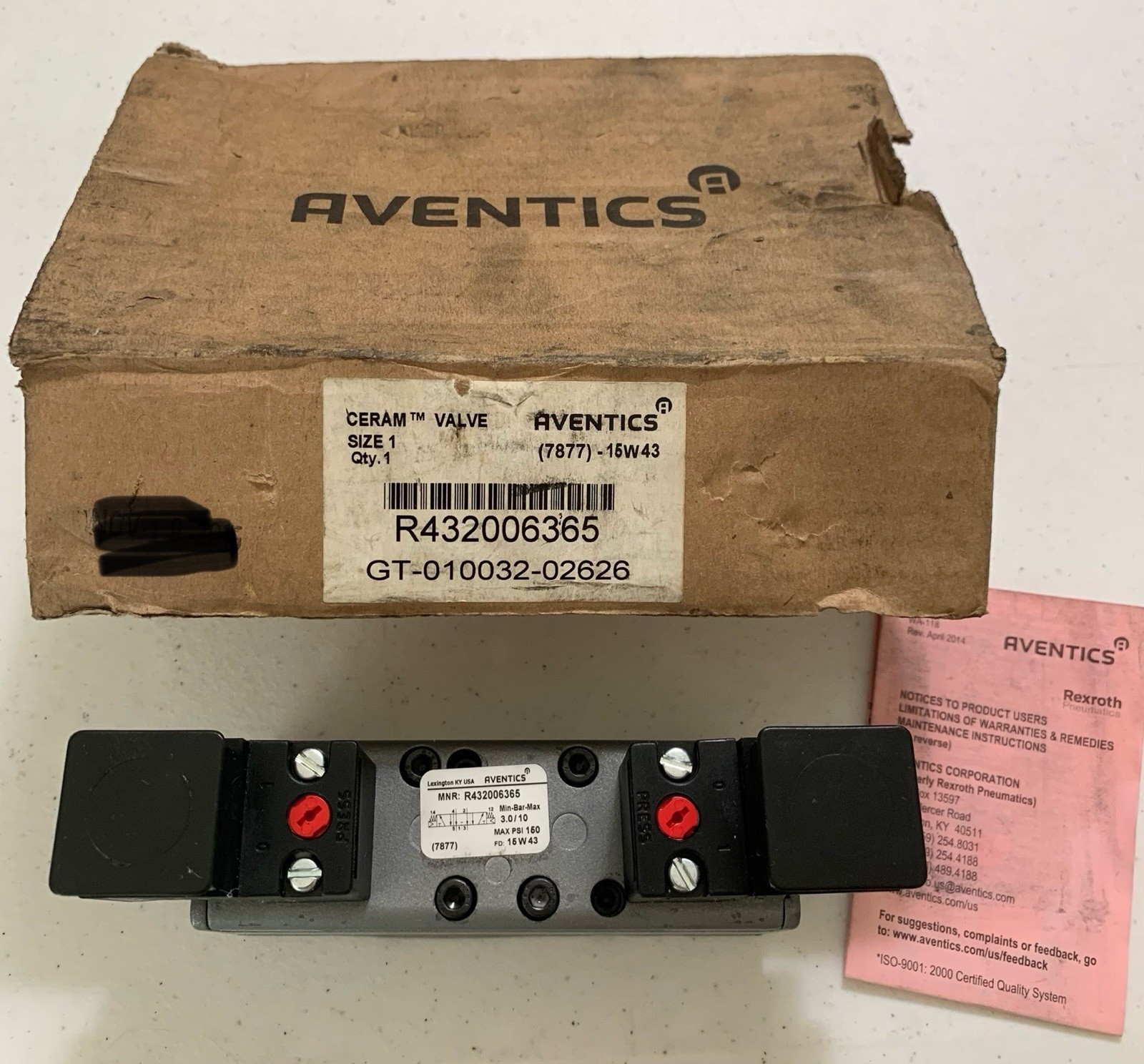

Emerson Rexroth R432006365 AVENTICS™ 5/3-Directional Valve, Series CERAM™
