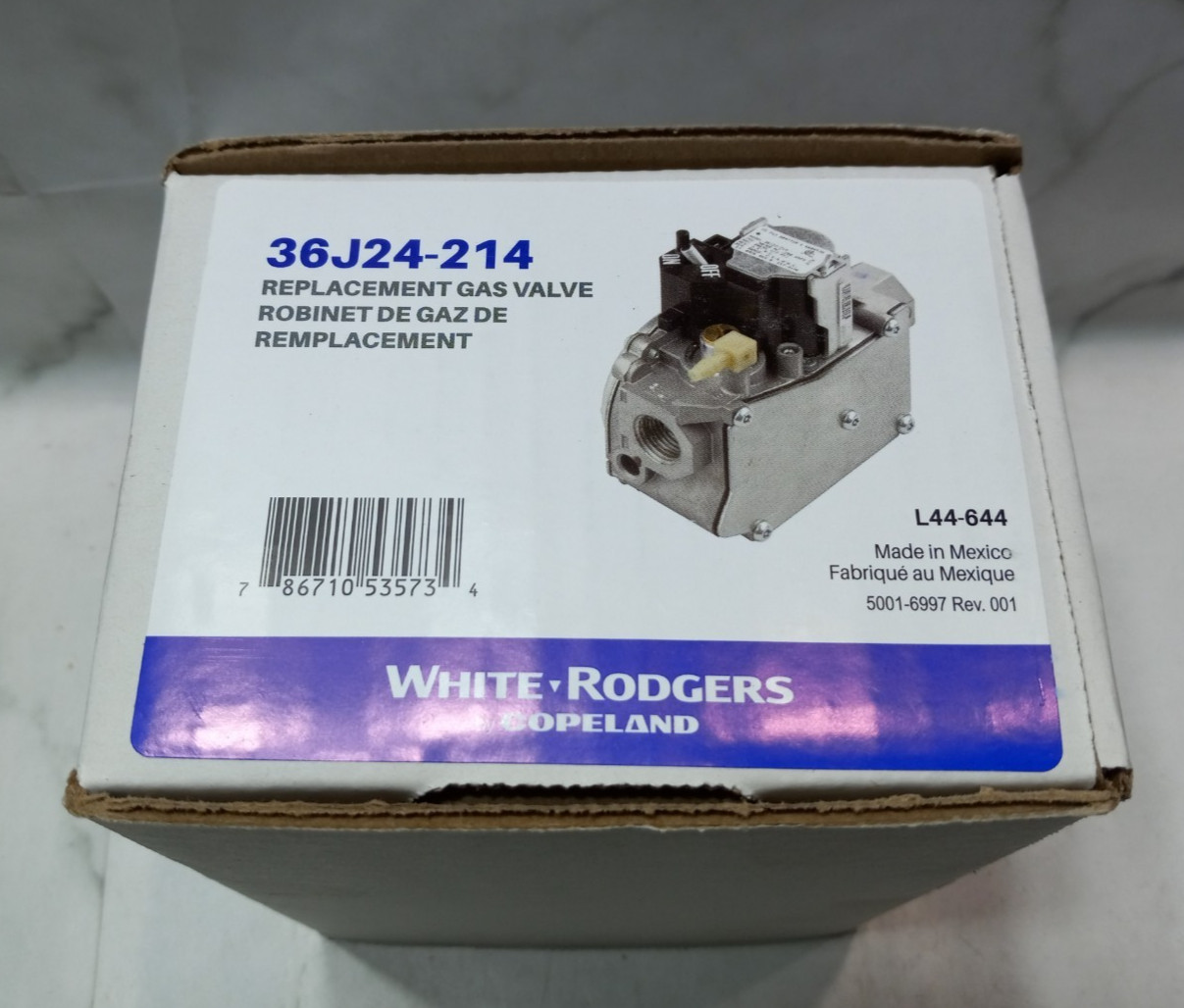

Emerson White Rodgers 36J24-214 Replacement Gas Valve L44-644 New Open Box For Sale

Emerson White Rodgers 36J24-214 Replacement Gas Valve L44-644 New Open Box. Please see photos for details.
Thanks for visiting my store!
Comotiger-Collections
The Emerson White-Rodgers 36J24-214 Combination Gas Valve is a highly versatile, single-stage, slow-opening replacement gas valve designed for central furnaces, boilers, and unit heaters. It features a compact footprint and serves as a universal replacement for many older White-Rodgers series models, such as the 36F and 36G series. [1, 2, 3, 4, 5]Core Technical SpecificationsThe valve is meticulously designed to meet the demands of modern high-efficiency heating systems. Authority technical documents and manufacturer listings outline the following technical parameters: [1, 2]

• Ignition Compatibility: Engineered specifically for non-piloted intermittent ignition systems, including Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI).
• Electrical Rating: Operates on a standard 24 VAC (50/60 Hz) power supply with a low current draw of 0.28 A to 0.3 A.
• Connection Size: Standard 1/2" x 1/2" NPT inlet and outlet ports.
• Heating Capacity: Capable of handling up to 140,000 BTU/hr for Natural Gas and up to 226,800 BTU/hr for Liquid Propane (LP).
• Regulator Setting: Factory-calibrated to a standard 3.5" W.C. for natural gas, with adjustable regulator ranges built into the unit.
• Temperature Range: Safe for ambient operations starting at -40°F up to 175°F.
• Mounting Position: Multi-position capability allows it to be mounted in any direction, including completely upside down.
