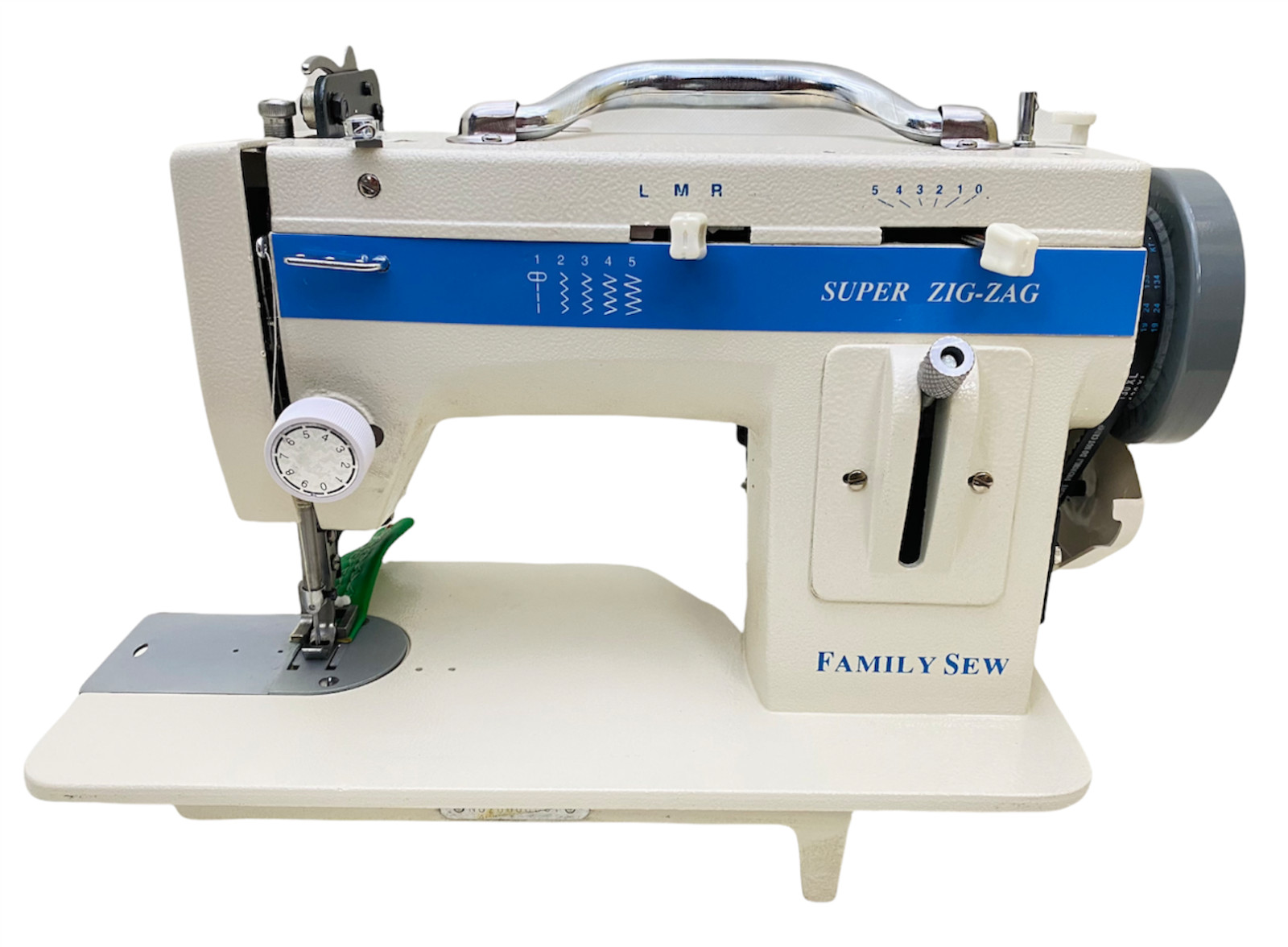

Portable Straight Reverse and Zig Zag stitches Walking Foot, 16.5x7" Bed Size, 150Watt 1.5Amp Motor 1/4" Foot Lift, 4SPI Stitches Per Inch, 800 SPM, 2 Belt Dual Drive, Weighs 40Lbs - All Metal.
The FS288 zig zag walking foot machine is a remarkably versatile machine. Designed for serious hobbyists, and small businesses, the FS288 does so much, for so little. The FS288 stitch quality is comparable to an industrial machine, for a fraction of the price plus the added bonus of a zig zag stitch, now that's value!
All of the convenience features are standard to make your job easier: reverse lever, rotary hook, and of course, Yamata's trusted reputation for building quality, long lasting equipment.
Similar as Sailrite,Reliable,TuffSew and Thompson Both zigzag and straight stitch can be operated in reverse with the lever on the right The FS288 zigzag walking foot machine is a remarkably versatile machine. Designed for serious hobbyists, and small businesses, the FS288 does so much, for so little. The FS288 stitch quality is comparable to an industrial machine, for a fraction of the price plus the added bonus of a zig-zag stitch, now that's value! All of the convenience features are standard to make your job easier: reverse lever, oscillating shuttle hook. 150 Watt, 1.5 Amp, 110 Volt, 60 Cycle Motor, 8000RPM Specifications:
High lift walking foot with 1/4" clearance underneath the foot Sews Up To 1/4" Compressed Fabric 4 stitches per inch maximum stitch length Up To 900 Stitches Per Minute Toothed Belts And Pulleys Cleated positraction belts combine with new geared hand wheel pulley, geared reduction pulley and geared motor pulley to eliminate slipping Special heavy duty motor attached up to 150 watts, 1.5 amps, twice as much as home sewing machines Top And Bottom Feed Spring loaded reverse Uses 16 class welt foot Fabric Presser Foot Pressure Adjustment All-Metal Construction Portable Walking Foot Sewing Machine Electronic Foot Control - Easier to control your speed with the
new electronic foot control. It allows you to adjust speed with electronic precision. Fits regular portable case or cabinets (not included) In straight stitch mode, a needle positioning lever allows for movement of the needle left, right, and center Uses standard upholstery needles: 135x17, size 22, 20, 18, etc. 1 Year Factory Defect WARRANTY !
TECHINICAL SPECIFICATIONS
Maximum sewing speed: 6600rpm
Stitch length: 0-6 mm
Stitch width: 5-7 mm
Presser foot lift: By hand 8 mm
Needle size: 135 x 17 #9-#22
Work space: 16.5x7" Bed Size
Hook type: Oscillating shuttle Lubrication:
Manual Included Accessories
Needles Extra Bobbins Oil Instruction manual Warranty card Screw drive
Product Details:
Max. Sewing Speed: 900
Max. Sewing Thickness: 1/4
Stitch Formation: zig-zag
Power: 110 V
Stitch Length: Uses 16 class welt foot
Mechanical Configuration: Flat-Bed
Feed Mechanism: Manual
Type: Semi-Professional
