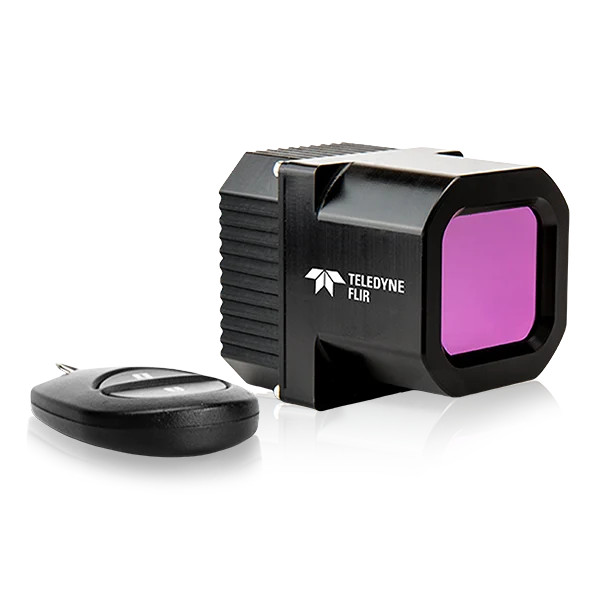

FLIR Boson ADK, 640 x 512 Resolution, GMSL-Fakra port, 50° FOV
Model: 40640U050-6PAAX
Has Fakra port and 3 meter cable included
Pro grade optics, 60fps
KEY SPECS
Resolution 640 x 512
Sensitivity [NEdT] ≤50 mK
Pixel Pitch 12 µm
Specifications
Radiometry
Temperature Measurement
No
Imaging & Optical
Data Format
Software-selectable: 16-bit TIFF (raw sensor format) or compressed 8-bit
FOV - Horizontal
50°
Frame Rate
Full Frame (30 & 60 Hz selectable), 9 Hz optional
Pixel Pitch
12 µm
Resolution
640 x 512
Sensitivity [NEdT]
< 50 mK
Spectral Band
8-14 microns (LWIR)
Thermal Imaging Detector
Boson™ – Uncooled VOx microbolometer
Electrical
Input Voltage
Camera: 5 VDC (USB2) or 12 VDC (GMSL)
Window Heater: 12 VDC (USB2) or 12 VDC (GMSL)
Power Consumption
1 W (without heater); ~4 W average and 12 W maximum (with heater)
Mechanical
Dimensions (W x H x D)
35 × 40 × 47 mm (1.38 × 1.57 × 1.8 in)
Weight
~100 gm (3.5 oz)
Environmental & Approvals
Environmental Protection
IP67
Operating Temperature Range
-40°C to +75°C (-40°F to +167°F)
Shock
1,500 G @ 0.4 msec
Solar protection
Yes (sun will not damage sensor)
